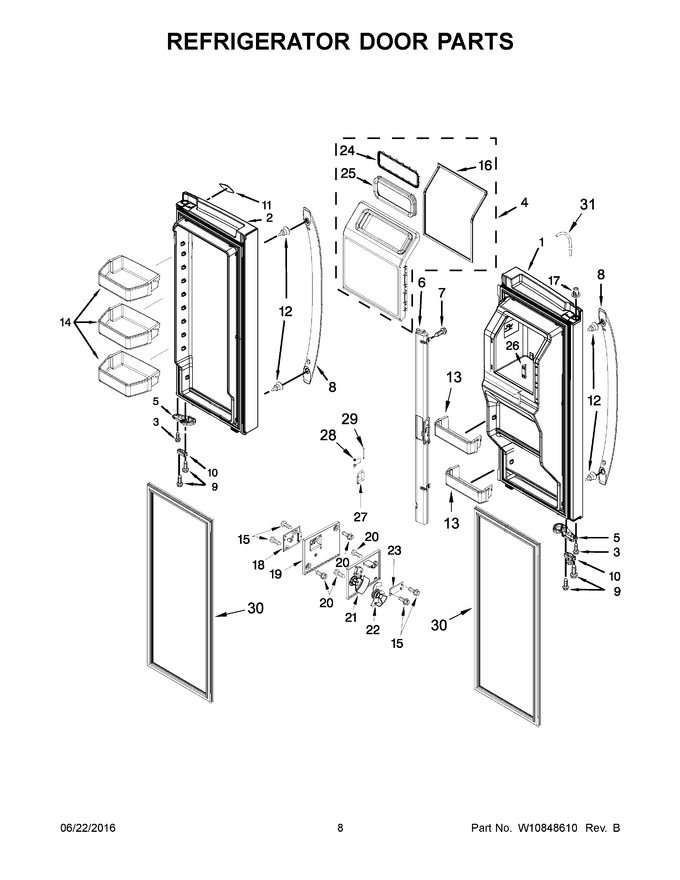

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10735699 | Door, Left (white) (Replaces: W10735699) |
|
$ 1,184.41 | |||||
| 2 | LW10624492 | Door, Right (white) (Replaces: W10624492) |
|
$ 1,138.01 | |||||
| 3 | WPW10464016 | Screw (Replaces: W10464016) |
|
$ 11.65 | |||||
| 4 | W11171728 | Assembly, Ice Door (Replaces: W10549592) |
|
$ 194.80 | |||||
| 5 | W10904595 | Latch, Door (left Hand) (Replaces: W10712952) |
|
$ 16.24 | |||||
| 6 | W10846151 | Mullion, Door (white) (Replaces: W10698195) |
|
$ 126.59 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 8 | W10899551 | Handle, Door (stainless) (Replaces: W10713676) |
|
Immediately | $ 169.94 | ||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 10 | W11687672 | Bumper, Door (white) (Replaces: W10407175) |
|
$ 13.44 | |||||
| 11 | WPW10391355 | Nameplate (white) (Replaces: W10391355) |
|
$ 68.09 | |||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 13 | W10838874 | Assembly, Trivet (Replaces: W10555428) |
|
Immediately | $ 77.66 | ||||
| 14 | W10913631 | Bucket, Gallon (Replaces: W10724688) |
|
$ 105.05 | |||||
| 15 | 2006254 | Screw (Replaces: 12993001) |
|
$ 12.41 | |||||
| 16 | W11624997 | Gasket-ice (Replaces: W10347085) |
|
$ 62.47 | |||||
| 17 | W10562834 | Clip, Tube (Replaces: W10245516) |
|
$ 14.09 | |||||
| 18 | W11813704 | Board, Receiver Circuit (Replaces: W10518658) |
|
Immediately | $ 296.07 | ||||
| 19 | W11763407 | Cover, Receiver (Replaces: W10258510) |
|
$ 40.05 | |||||
| 20 | 2006254 | Screw (Replaces: 489214) |
|
$ 12.41 | |||||
| 21 | W10258502 | Cover, Emitter |
|
$ 80.77 | |||||
| 22 | W10258540 | Slide, Icemaker Shut Off |
|
$ 10.04 | |||||
| 23 | W10870822 | Board, Emitter Circuit (Replaces: W10832970) |
|
Immediately | $ 205.25 | ||||
| 24 | WPW10400825 | Retainer, Ice Chute (Replaces: W10400825) |
|
$ 29.09 | |||||
| 25 | WPW10347087 | Gasket, Ice Chute (Replaces: W10347087) |
|
$ 44.07 | |||||
| 26 | W11684620 | Vent, Thermistor (Replaces: W10646855) |
|
Immediately | $ 20.84 | ||||
| 27 | WPW10258520 | Door, Emitter (Replaces: W10258520) |
|
$ 71.69 | |||||
| 28 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 82.29 | |||||
| 29 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 16.79 | |||||
| 30 | W11678967 | Gasket, Door (white) (Replaces: W10873940) |
|
$ 255.64 | |||||
| 31 | WPW10499015 | Tube, Water (Replaces: W10499015) |
|
$ 115.89 | |||||
| 10A | W10407187 | Bumper, Door (black) |
|
$ 43.51 | |||||
| 10B | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 21.02 | ||||
| 11A | WPW10393265 | Nameplate (grey) (Replaces: W10393265) |
|
Immediately | $ 70.71 | ||||
| 1A | LW10735691 | Door, Left (black) (Replaces: W10735691) |
|
$ 1,115.93 | |||||
| 1B | W10735693 | Door, Left (stainless) |
|
- | |||||
| 2A | LW10341282 | Door, Right (black) (Replaces: W10341282) |
|
$ 1,079.65 | |||||
| 2B | LW10341284 | Door, Right (stainless) (Replaces: W10341284) |
|
$ 1,100.87 | |||||
| 30A | W10861004 | Gasket, Door (black) (Replaces: W10873939) |
|
$ 298.05 | |||||
| 30B | W10407212 | Gasket, Door (grey) (Replaces: W10873938) |
|
Immediately | $ 296.27 | ||||
| 5A | W11212164 | Latch, Door (right Hand) (Replaces: W10712953) |
|
$ 15.83 | |||||
| 6A | W10698196 | Mullion, Door (black) |
|
$ 130.55 | |||||
| 6B | W10806457 | Mullion, Door (grey) (Replaces: W10698199) |
|
Immediately | $ 255.29 |
