01 - Cover Sheet
02 - Oven Parts
03 - Oven Door Parts

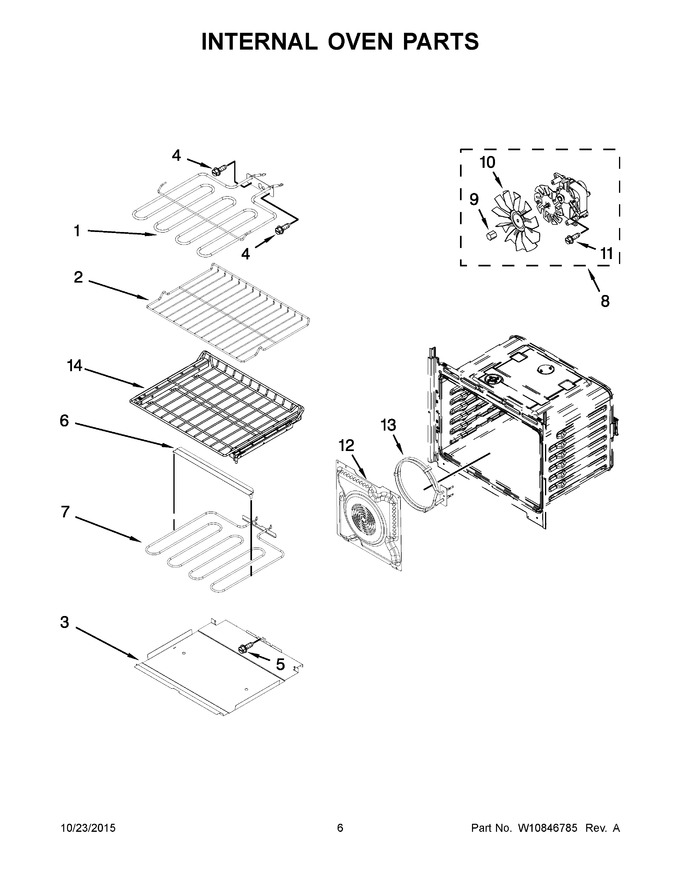

04 - Internal Oven Parts
05 - Control Panel Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10260252 | Element, Broil (Replaces: W10260252) |
|
Immediately | $ 119.55 | ||||
| 2 | WPW10554529 | Rack, Oven (Replaces: W10282968) |
|
$ 155.92 | |||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 176.25 | |||||
| 4 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 12.81 | |||||
| 5 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 6 | W10282957 | Crossbar, Hidden Bake Tray |
|
$ 42.72 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W10546517) |
|
Immediately | $ 131.81 | ||||
| 8 | W10860984 | Fan, Convection (Replaces: W10722667) |
|
Immediately | $ 191.93 | ||||
| 9 | W10794042 | Nut, Acorn (Replaces: W10631504) |
|
$ 11.83 | |||||
| 10 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 79.80 | ||||
| 11 | W10850807 | Screw (Replaces: W10720084) |
|
$ 6.99 | |||||
| 12 | W10359278 | Baffle, Convection |
|
$ 224.30 | |||||
| 13 | WPW10260248 | Ring, Element (Replaces: W10260248) |
|
$ 278.70 | |||||
| 14 | W10282974 | Rack, Sliding |
|
- |
