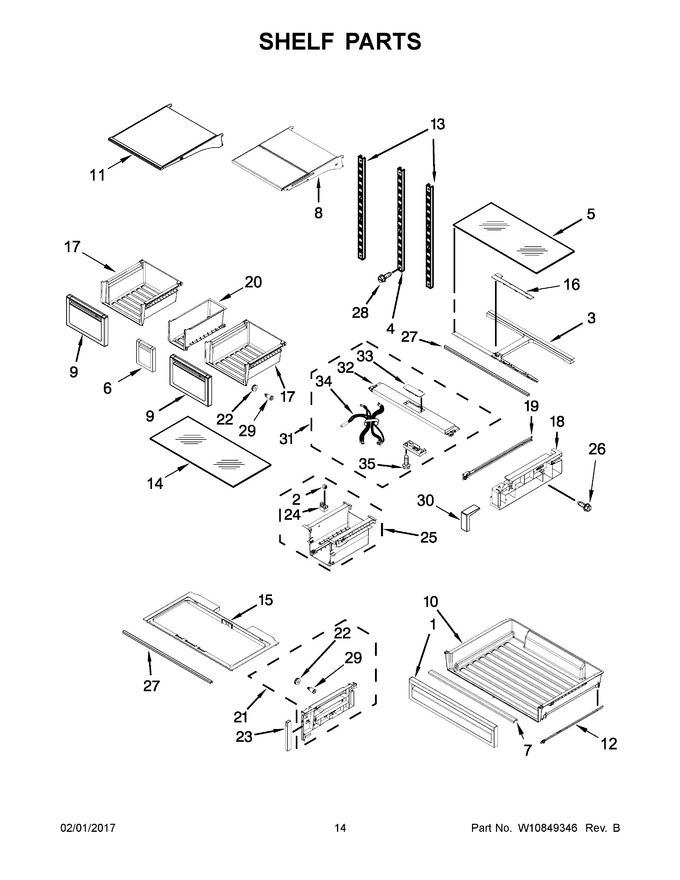

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10510417 | Front, Pantry (Replaces: W10510417) |
|
$ 95.04 | |||||
| 2 | W10248789 | Roller, Center |
|
$ 17.43 | |||||
| 3 | WPW10489978 | Support, Pantry (Replaces: W10489978) |
|
$ 50.62 | |||||
| 4 | WPW10248516 | Ladder, Center (Replaces: W10248516) |
|
$ 32.30 | |||||
| 5 | W11092486 | Glass, Pantry (Replaces: W10893769) |
|
$ 226.74 | |||||
| 6 | W11218695 | Crisper, Front (Replaces: W10423520) |
|
$ 292.80 | |||||
| 7 | W10398002 | Handle, Pantry |
|
$ 107.73 | |||||
| 8 | WPW10401836 | Shelf, Tuck (Replaces: W10401836) |
|
$ 246.44 | |||||
| 9 | WPW10688114 | Assembly, Crisper Front (Replaces: W10688114) |
|
Immediately | $ 158.75 | ||||
| 10 | WPW10654844 | Pan, Pantry (Replaces: W10498901) |
|
Immediately | $ 135.50 | ||||
| 11 | WPW10402687 | Shelf, Fixed (Replaces: W10402687) |
|
$ 196.86 | |||||
| 12 | W10508330 | Runner, Roller (left Hand) |
|
- | |||||
| 13 | W11690684 | Ladder, Side (Replaces: W10372170) |
|
$ 45.56 | |||||
| 14 | W11092501 | Glass, Crisper (Replaces: W10893768) |
|
$ 220.05 | |||||
| 15 | W10717569 | Cover, Crisper |
|
- | |||||
| 16 | W10490266 | Support, Pantry Cover (includes Gasket) |
|
$ 78.62 | |||||
| 17 | W10850377 | Pan, Crisper (Replaces: W10387757) |
|
Immediately | $ 123.40 | ||||
| 18 | WPW10498906 | Sideplate, Pantry (left Hand) (Replaces: W10498906) |
|
$ 118.84 | |||||
| 19 | W10508327 | Slide, Pantry (left Hand) |
|
$ 270.96 | |||||
| 20 | WPW10387778 | Pan, Crisper (Replaces: W10387778) |
|
$ 114.73 | |||||
| 21 | W11763411 | Sideplate, Crisper (left Hand) (Replaces: W10549601) |
|
$ 58.32 | |||||
| 22 | WPW10248544 | Roller, Guide (Replaces: W10248544) |
|
$ 7.28 | |||||
| 23 | W10467415 | Plate, Crisper Front |
|
$ 65.06 | |||||
| 24 | W10530314 | Housing, Roller |
|
$ 10.22 | |||||
| 25 | W10662015 | Assembly, Center Crisper Support |
|
$ 78.94 | |||||
| 26 | W10185612 | Screw |
|
$ 6.37 | |||||
| 27 | WPW10236512 | Support, Front (Replaces: W10236512) |
|
$ 120.65 | |||||
| 28 | W10423560 | Screw |
|
- | |||||
| 29 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 32.89 | |||||
| 30 | W10467416 | Plate, Pantry Front |
|
$ 34.43 | |||||
| 31 | W11044862 | Assembly, Pantry Front Cover (includes Led Assembly) (Replaces: W10834495) |
|
$ 287.66 | |||||
| 32 | W10398004 | Cover, Top |
|
- | |||||
| 33 | W11092502 | Assembly, User Interface (Replaces: W10834487) |
|
- | |||||
| 34 | W10668846 | Assembly, Pantry Wire (includes Thermistor) |
|
Immediately | $ 113.00 | ||||
| 35 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 12A | W10508328 | Runner, Roller (right Hand) |
|
- | |||||
| 18A | WPW10498902 | Sideplate, Pantry (right Hand) (Replaces: W10498902) |
|
$ 62.48 | |||||
| 19A | W10508326 | Slide, Pantry (right Hand) |
|
$ 280.33 | |||||
| 21A | W10549602 | Sideplate, Crisper (right Hand) |
|
$ 113.56 |
