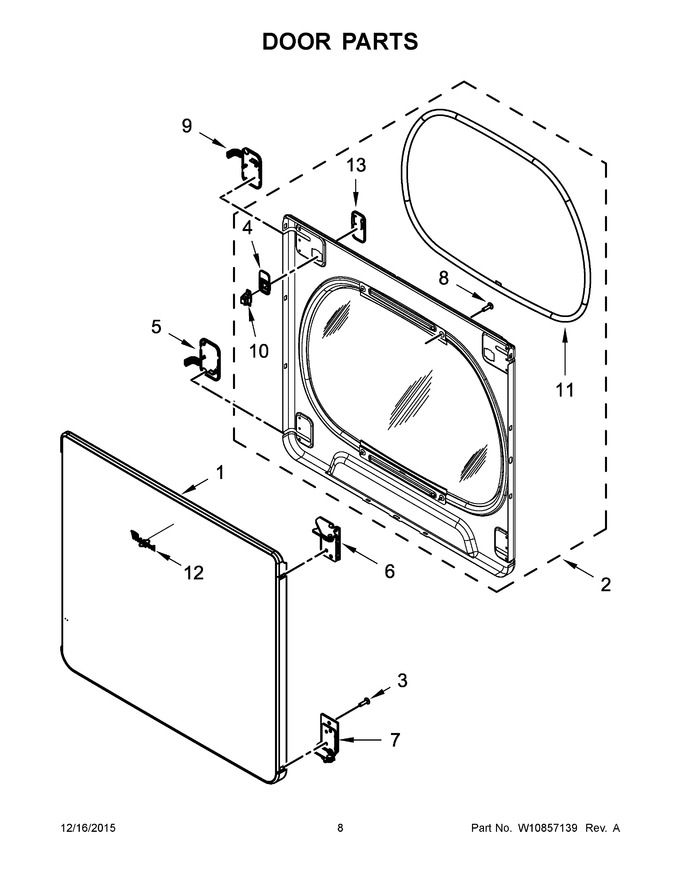

05 - Door Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10669027 | Assembly, Outer Door (chrome Shadow) |
|
$ 476.19 | |||||
| 2 | W10615000 | Assembly, Inner Door (chrome Shadow) |
|
$ 244.59 | |||||
| 3 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 6.80 | ||||
| 4 | W10669023 | Bezel, Door Catch (chrome Shadow) |
|
$ 21.28 | |||||
| 5 | W10631413 | Hinge Cover, Bottom (chrome Shadow) |
|
- | |||||
| 6 | W10850024 | Hinge Assembly - Blade, Door (upper) (Replaces: W10767920) |
|
$ 76.98 | |||||
| 7 | W10850044 | Hinge Assembly - Blade, Door (lower) (Replaces: W10767921) |
|
$ 76.88 | |||||
| 8 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.30 | |||||
| 9 | W10631412 | Hinge Cover, Top (chrome Shadow) |
|
$ 25.76 | |||||
| 10 | W11429587 | Assembly, Door Catch (Replaces: W10610880) |
|
Immediately | $ 23.90 | ||||
| 11 | W10763835 | Seal, Door |
|
Immediately | $ 116.81 | ||||
| 12 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 13 | W10669024 | Catch, Door Cover (chrome Shadow) |
|
$ 23.09 |
