01 - Cover Sheet

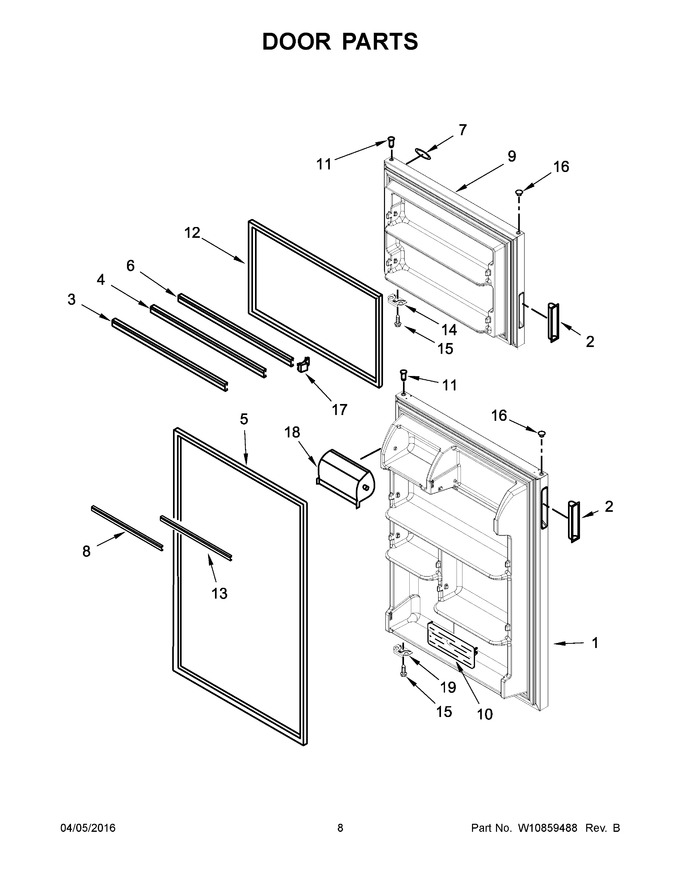

02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10680725 | Refrigerator Door (includes Door Gasket & Door Handle) (black) (Replaces: W10680725) |
|
$ 649.71 | |||||
| 2 | W10174743 | Handle, Cup (black) |
|
$ 14.34 | |||||
| 3 | W11126055 | Trim, Door (Replaces: W10719702) |
|
Immediately | $ 114.61 | ||||
| 4 | W11170805 | Trim, Door (Replaces: W10678772) |
|
$ 114.61 | |||||
| 5 | W11240749 | Door Gasket, Magnetic (black) (Replaces: W10678768) |
|
Immediately | $ 270.62 | ||||
| 6 | W11097831 | Trim, Door (Replaces: W10719703) |
|
$ 11.07 | |||||
| 7 | W11428492 | Badge (Replaces: W10200425) |
|
$ 75.21 | |||||
| 8 | W11129820 | Trim, Door (Replaces: W10719700) |
|
Immediately | $ 114.61 | ||||
| 9 | LW10680728 | Freezer Door (includes Door Gasket & Door Handle) (black) (Replaces: W10680728) |
|
$ 622.79 | |||||
| 10 | WP2188234 | Door, Flip Up (Replaces: 2188234) |
|
Immediately | $ 54.28 | ||||
| 11 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 7.33 | |||||
| 12 | W11229610 | Door Gasket, Magnetic (black) (Replaces: W10667843) |
|
Immediately | $ 270.62 | ||||
| 13 | W11106290 | Trim, Shelf Door (Replaces: W10719701) |
|
Immediately | $ 114.61 | ||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 16 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
Immediately | $ 21.79 | ||||
| 17 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.93 | ||||
| 18 | WP2218113 | Door, Compartment (Replaces: 2218113) |
|
Immediately | $ 47.56 | ||||
| 19 | W11402852 | Bracket, Door Stop (Replaces: W10638692) |
|
$ 61.93 |
