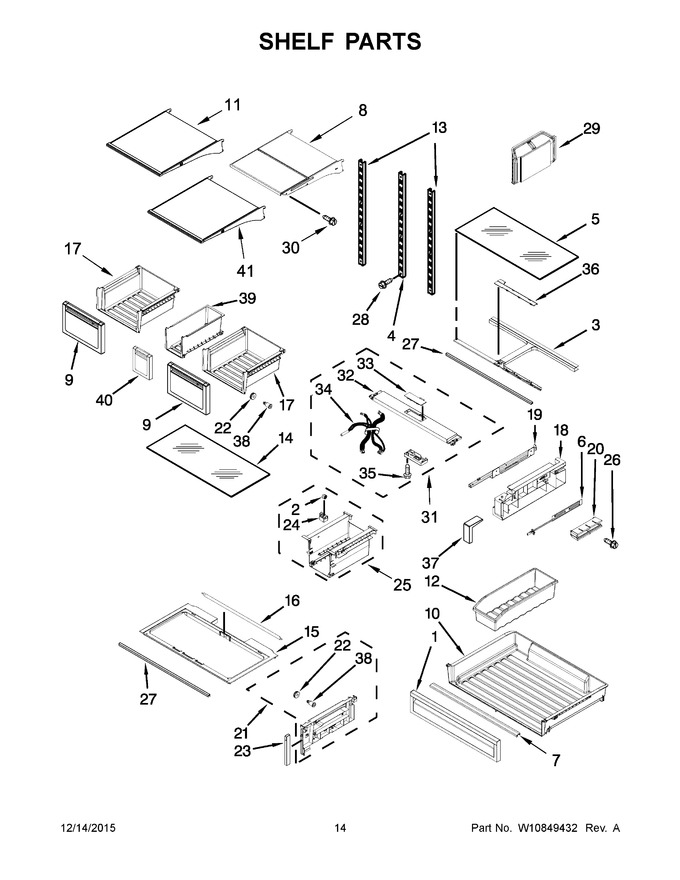

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10510417 | Front, Pantry (Replaces: W10510417) |
|
$ 95.04 | |||||
| 2 | W10248789 | Roller, Center |
|
$ 17.43 | |||||
| 3 | WPW10489978 | Support, Pantry (Replaces: W10489978) |
|
$ 50.62 | |||||
| 4 | W10467461 | Ladder, Center (Replaces: W10719661) |
|
Immediately | $ 47.08 | ||||
| 5 | WPW10628815 | Glass, Pantry (Replaces: W10628815) |
|
$ 133.31 | |||||
| 6 | W10342618 | Heater, Pantry |
|
$ 79.25 | |||||
| 7 | W10467379 | Handle, Pantry |
|
$ 108.92 | |||||
| 8 | WPW10738974 | Assembly, Tuck Shelf (Replaces: W10738974) |
|
$ 353.58 | |||||
| 9 | W10839427 | Front, Crisper (Replaces: W10674808) |
|
$ 86.91 | |||||
| 10 | WPW10654844 | Pan, Pantry (Replaces: W10654844) |
|
Immediately | $ 135.50 | ||||
| 11 | W10753418 | Assembly, Lighted Shelf |
|
- | |||||
| 12 | W10467369 | Divider, Pantry |
|
$ 24.81 | |||||
| 13 | W10719660 | Ladder, Side |
|
$ 176.95 | |||||
| 14 | W10628814 | Glass, Crisper |
|
$ 56.29 | |||||
| 15 | WPW10407377 | Cover, Crisper (Replaces: W10407377) |
|
$ 193.73 | |||||
| 16 | WPW10248967 | Support, Rear (Replaces: W10248967) |
|
$ 71.18 | |||||
| 17 | W10850377 | Pan, Crisper (Replaces: W10626157) |
|
Immediately | $ 123.40 | ||||
| 18 | WPW10498906 | Sideplate, Pantry (left Hand) (Replaces: W10498906) |
|
$ 118.84 | |||||
| 19 | W10499289 | Slide, Pantry (left Hand) |
|
$ 319.27 | |||||
| 20 | W10432697 | Insulation, Sideplate |
|
$ 13.17 | |||||
| 21 | W11763411 | Plate, Crisper (left Hand) (Replaces: W10549601) |
|
$ 58.32 | |||||
| 22 | WPW10248544 | Roller, Guide (Replaces: W10248544) |
|
$ 7.28 | |||||
| 23 | W10467415 | Plate, Crisper Front |
|
$ 65.06 | |||||
| 24 | W10530314 | Housing, Roller |
|
$ 10.22 | |||||
| 25 | W10662015 | Assembly, Center Crisper Support |
|
$ 78.94 | |||||
| 26 | WP8281136 | Screw (Replaces: 8281136) |
|
$ 6.57 | |||||
| 27 | WPW10236512 | Support, Front (Replaces: W10236512) |
|
$ 120.65 | |||||
| 28 | WPW10666373 | Screw (Replaces: W10666373) |
|
$ 18.77 | |||||
| 29 | W10593207 | Assembly, Produce Preserver |
|
- | |||||
| 30 | W10421495 | Screw |
|
$ 17.18 | |||||
| 31 | WPW10732686 | Assembly, Pantry Front Cover (includes Led Assembly) (Replaces: W10732686) |
|
$ 360.98 | |||||
| 32 | W10398004 | Cover, Top |
|
- | |||||
| 33 | WPW10565996 | Assembly, User Interface (Replaces: W10565996) |
|
$ 270.97 | |||||
| 34 | W10610324 | Harness, Wire (includes Thermistor) |
|
$ 116.96 | |||||
| 35 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 36 | W10490266 | Support, Pantry Cover |
|
$ 78.62 | |||||
| 37 | W10467416 | Plate, Pantry Front |
|
$ 34.43 | |||||
| 38 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 32.89 | |||||
| 39 | WPW10387778 | Pan, Crisper (Replaces: W10387778) |
|
$ 114.73 | |||||
| 40 | W10674809 | Front, Crisper |
|
- | |||||
| 41 | WPW10738981 | Assembly, Shelf (Replaces: W10738981) |
|
$ 247.52 | |||||
| 18A | WPW10498902 | Sideplate, Pantry (right Hand) (Replaces: W10498902) |
|
$ 62.48 | |||||
| 19A | W11759682 | Slide, Pantry (right Hand) (Replaces: W10499294) |
|
$ 62.90 | |||||
| 21A | W10549602 | Plate, Crisper (right Hand) |
|
$ 113.56 |
