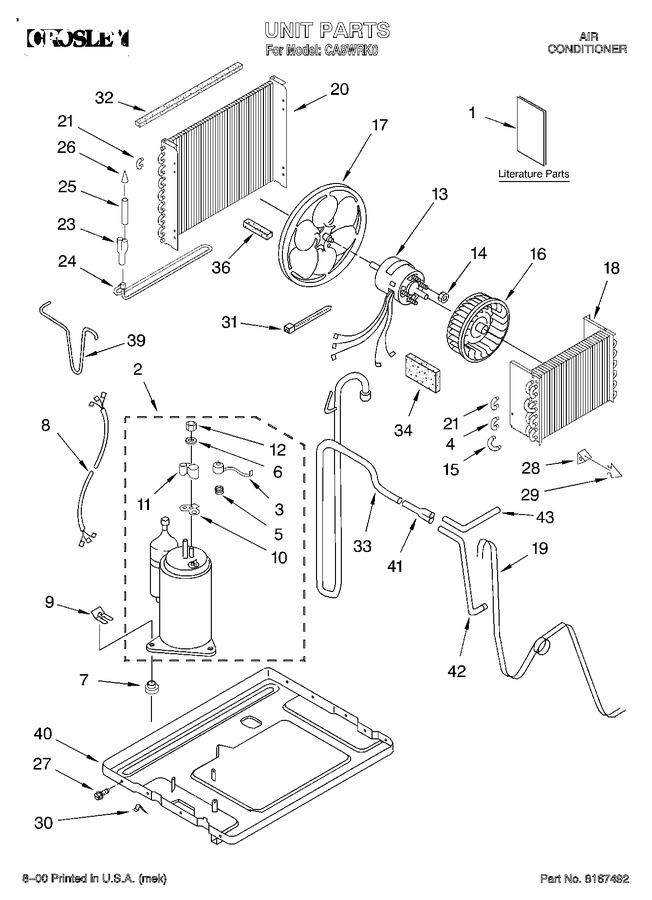

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT1184505		Use & Care Guide		Appelez-nous	-
1	LIT1184562		Energy Guide		Appelez-nous	-
1	LIT8031275		Literature Parts (wiring Diagram)		Appelez-nous	-
2	1157026		Compressor		Appelez-nous	-
3	WP1161170		Overload   (Replaces: 1161170)				$ 84.72
4	8031223		Return Bend, Evaporator		Appelez-nous	-
5	950032		Spring, Overload		Appelez-nous	-
6	950037		Gasket, Nut		Appelez-nous	-
7	950212		Grommet		Appelez-nous	-
8	8031579		Wiring Harness, Compressor		Appelez-nous	-
9	8011446		Clip, Compressor		Appelez-nous	-
10	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
11	WP950036		Cover, Terminal   (Replaces: 950213)				$ 9.83
12	WP950027		Nut, Hex   (Replaces: 950027)				$ 5.20
13	1184411		Motor, Fan		Appelez-nous	-
14	WP488130		Nut, Hex Keps   (Replaces: 488130)				$ 6.59
15	8031224		Return Bend, Evaporator		Appelez-nous	-
16	8031154		Wheel, Blower		Appelez-nous	-
17	1156979		Blade, Fan				$ 61.53
18	8031228		Evaporator		Appelez-nous	-
19	1184679		Tube, Restrictor		Appelez-nous	-
20	8031230		Condenser		Appelez-nous	-
21	8031222		Bend, Return Evaporator (8) Condenser (7)		Appelez-nous	-
23	947364		Tube, Flow Divider		Appelez-nous	-
24	8031238		Tube, Wet Loop		Appelez-nous	-
25	951437		Tube, Outlet (includes No. 26)		Appelez-nous	-
26	49599		Strainer, Tube		Appelez-nous	-
27	488624		Screw, 8-15 X .375		Appelez-nous	-
28	996773		Anticipator, Temperature		Appelez-nous	-
29	475577		Clip, Temperature Anticipator		Appelez-nous	-
30	471088		Clamp, Tube		Appelez-nous	-
31	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
32	1181735		Seal, Condenser Top		Appelez-nous	-
33	1184721		Tube, Suction		Appelez-nous	-
34	1165440		Insulation, Suction Tube		Appelez-nous	-
36	WP854334		Seal, Condenser Bottom   (Replaces: 859600)				$ 12.55
39	8031258		Tube, Discharge		Appelez-nous	-
40	8031331		Base		Appelez-nous	-
41	1159832		Tube, Flow Divider		Appelez-nous	-
42	8031288		Tube, Outlet (bottom)		Appelez-nous	-
43	8031287		Tube, Outlet (top)		Appelez-nous	-
