Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8031120 Cabinet Appelez-nous -
2 469877 Seal, Meeting Rail Appelez-nous -
3 WP3390631 Screw, 10-12 X .375   (Replaces: 309112) Special Order $ 7.43

4 8031293 Channel, Top Appelez-nous -
5 8031303 Curtain ((right Side)) Appelez-nous -
5 8031304 Curtain ((left Side)) Appelez-nous -
6 W10491985 Screw 8-18 X .250   (Replaces: 3196160) In-Stock Immediately $ 6.80

7 488624 Screw, 8-15 X .375 Appelez-nous -
8 8031300 Front Appelez-nous -
9 8031125 Filter Appelez-nous -
10 8031297 Grille, Front Appelez-nous -
11 8031202 Louver Assembly Appelez-nous -
12 WP965173 Screw, 8-18 X .375   (Replaces: 246132) In-Stock Immediately $ 10.68

14 1184589 Escutcheon Appelez-nous -
15 8031121 Knob Special Order $ 29.99

17 476180 Bag, Accessory Appelez-nous -
18 488255 Screw, Wood 8-15 X .750 Appelez-nous -
19 644228 Bracket, Window Lock Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

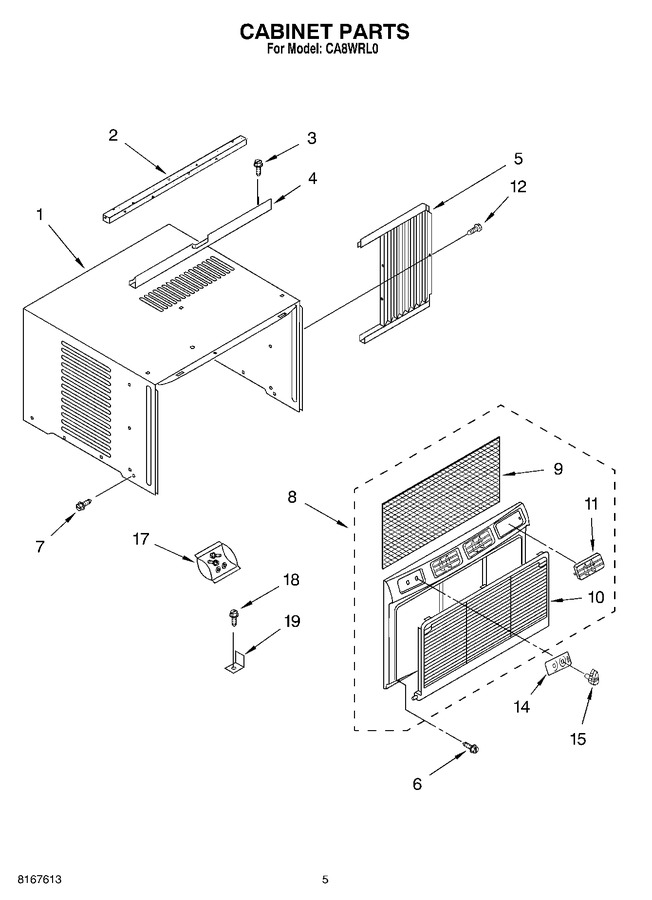

Diagram for CA8WRL0
