SELECT A DIAGRAM

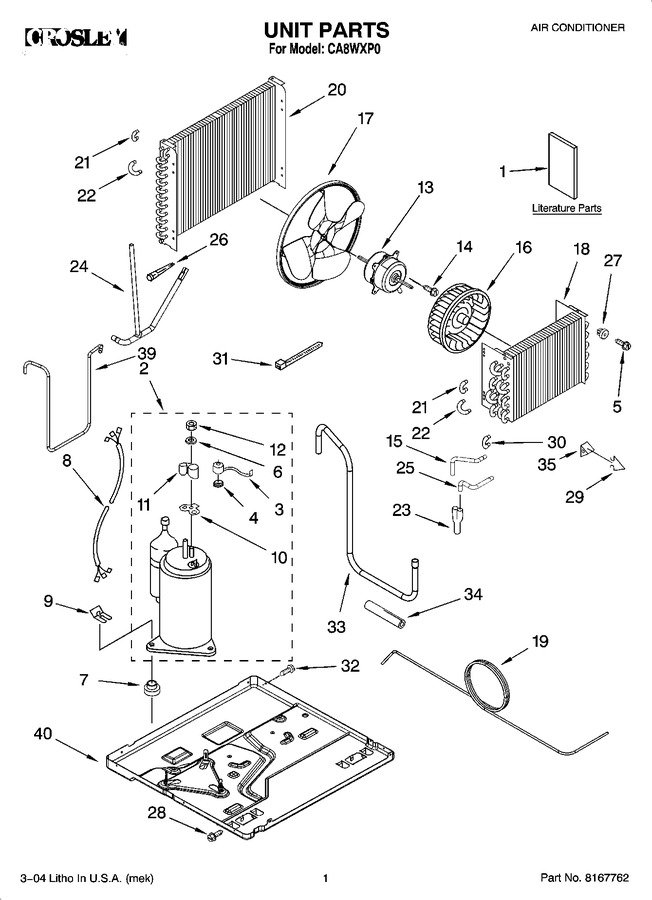

01 - Unit Parts


02 - Air Flow And Control Parts


03 - Cabinet Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8031276		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT1187768		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT1187412		Energy Guide		Appelez-nous	-
2	1187376		Compressor		Appelez-nous	-
3	1187489		Overload		Appelez-nous	-
4	1185795		Spring, Overload		Appelez-nous	-
5	WP489463		Screw   (Replaces: 8533969)				$ 7.43
6	1185794		Washer		Appelez-nous	-
7	950212		Grommet		Appelez-nous	-
8	1187592		Wiring Harness, Compressor		Appelez-nous	-
9	8011446		Clip, Compressor		Appelez-nous	-
10	1185793		Gasket, Terminal Cover		Appelez-nous	-
11	1185792		Cover, Terminal		Appelez-nous	-
12	W10833054		Nut, Hex   (Replaces: 1186030)		Appelez-nous	-
13	1187170		Motor, Fan				$ 181.22
14	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 7.92
15	1187736		Tube, Feeder		Appelez-nous	-
16	1187144		Wheel, Blower		Appelez-nous	-
17	1187142		Blade, Fan		Appelez-nous	-
18	1187156		Evaporator		Appelez-nous	-
19	1187567		Tube, Restrictor		Appelez-nous	-
20	1187215		Condenser		Appelez-nous	-
21	8031223		Bend, Return Evaporator (7) Condenser (9)		Appelez-nous	-
22	8031222		Bend, Return		Appelez-nous	-
23	1159832		Tube, Flow Divider		Appelez-nous	-
24	1187613		Tube, Outlet		Appelez-nous	-
25	1187741		Tube, Feeder		Appelez-nous	-
26	WP1162526		Strainer, Tube   (Replaces: 1162526)				$ 75.98
27	1187495		Grommet, Screw		Appelez-nous	-
28	488624		Screw		Appelez-nous	-
29	475577		Clip, Temperature Anticipator		Appelez-nous	-
30	8031224		Bend, Return		Appelez-nous	-
31	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
32	WP488729		Screw   (Replaces: 487910)			Immediately	$ 7.45
33	1187692		Tube, Suction (includes Item 34)		Appelez-nous	-
34	1187636		Seal, Suction Tube		Appelez-nous	-
35	996773		Anticipator		Appelez-nous	-
39	1187565		Tube, Discharge		Appelez-nous	-
40	1187127		Base		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
