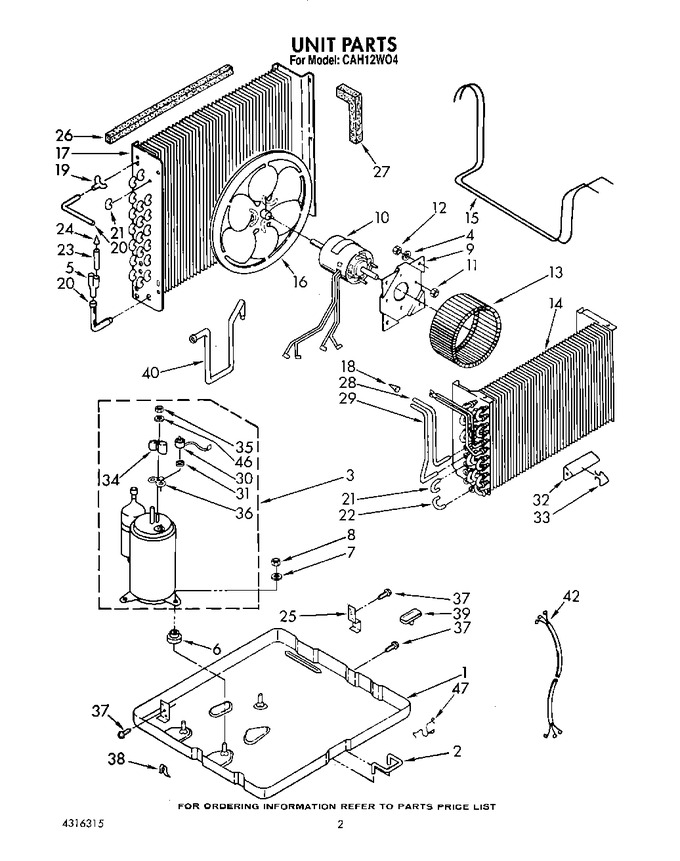

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	951381		Base		Appelez-nous	-
2	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
3	1155366		Compressor		Appelez-nous	-
4	470280		Washer, Repair (4)		Appelez-nous	-
5	947364		Tube, Flow Divider		Appelez-nous	-
6	WP950021		Grommet (3)   (Replaces: 950021)				$ 78.99
7	489108		Washer (3)		Appelez-nous	-
8	858122		Nut, Lock (3)		Appelez-nous	-
9	998024		Plate, Fan Motor		Appelez-nous	-
10	952058		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex Keps 8-32 (4)   (Replaces: 488130)				$ 6.59
12	858122		Nut, Lock		Appelez-nous	-
13	852067		Wheel, Blower		Appelez-nous	-
14	952216		Evaporator		Appelez-nous	-
15	952228		Tube, Restrictor (2) (length 36.0``)		Appelez-nous	-
16	949124		Fan, Blade		Appelez-nous	-
17	952217		Condenser		Appelez-nous	-
18	474013		Strainer, Tube (evaporator)		Appelez-nous	-
19	476078		Bend, Return (3-way)		Appelez-nous	-
20	649800		Tube, 90~ Connect (2)		Appelez-nous	-
21	855199		Bend, Return Condenser (25) Evaporator (15)		Appelez-nous	-
22	854624		Bend, Return Evaporator (4)		Appelez-nous	-
23	951437		Tube, Outlet (includes Illus. 24)		Appelez-nous	-
24	49599		Strainer, Tube (condenser)		Appelez-nous	-
25	647824		Condenser, Support (r.s.)		Appelez-nous	-
26	649609		Seal		Appelez-nous	-
27	649610		Seal		Appelez-nous	-
28	993755		Tube, Outlet (front)		Appelez-nous	-
29	993756		Tube, Outlet (rear)		Appelez-nous	-
30	1156409		Overload		Appelez-nous	-
31	950032		Spring, Overload		Appelez-nous	-
32	484238		Anticipator, Temperature		Appelez-nous	-
33	642080		Clip, Anticipator		Appelez-nous	-
34	WP950036		Cover, Terminal   (Replaces: 950036)				$ 9.83
35	WP950027		Nut, Terminal Cover   (Replaces: 950027)				$ 5.20
36	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
37	WP489069		Screw, S.m.no.8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
38	642684		Clamp, Restrictor Tube		Appelez-nous	-
39	647850		Cup, Condensate Pan		Appelez-nous	-
40	1160938		Tube, Discharge		Appelez-nous	-
42	484136		Harness, Wiring		Appelez-nous	-
46	950037		Gasket, Nut		Appelez-nous	-
47	949634		Clip, Mtg. (2) (base To Front)		Appelez-nous	-
	LIT1161998		Guide, Use And Care		Appelez-nous	-
	LIT1160882		Sheet, Tech		Appelez-nous	-
	LIT1161999		Installation Instructions		Appelez-nous	-
	LIT4316315		List, Repair Parts		Appelez-nous	-
	LIT1160881		Wiring Diagram		Appelez-nous	-
