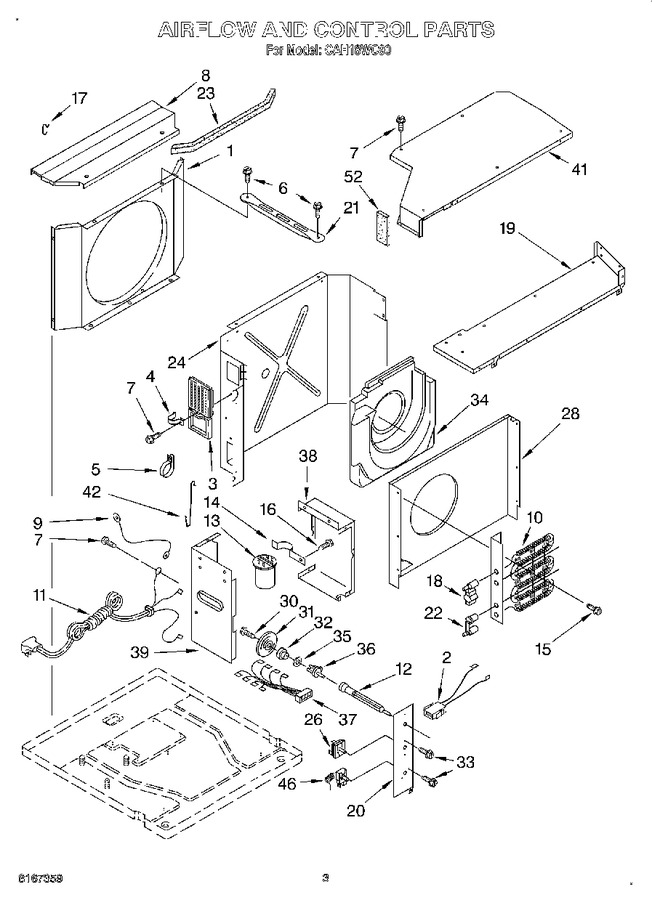

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1157403		Shroud, Condenser		Appelez-nous	-
2	1162061		Harness, Heater		Appelez-nous	-
3	1160652		Door, Air		Appelez-nous	-
4	1160653		Spring, Door		Appelez-nous	-
5	1163775		Clamp, Wiring		Appelez-nous	-
6	WP308685		Screw No.10 X 1/2   (Replaces: 488720)			Immediately	$ 7.08
7	WP489069		Screw No.8-1/2   (Replaces: 488480)			Immediately	$ 7.56
8	1157407		Top, Condenser		Appelez-nous	-
9	856094		Wire, Ground		Appelez-nous	-
10	1182568		Element, Heating		Appelez-nous	-
11	1167646		Cord, Appliance		Appelez-nous	-
12	1161504		Control, Shaft		Appelez-nous	-
13	1167531		Capacitor		Appelez-nous	-
14	1167611		Bracket, Capacitor		Appelez-nous	-
15	WP489069		Screw, 8-18 X .375   (Replaces: 1157158)			Immediately	$ 7.56
16	WP488787		Screw 8 X 1/2   (Replaces: 488886)				$ 10.13
17	1164511		Clip, Shroud (2)		Appelez-nous	-
18	4388361		Limit, Switch		Appelez-nous	-
19	1168484		Evap. Shroud Top		Appelez-nous	-
20	1165610		Panel, Control		Appelez-nous	-
21	1166169		Support, Unit (2)		Appelez-nous	-
22	4388360		Link, Fuse		Appelez-nous	-
23	1158732		Seal, Shroud		Appelez-nous	-
24	1161706		Dividing Wall		Appelez-nous	-
26	1167099		Switch Rotary		Appelez-nous	-
28	1182636		Shroud Assembly, Evaporator		Appelez-nous	-
30	489092		Screw, 8-15 X 5/8		Appelez-nous	-
31	647882		Cam, Exhaust		Appelez-nous	-
32	647879		Bushing, Shaft		Appelez-nous	-
33	488734		Screw, 6-32 X .175 (2)		Appelez-nous	-
34	1160657		Housing, Air		Appelez-nous	-
35	1161313		Washer, Spring		Appelez-nous	-
36	854369		Shaft, Control Exhaust		Appelez-nous	-
37	1167527		Harness, Wiring (control Box)		Appelez-nous	-
38	1161714		Control Box (r.s.)		Appelez-nous	-
39	1164516		Control Box (l.s.)		Appelez-nous	-
41	1168477		Cover, Top		Appelez-nous	-
42	1161333		Wire, Control Exhaust		Appelez-nous	-
46	1155801		Control, Temperature		Appelez-nous	-
52	1162616		Seal, Anti-rub		Appelez-nous	-
