SELECT A DIAGRAM

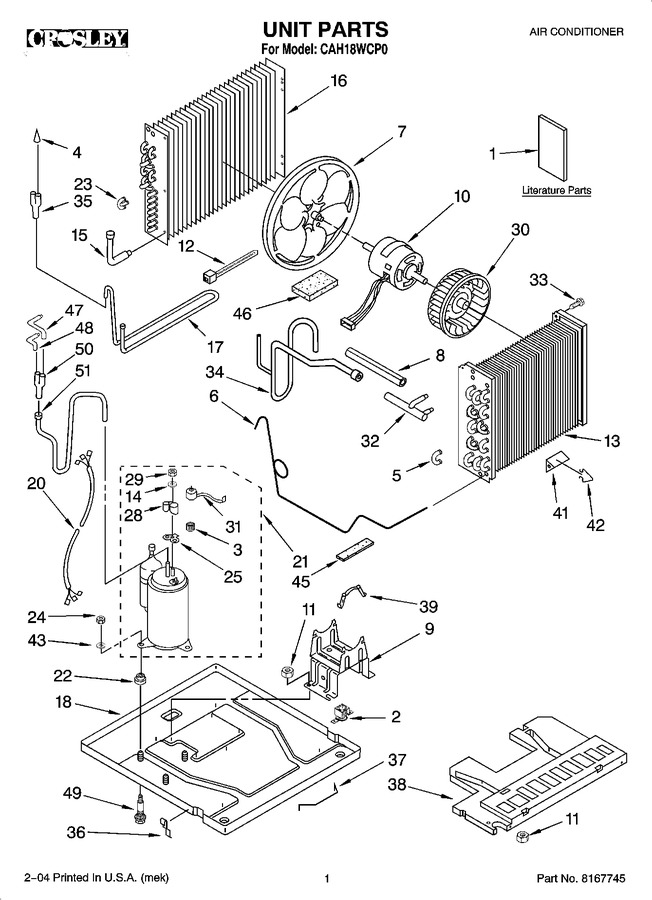

01 - Unit Parts


02 - Airflow And Control Parts


03 - Cabinet Parts


04 - Optional Parts (not Included)


05 - Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT1186898		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT8011287		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT1187251		Energy Guide		Appelez-nous	-
2	1187761		Valve, Drain Pan		Appelez-nous	-
3	1185795		Spring, Overload		Appelez-nous	-
4	49599		Strainer, Tube		Appelez-nous	-
5	855199		Bend, Return		Appelez-nous	-
6	1185687		Tube, Restrictor (2)		Appelez-nous	-
7	1158665		Blade, Fan (condenser)		Appelez-nous	-
8	1185481		Seal, Suction Tube		Appelez-nous	-
9	1160672		Bracket, Fan Motor		Appelez-nous	-
10	1186602		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex   (Replaces: 488130)				$ 6.59
12	WPW10339879		Tie, Cable   (Replaces: 1159130)				$ 7.47
13	1186214		Evaporator		Appelez-nous	-
14	1185794		Gasket, Nut		Appelez-nous	-
15	1155596		Tube, Wet Loop Connect		Appelez-nous	-
16	1185512		Condenser		Appelez-nous	-
17	1185519		Wet, Loop		Appelez-nous	-
18	1185852		Base		Appelez-nous	-
20	1186605		Harness, Wiring (compressor)		Appelez-nous	-
21	1186222		Compressor		Appelez-nous	-
22	WP950021		Grommet (3)   (Replaces: 950021)				$ 78.99
23	1156107		Return Bend 3-way		Appelez-nous	-
24	858121		Locknut (3)		Appelez-nous	-
25	1185793		Gasket, Terminal Cover		Appelez-nous	-
28	1185792		Cover, Terminal		Appelez-nous	-
29	W10833054		Nut, Terminal Cover   (Replaces: 1186030)		Appelez-nous	-
30	1163783		Wheel, Blower (evaporator)				$ 70.86
31	1186682		Overload		Appelez-nous	-
32	1186213		Manifold, Suction		Appelez-nous	-
33	WP489069		Screw, 8-15 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
34	1186182		Tube, Suction		Appelez-nous	-
35	947364		Tube, Flow Divider		Appelez-nous	-
36	471088		Clamp (2)		Appelez-nous	-
37	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
38	1185843		Pan, Drain		Appelez-nous	-
39	WPY015825		Clip, Motor (2)   (Replaces: 1157015)				$ 22.65
41	1166782		Anticipator		Appelez-nous	-
42	642080		Clip, Anticipator		Appelez-nous	-
43	W11236646		Washer (3)   (Replaces: 1160880)			Immediately	$ 13.26
45	1163759		Seal, Restrictor Tube		Appelez-nous	-
46	1182480		Putty, Sound Dampener		Appelez-nous	-
47	1186002		Tube, Feeder		Appelez-nous	-
48	1186003		Tube, Feeder		Appelez-nous	-
49	1165674		Bolt, Compressor		Appelez-nous	-
50	1159832		Tube, Flow Divider		Appelez-nous	-
51	1186245		Tube, Discharge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
