SELECT A DIAGRAM

02 - Unit, Lit/optional


03 - Air Flow And Control


04 - Cabinet


05 - Optional

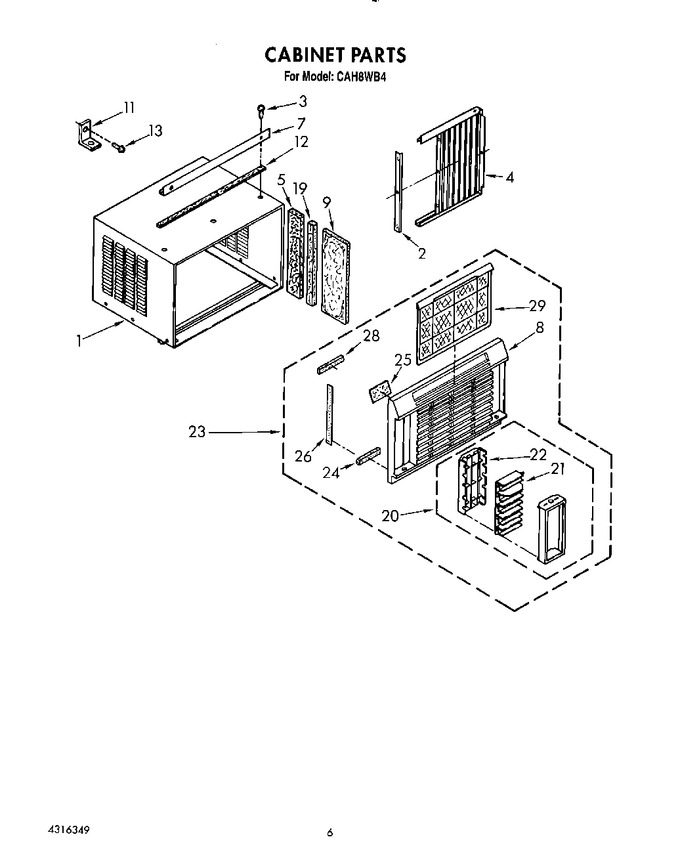

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1163055		Cabinet		Appelez-nous	-
2	644224		Retainer, Curtain		Appelez-nous	-
3	WP489069		Screw, 8 X 3/8 (3)   (Replaces: 1157158)			Immediately	$ 7.56
4	1157666		Curtain (right Side)		Appelez-nous	-
4	1157665		Left Side		Appelez-nous	-
5	1161747		Insulation,		Appelez-nous	-
7	1157196		Chanel, Top		Appelez-nous	-
8	1156971		Cabinet Front		Appelez-nous	-
9	1161748		Insulation (2)		Appelez-nous	-
10	WP489069		Screw, 8 X 7/16 (6)   (Replaces: 1157158)			Immediately	$ 7.56
11	644228		Bracket, Window Lock		Appelez-nous	-
12	1158593		Seal, Cabinet Top		Appelez-nous	-
13	488255		Screw Wood No.8x3/4		Appelez-nous	-
19	1159289		Seal, Strip		Appelez-nous	-
20	1156972		Cartridge, Complete		Appelez-nous	-
21	1159333		Horzontal Louver		Appelez-nous	-
22	1156975		Ribs, Vertical		Appelez-nous	-
23	1160551		Front, Complete		Appelez-nous	-
24	1161746		Seal, (2)		Appelez-nous	-
25	1159081		Seal		Appelez-nous	-
26	1159079		Seal (2)		Appelez-nous	-
28	WP854334		Seal (2)   (Replaces: 1158270)				$ 12.55
29	1156976		Filter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
