SELECT A DIAGRAM

01 - Unit, Literature


02 - Air Flow And Control


03 - Cabinet


04 - Optional

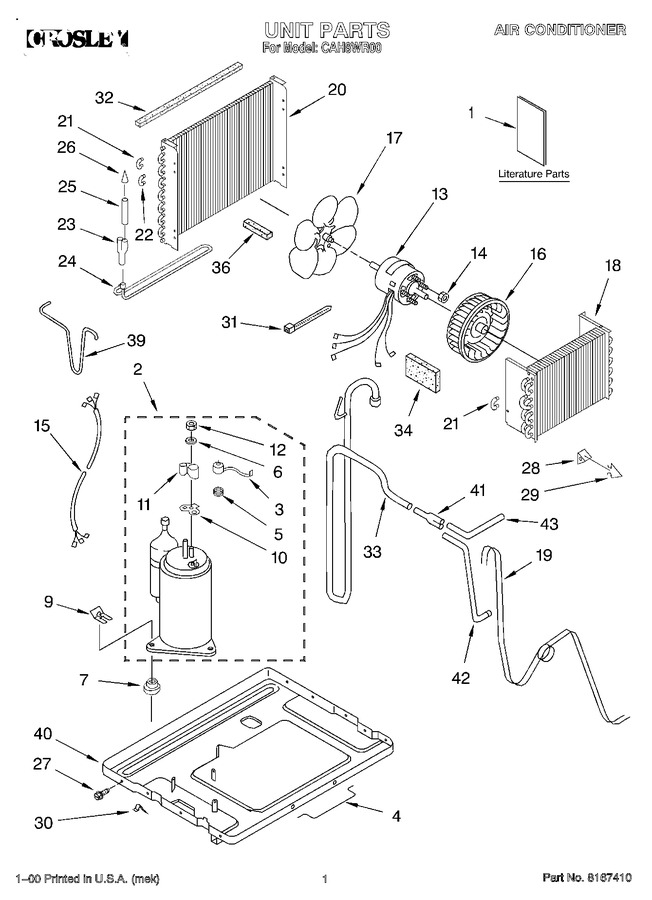

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8011286		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT1182584		Use & Care Guide		Appelez-nous	-
2	4317916		Compressor   (Replaces: 1158043)		Appelez-nous	-
3	WP1161170		Overload   (Replaces: 1161170)				$ 84.72
4	8031320		Handle, Base		Appelez-nous	-
5	950032		Spring, Overload		Appelez-nous	-
6	950037		Gasket, Nut		Appelez-nous	-
7	950212		Grommet		Appelez-nous	-
9	8011446		Clip, Compressor		Appelez-nous	-
10	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
11	WP950036		Cover, Terminal   (Replaces: 950213)				$ 9.83
12	WP950027		Nut, Hex   (Replaces: 950027)				$ 5.20
13	8031531		Motor, Fan		Appelez-nous	-
14	WP488130		Nut, Hex Keps   (Replaces: 488130)				$ 6.59
15	8031578		Harness, Wiring (compressor)		Appelez-nous	-
16	8031415		Wheel, Blower		Appelez-nous	-
17	8031414		Blade, Fan		Appelez-nous	-
18	8031218		Evaporator		Appelez-nous	-
19	8031257		Tube, Restrictor		Appelez-nous	-
20	8031301		Condenser		Appelez-nous	-
21	8031222		Bend, Return Evaporator (4) Condenser (4)		Appelez-nous	-
22	8031223		Bend, Return Condenser (4)		Appelez-nous	-
23	947364		Tube, Flow Divider		Appelez-nous	-
24	8031238		Tube, Wet Loop		Appelez-nous	-
25	1155460		Tube, Outlet (includes No. 26)		Appelez-nous	-
26	49599		Strainer, Tube		Appelez-nous	-
27	488624		Screw, 8-15 X .375		Appelez-nous	-
28	1166782		Anticipator, Temperature		Appelez-nous	-
29	642080		Clip, Temperature Anticipator		Appelez-nous	-
30	471088		Clamp, Tube		Appelez-nous	-
31	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
32	WP854334		Seal, Condenser Top   (Replaces: 949090)				$ 12.55
33	8031589		Tube, Suction (includes 41, 42, And 43)		Appelez-nous	-
34	1165440		Insulation, Suction Tube		Appelez-nous	-
36	WP854334		Seal, Condenser Bottom   (Replaces: 859600)				$ 12.55
39	8031258		Tube, Discharge		Appelez-nous	-
40	8031392		Base		Appelez-nous	-
41	1159832		Tube, Flow Divider		Appelez-nous	-
42	8031329		Tube, Outlet (bottom)		Appelez-nous	-
43	8031289		Tube, Outlet (top)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
