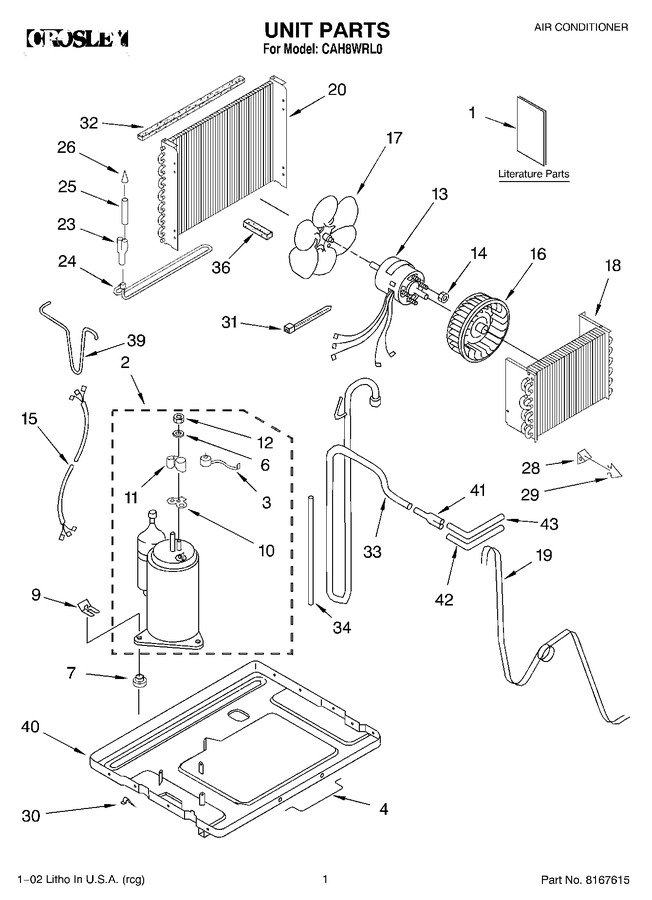

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT1184506		Use & Care Guide		Appelez-nous	-
1	LIT1185963		Energy Guide		Appelez-nous	-
1	LIT8011286		Literature Parts (wiring Diagram)		Appelez-nous	-
2	1185601		Compressor		Appelez-nous	-
3	WP1186661		Overload   (Replaces: 1185749)				$ 116.82
4	8031320		Handle, Base		Appelez-nous	-
6	1182120		Gasket, Nut		Appelez-nous	-
7	950212		Grommet		Appelez-nous	-
9	8011446		Clip, Compressor		Appelez-nous	-
10	1182118		Gasket, Terminal Cover		Appelez-nous	-
11	1184748		Cover, Terminal		Appelez-nous	-
12	W10833054		Nut, Hex   (Replaces: 1186128)		Appelez-nous	-
13	1184411		Motor, Fan		Appelez-nous	-
14	WP488130		Nut, Hex Keps   (Replaces: 488130)				$ 6.59
15	8031579		Wiring Harness, Compressor		Appelez-nous	-
16	8031415		Wheel, Blower		Appelez-nous	-
17	8031414		Blade, Fan		Appelez-nous	-
18	1184778		Evaporator		Appelez-nous	-
19	1184679		Tube, Restrictor		Appelez-nous	-
20	8031230		Condenser		Appelez-nous	-
23	947364		Tube, Flow Divider		Appelez-nous	-
24	8031238		Tube, Wet Loop		Appelez-nous	-
25	951437		Tube, Outlet (includes No. 26)		Appelez-nous	-
26	49599		Strainer, Tube		Appelez-nous	-
28	1166782		Anticipator, Temperature		Appelez-nous	-
29	642080		Clip, Temperature Anticipator		Appelez-nous	-
30	471088		Clamp, Tube		Appelez-nous	-
31	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
32	1181735		Seal		Appelez-nous	-
33	1185664		Tube, Suction		Appelez-nous	-
34	1185481		Seal, Suction Tube		Appelez-nous	-
36	WP854334		Seal, Condenser Bottom   (Replaces: 859600)				$ 12.55
39	1185665		Tube, Discharge		Appelez-nous	-
40	8031392		Base		Appelez-nous	-
41	1159832		Tube, Flow Divider		Appelez-nous	-
42	8031290		Tube, Outlet (bottom)		Appelez-nous	-
43	8031289		Tube, Outlet (top)		Appelez-nous	-
