2DWTW4845EW0 | The Brick : Appliance Model Lookup

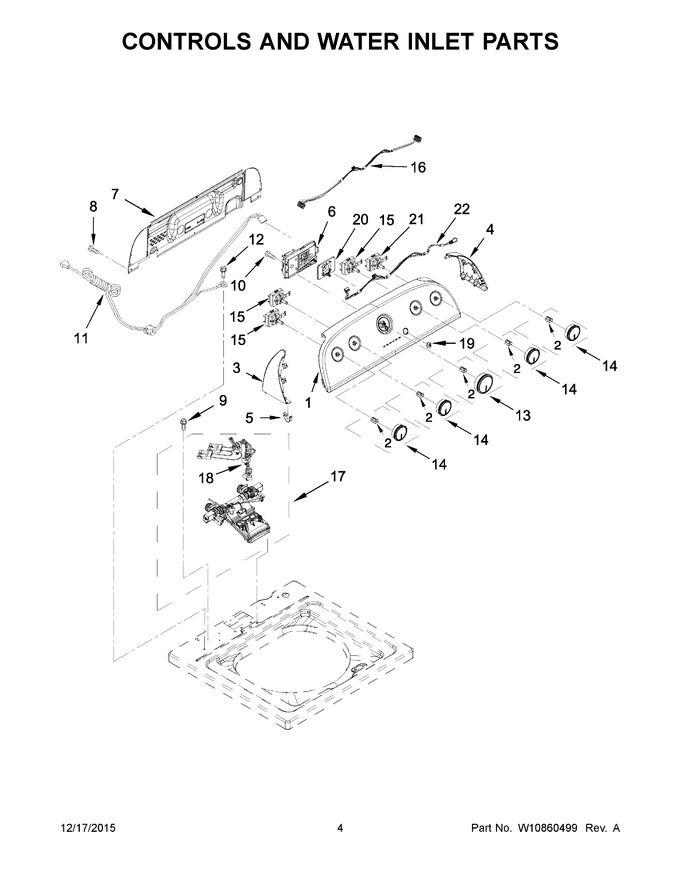

Diagram #	Part Number	Description	Availability	Ships	Price
1	W10774523	Panel, Console			$ 347.92
2	WP8536939	Clip, Spring (Replaces: 8536939)		Immediately	$ 7.38
3	WPW10520782	End Cap (left) (white) (Replaces: W10520782)			$ 58.22
4	WPW10520780	End Cap (right) (white) (Replaces: W10520780)			$ 57.91
5	WP8312709	Clip, Console (Replaces: 8312709)		Immediately	$ 15.66
6	W10916234	Control Unit Assembly, Machine And Motor (Replaces: W10817956)	Appelez-nous	-
7	W10552335	Panel, Console Rear Cover			$ 308.85
8	WP489069	Screw (Replaces: 1157158)		Immediately	$ 7.56
9	WPW10213953	Screw (Replaces: W10213953)		Immediately	$ 6.80
10	WP90767	Screw (Replaces: 90767)		Immediately	$ 7.43
11	W10790421	Cord, Universal Power	Appelez-nous	-
12	W10846509	Screw (Replaces: 3400076)		Immediately	$ 7.38
13	W11501455	Knob, Timer (white/metallic) (Replaces: W10576634)			$ 41.20
14	W10576636	Assembly, Control Knob (white/metallic)	Appelez-nous	-
15	WPW10285512	Switch, Rotary Encoder (4 Position) (Replaces: W10285512)		Immediately	$ 171.42
16	W11211519	Harness, Upper (Replaces: W10694680)			$ 166.32
17	W11210461	Inlet Assembly, Water (Replaces: W10789992)			$ 206.87
18	W10678671	Harness, Valve			$ 166.83
19	W11084340	Grommet, Push To Start (Replaces: W10598040)			$ 66.47
20	WPW10596298	Button, Push To Start (Replaces: W10596298)			$ 65.68
21	WPW10285511	Switch, Rotary Encoder (2 Position) (Replaces: W10285511)		Immediately	$ 163.89
22	W10786100	Harness, Jumper			$ 170.98
NI	W10446855	Adapter, Power Cord (10a Cord Lock)	Appelez-nous	-
NI	WPW10476822	Power Cord (10a Cord Adapter (european)) (Replaces: W10476822)			$ 72.81
NI	WPW10475423	Power Cord (10a Cord Adapter (type B)) (Replaces: W10475423)			$ 19.58
