01 - Cover Sheet

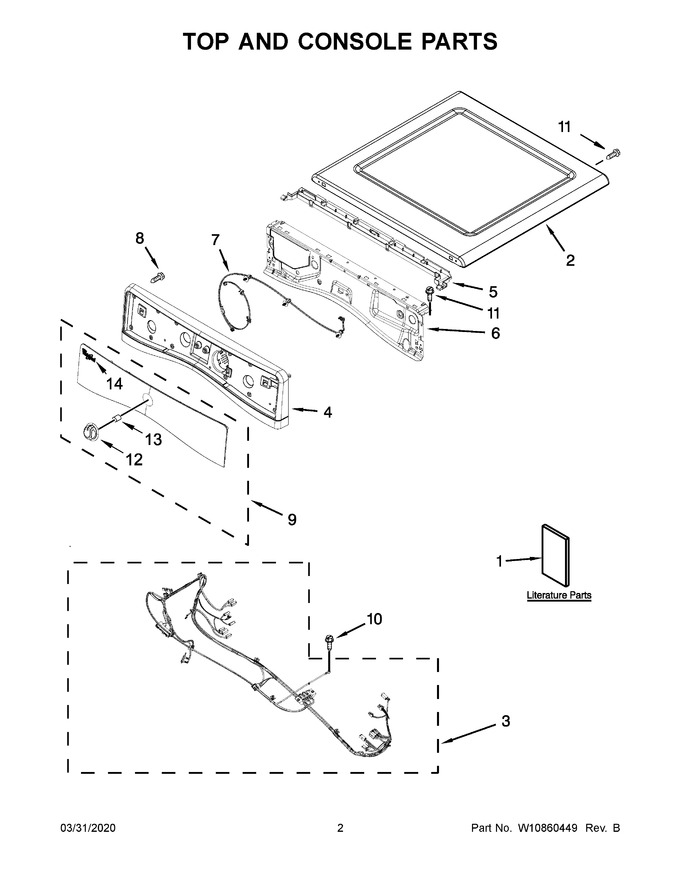

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Burner Assembly
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10804688 | Use And Care Guide |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 291.54 | |||||
| 3 | W10801124 | Harness, Main Wiring |
|
$ 238.85 | |||||
| 4 | WPW10391519 | Panel, Console Assembly (white) (Replaces: W10391519) |
|
Immediately | $ 167.22 | ||||
| 5 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 81.85 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 73.09 | |||||
| 7 | W11025125 | Cable, User Interface (Replaces: W10540654) |
|
Immediately | $ 11.94 | ||||
| 8 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 9 | W10800223 | Assembly, Overlay (white) |
|
- | |||||
| 10 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 12 | W10875909 | Assembly, Timer Knob (white) (Replaces: W10631126) |
|
Immediately | $ 47.69 | ||||
| 13 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 14 | W11178521 | Badge (white) (Replaces: W10387117) |
|
Immediately | $ 56.82 | ||||
| 1A | W10806847 | Tech Sheet |
|
- | |||||
| 1B | W11101336 | Installation Instructions |
|
- | |||||
| 1C | W10804668 | Quick Start Guide |
|
- |
