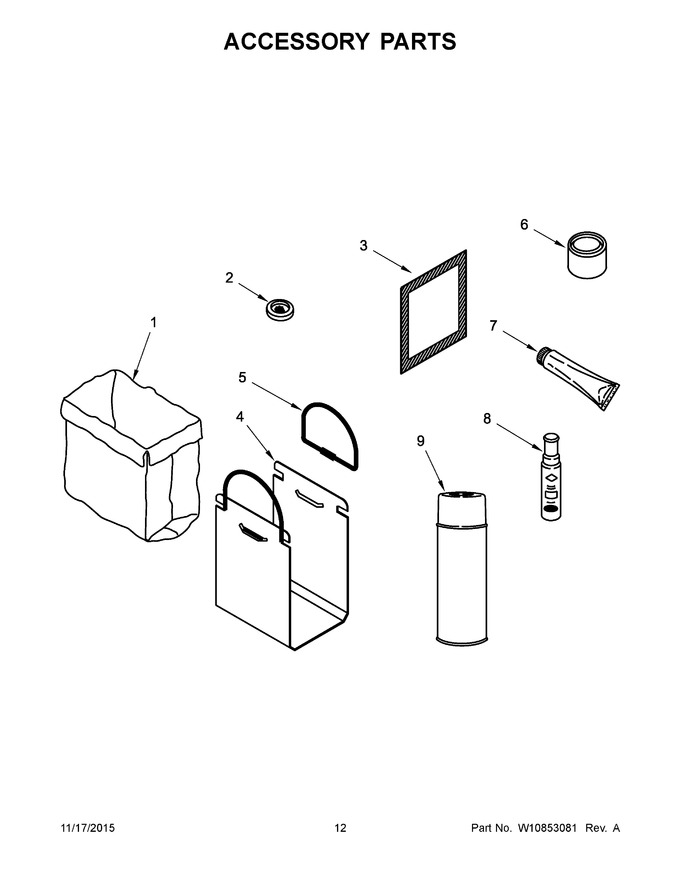

07 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10165295RP | Bag, Trash (15" Plastic) (15 Pack) (Replaces: 4318921) |
|
Immediately | $ 28.86 | ||||
| 2 | 777635 | Deodorizer, Solid Stick-ups (2 Pack) |
|
- | |||||
| 3 | W10540355 | Deodorizer Block (green Apple) (Replaces: 9872166GA) |
|
$ 14.30 | |||||
| 4 | 13030RP | Carrier, Bag (includes Item 5) |
|
Immediately | $ 52.50 | ||||
| 5 | WP777108 | Handle, Bag Carrier (Replaces: 777108) |
|
$ 33.29 | |||||
| 6 | 675351 | Grease 4 Oz. (use On Power Screw & Ram Pressure Pads) |
|
- | |||||
| 7 | WP279368 | Adhesive (2 Oz. Tube) (Replaces: 279368) |
|
Immediately | $ 104.81 | ||||
| 8 | WP72107 | Paint, Touch-up 1/2 Oz. (almond) (Replaces: 72107) |
|
$ 16.93 | |||||
| 9 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 48.61 | |||||
| 1A | 4318922 | Bag, Trash (15" Plastic) (60 Pack) |
|
- | |||||
| 1B | W10165295BU | Bag, Trash (15" Plastic) (12 Boxes Of 15 Pack) |
|
Immediately | $ 238.15 | ||||
| 1C | 675186 | Bag, Trash (15" Paper) (12 Pack) |
|
$ 22.83 | |||||
| 1D | 882652 | Bag, Trash (15" Paper) (48 Pack) |
|
$ 82.10 | |||||
| 3A | 9872166LG | Deodorizer Block (lemongrove) |
|
- | |||||
| 3B | 9872166L | Deodorizer Block (lavender) |
|
- | |||||
| 8A | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 8B | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 8C | 4392899 | Paint, Touch-up 1/2 Oz. (biscuit/bisque) |
|
Immediately | $ 24.99 | ||||
| 8D | 8171571 | Paint, Touch-up 1/2 Oz. (cobalt Blue) |
|
$ 28.85 | |||||
| 8E | 8171651 | Paint, Touch-up 1/2 Oz. (hunter Green) |
|
$ 20.17 | |||||
| 8F | 8171652 | Paint, Touch-up 1/2 Oz. (empire Red) |
|
$ 28.56 | |||||
| 8G | 8171653 | Paint, Touch-up 1/2 Oz. (majestic Yellow) |
|
- | |||||
| 9A | 285006 | Paint, Spray 13 Oz. (black) |
|
$ 53.90 | |||||
| 9B | 4392901 | Paint, Spray 13 Oz. (biscuit/bisque) |
|
- | |||||
| 9C | 350930 | Paint, Spray 13 Oz. (white) |
|
Immediately | $ 36.11 | ||||
| NI | W10083931A | Handle Kit (previous Architect Series) (stainless) (Replaces: 8564945) |
|
$ 96.53 |
