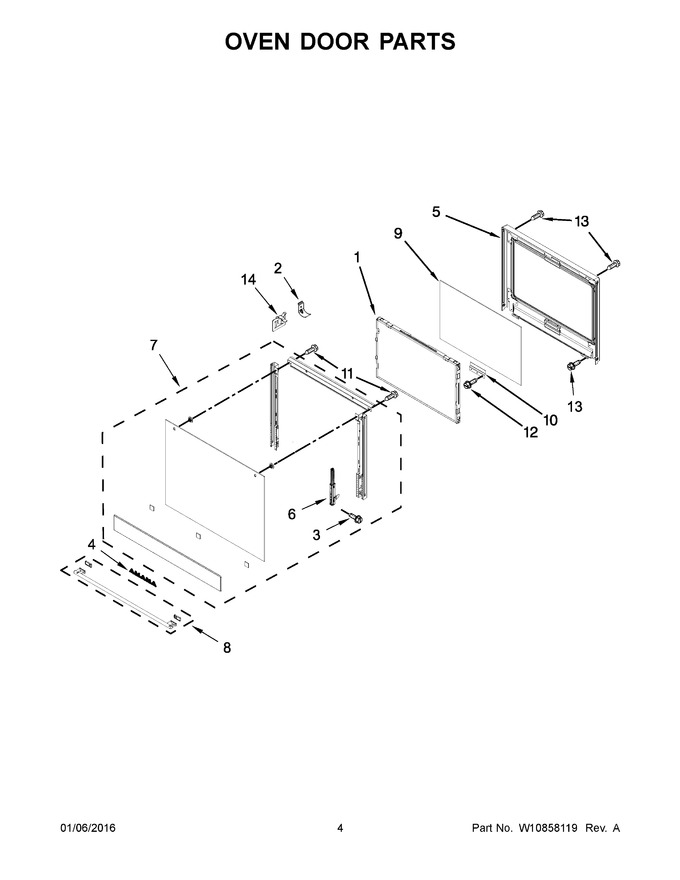

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10347596 | Assembly, Window Pack (Replaces: W10347596) |
|
Immediately | $ 290.75 | ||||
| 2 | W10812024 | Spring, Door Glass Fixation (Replaces: W10284285) |
|
$ 149.18 | |||||
| 3 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 7.36 | ||||
| 4 | W11788675 | Badge (black) (Replaces: W10846751) |
|
$ 27.99 | |||||
| 5 | WPW10709147 | Assembly, Liner (Replaces: W10709147) |
|
$ 330.02 | |||||
| 6 | W10825778 | Hinge, Door (Replaces: W10639069) |
|
Immediately | $ 101.57 | ||||
| 7 | W10832252 | Assembly, Door Glass (black) |
|
$ 334.67 | |||||
| 8 | W10118431 | Handle, Door (black) |
|
$ 198.68 | |||||
| 9 | W10827059 | Glass, Inner (Replaces: W10678524) |
|
$ 179.82 | |||||
| 10 | W10853628 | Bracket, Glass (Replaces: W10284297) |
|
$ 147.47 | |||||
| 11 | W11396735 | Screw (Replaces: W10163951) |
|
$ 13.28 | |||||
| 12 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 13 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 16.74 | |||||
| 14 | W11025615 | Clip, Spring Metal (Replaces: W10653954) |
|
Immediately | $ 158.53 | ||||
| 4A | W10849465 | Badge (white) |
|
Immediately | $ 74.53 | ||||
| 4B | W11240541 | Badge (stainless) (Replaces: W10846752) |
|
Immediately | $ 70.16 | ||||
| 7A | W10832253 | Assembly, Door Glass (white) |
|
$ 392.11 | |||||
| 7B | W10832251 | Assembly, Door Glass (stainless) |
|
$ 352.28 | |||||
| 8A | WPW10118430 | Handle, Door (white) (Replaces: W10118430) |
|
$ 251.36 | |||||
| 8B | WPW10144883 | Handle, Door (stainless) (Replaces: W10144883) |
|
$ 227.39 |
