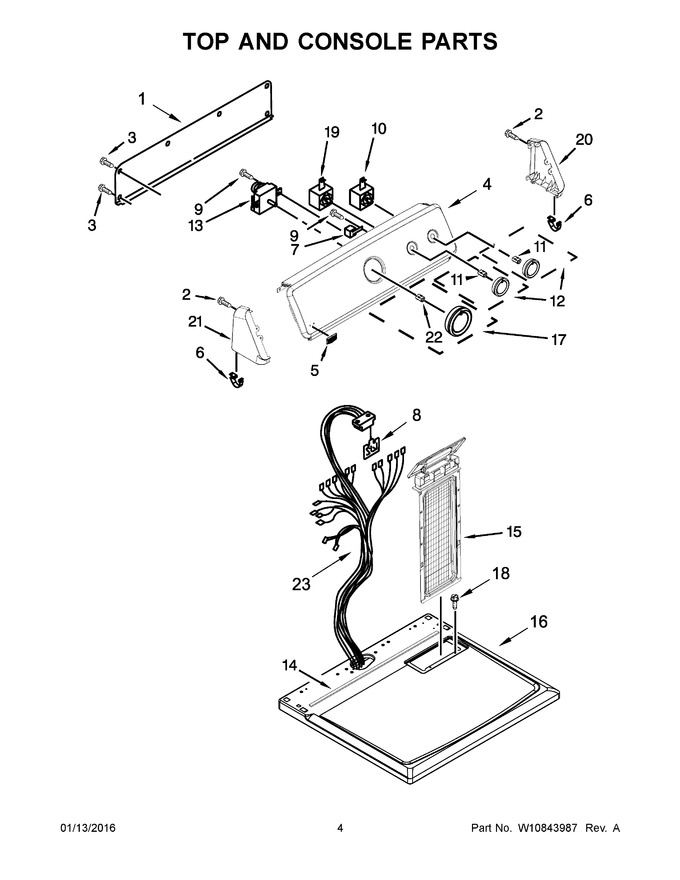

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear (console)				$ 121.78
2	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	W10688377		Panel, Front (white)				$ 287.13
5	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 38.12
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
8	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 296.94
9	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
10	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 77.04
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 16.95
13	WPW10185992		Assembly, Control Knob   (Replaces: W10185992)			Immediately	$ 164.31
14	W10316616		Grey				$ 25.01
15	W11778253		Lint Screen (white)   (Replaces: W10717210)			Immediately	$ 49.17
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
17	W11837899		Assembly, Timer Knob (grey)   (Replaces: W10558463)			Immediately	$ 16.95
18	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
19	WP8578354		Switch, Rotary Temperature   (Replaces: 8578354)			Immediately	$ 229.00
20	WPW10193821		End Cap (right) (white)   (Replaces: W10193821)				$ 67.25
21	WPW10193824		End Cap (left) (white)   (Replaces: W10193824)				$ 66.95
22	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
23	W11678118		Harness, Main Wiring   (Replaces: W10640709)		Appelez-nous	-
