01 - Cover Sheet

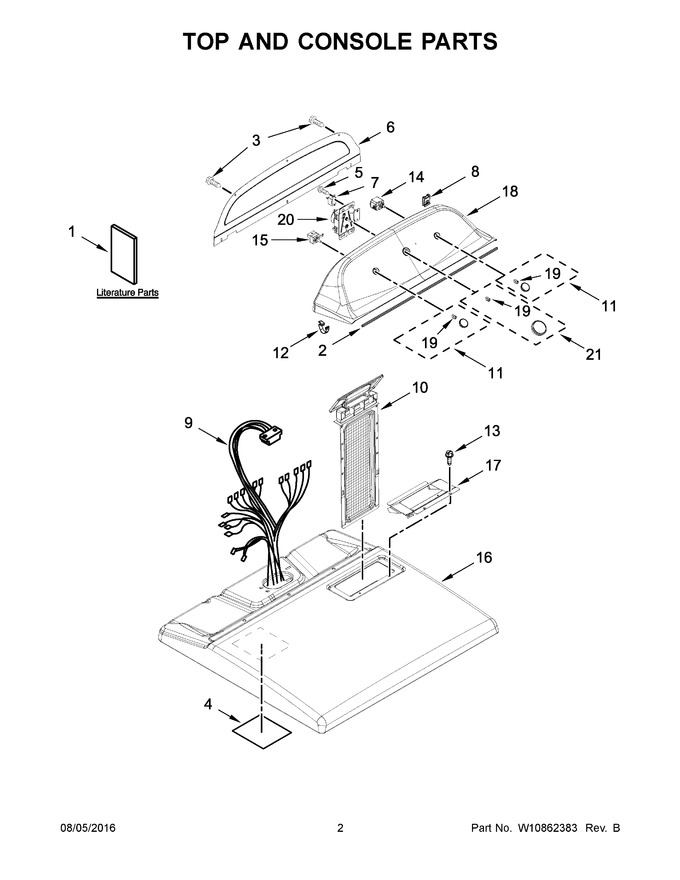

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10791289 | Installation Instructions |
|
- | |||||
| 2 | W11721376 | Seal, Console (Replaces: W10726632) |
|
- | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W11668653 | Panel, Dampening (Replaces: W10836097) |
|
$ 30.95 | |||||
| 5 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 6 | W10756582 | Panel, Rear |
|
- | |||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 8 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 8.13 | |||||
| 9 | W10780469 | Harness, Wiring |
|
- | |||||
| 10 | W11778254 | Lint Screen (white) (Replaces: W10508973) |
|
Immediately | $ 54.63 | ||||
| 11 | W10743997 | Assembly, Knob (chrome) |
|
- | |||||
| 12 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 13 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WPW10446920 | Switch, Push To Start (Replaces: W10446920) |
|
Immediately | $ 88.11 | ||||
| 15 | W10648593 | Switch, Rotary (wrinkle Control) |
|
$ 37.26 | |||||
| 16 | W11222514 | Top (white) (Replaces: W10613389) |
|
Immediately | $ 271.37 | ||||
| 17 | W10662472 | Collar, Lint Chute |
|
$ 77.87 | |||||
| 18 | W10755954 | Assembly, Console (white) |
|
- | |||||
| 19 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 20 | WPW10436303 | Assembly, Timer (Replaces: W10436303) |
|
Immediately | $ 326.35 | ||||
| 21 | W10743994 | Assembly, Timer Knob (chrome) |
|
- | |||||
| 1A | W10791286 | Use And Care Guide |
|
- | |||||
| 1B | W10663954 | Wiring Diagram |
|
- |
