01 - Cover Sheet


02 - Lower Cabinet And Front Panel Parts


03 - Upper Cabinet And Front Panel Parts

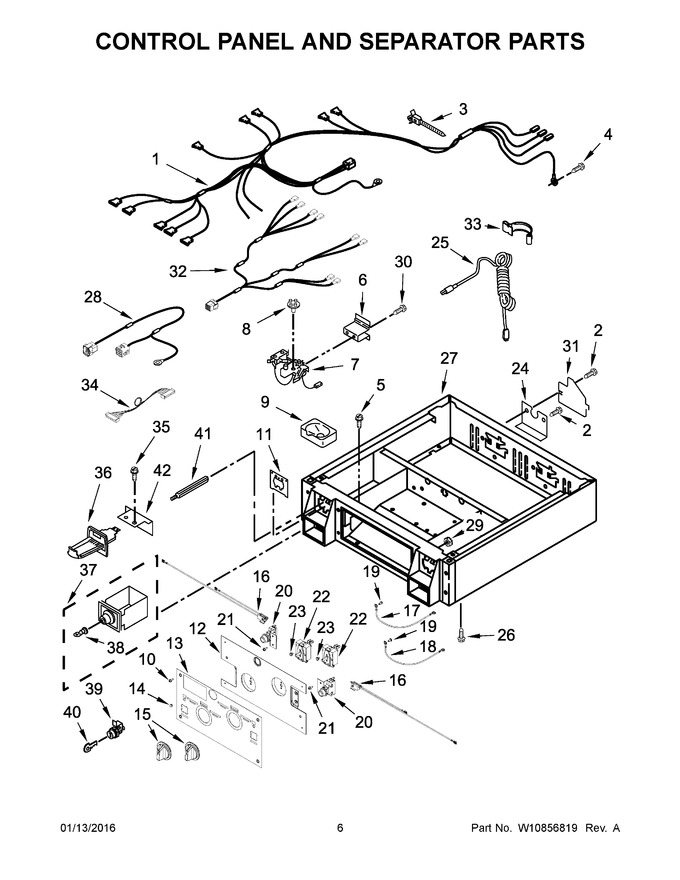

04 - Control Panel And Separator Parts


05 - Upper And Lower Bulkhead Parts


06 - Burner Assembly


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10807480		Harness, Wire		Appelez-nous	-
2	W11676450		Screw   (Replaces: 3400000)				$ 13.28
3	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 6.32
4	W10850756		Screw   (Replaces: 8533974)				$ 7.38
5	W11808444		Screw   (Replaces: 98139)		Appelez-nous	-
6	3390114		Bracket, Timer		Appelez-nous	-
7	279737		Timer   (Replaces: 3389668)			Immediately	$ 344.67
8	WP3387974		Timing Cam, 3-pin (60 Minutes)   (Replaces: 3387974)				$ 7.87
9	WP385421		Funnel, Coin   (Replaces: 385421)			Immediately	$ 70.12
10	WPW10131119		Screw   (Replaces: W10386302)				$ 6.57
11	279950		Plate, Adapter   (Replaces: 3954761)			Immediately	$ 30.35
12	W10684161		Panel, Control		Appelez-nous	-
13	W10684157		Fascia Assembly		Appelez-nous	-
14	WPW10133502		Indicator Lights Assembly   (Replaces: W10133502)				$ 12.16
15	W10492415		Knob				$ 18.56
16	W10662107		Lamp, Indicator				$ 24.46
17	3401699		Jumper Wire   (Replaces: 8539882)		Appelez-nous	-
18	3401699		Jumper, Wire (ground)		Appelez-nous	-
19	WP489128		Screw   (Replaces: 303921)				$ 10.26
20	W11097274		Switch, Push To Start   (Replaces: W10424310)				$ 63.75
21	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
22	WPW10327105		Switch, Cycle Selection   (Replaces: W10327105)				$ 152.77
23	W10139100		Screw				$ 11.71
24	3390189		Strain Relief		Appelez-nous	-
25	W11628810		Cord, Power   (Replaces: 3401401)				$ 91.71
26	3400500		Bolt			Immediately	$ 12.64
27	W10862444		Collar				$ 716.00
28	W10734526		Jumper, Lower To Collar		Appelez-nous	-
29	WP3400029		Nut   (Replaces: 3400029)			Immediately	$ 7.37
30	WP3400094		Screw   (Replaces: 3400094)				$ 8.33
31	W11539855		Cover, Terminal Block   (Replaces: 3396795)			Immediately	$ 566.78
32	W10807826		Jumper, Csp Console		Appelez-nous	-
33	WP98997		Clip   (Replaces: 98997)				$ 10.48
34	WP3401850		Harness, Gas   (Replaces: 3401850)				$ 229.62
35	WP356418		Screw   (Replaces: 96435)				$ 8.33
36	W11126319		Coin Chute   (Replaces: 8316520)			Immediately	$ 303.95
37	W11190039		Money Box W/lock   (Replaces: 8316525)			Immediately	$ 177.61
38	N/P		Key (money Box) (when Ordering, Specify Vendor And Key Number)		Appelez-nous	-
39	W11315637		777 Lock And Key, Complete   (Replaces: 8316526)			Immediately	$ 68.71
40	N/P		Key (service Door) (when Ordering, Specify Vendor And Key Number)		Appelez-nous	-
41	WP8576635		Bolt, Slide Mechanism   (Replaces: 8318517)			Immediately	$ 71.06
42	3390424		Extension, Slide			Immediately	$ 64.49
36A	W11312584		Insert - Blank   (Replaces: 8316264)				$ 29.67
36B	8316265		Insert - 25 Cent		Appelez-nous	-
8A	51-161-6		Timing Cam, 6 Pin (30 Minutes)   (Replaces: 343777)				$ 31.07
NI	N/P		Coin Mech. Parts May Be Ordered 1-800-523-1510		Appelez-nous	-
