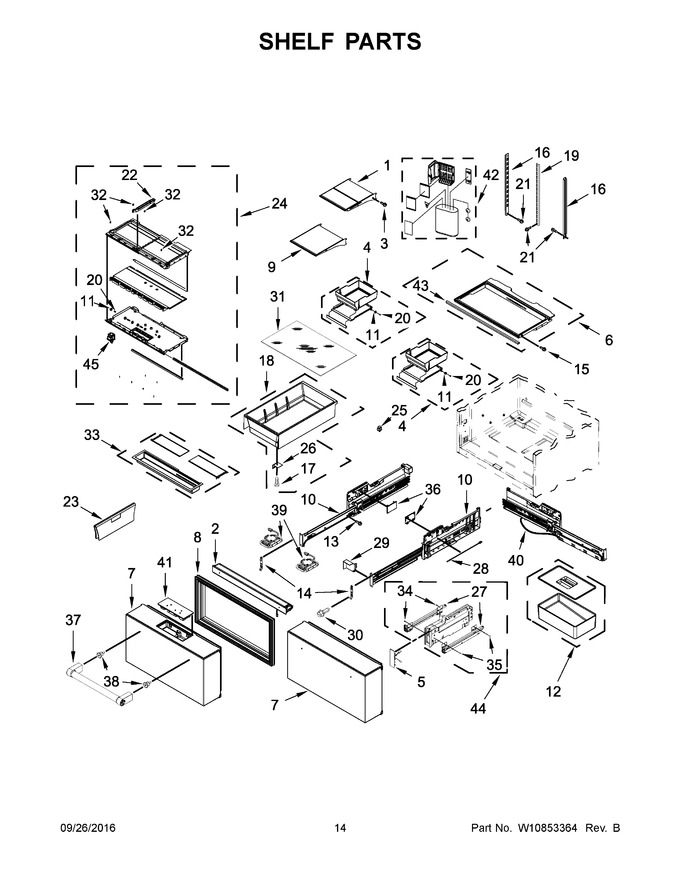

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10737427 | Shelf, Tuck (Replaces: W10737427) |
|
$ 255.20 | |||||
| 2 | W11028805 | Assembly, Secondary Mullion (grey) (Replaces: W10849121) |
|
$ 189.25 | |||||
| 3 | W10421495 | Screw |
|
$ 17.18 | |||||
| 4 | W11028624 | Assembly, Crisper (Replaces: W10801137) |
|
$ 214.34 | |||||
| 5 | W10830861 | Assembly, Mullion Cover (grey) (Replaces: W10733546) |
|
$ 73.51 | |||||
| 6 | W10847513 | Assembly, Crisper Cover (Replaces: W10796184) |
|
$ 195.12 | |||||
| 7 | W10815671 | Door, Pantry (includes Item 8) Left Hand (stainless) (Replaces: W10733262) |
|
$ 872.87 | |||||
| 8 | W10832386 | Gasket, Pantry (grey) (Replaces: W10685868) |
|
$ 303.96 | |||||
| 9 | WPW10756310 | Shelf, Fixed (Replaces: W10756310) |
|
$ 239.95 | |||||
| 10 | W11294518 | Adapter, Pantry (left Hand) (Replaces: W10718058) |
|
$ 240.00 | |||||
| 11 | W10788795 | Roller |
|
$ 18.54 | |||||
| 12 | W11366498 | Assembly, Herb Bin (Replaces: W10634636) |
|
$ 41.08 | |||||
| 13 | WP98006631 | Screw (Replaces: 98006631) |
|
$ 6.57 | |||||
| 14 | W10732765 | Clip, Glide Door |
|
$ 16.87 | |||||
| 15 | WPW10348409 | Screw (Replaces: 12990301) |
|
Immediately | $ 7.38 | ||||
| 16 | W11819951 | Ladder, Side (Replaces: W10467460) |
|
- | |||||
| 17 | W10664603 | Screw |
|
$ 13.02 | |||||
| 18 | W10734569 | Assembly, Pantry Drawer |
|
$ 127.31 | |||||
| 19 | W10467461 | Ladder, Center |
|
Immediately | $ 47.08 | ||||
| 20 | 67006692 | Screw (Replaces: 12991401) |
|
$ 9.71 | |||||
| 21 | WPW10666373 | Screw (Replaces: W10666373) |
|
$ 18.77 | |||||
| 22 | W10638123 | Guide, Crisper |
|
$ 262.89 | |||||
| 23 | W11026309 | Divider, Pantry Pan (Replaces: W10709891) |
|
$ 42.62 | |||||
| 24 | W11215631 | Assembly, Floor (Replaces: W10802390) |
|
$ 214.25 | |||||
| 25 | W11384469 | Switch, Light (Replaces: C3680310V) |
|
Immediately | $ 35.18 | ||||
| 26 | W10704335 | Clip, Drawer Body |
|
$ 13.81 | |||||
| 27 | W11242542 | Glide, Pantry (also Order Items 34 And 35) (left Hand) (Replaces: W10847525) |
|
$ 265.68 | |||||
| 28 | W11168403 | Thermistor (Replaces: W10549991) |
|
Immediately | $ 113.95 | ||||
| 29 | W10711645 | Cover, Connector |
|
$ 99.59 | |||||
| 30 | W10756178 | Screw (Replaces: W10140652) |
|
$ 5.66 | |||||
| 31 | W11038526 | Glass, Crisper (Replaces: W10493549) |
|
$ 236.79 | |||||
| 32 | 12702901 | Pad, Glide |
|
- | |||||
| 33 | W11175820 | Assembly, Secondary Mullion Bin (Replaces: W10793117) |
|
$ 205.01 | |||||
| 34 | W10737730 | Nut, Rivet |
|
$ 13.63 | |||||
| 35 | W10737605 | Screw |
|
$ 9.50 | |||||
| 36 | W10518036 | Cover, Side Adapter |
|
$ 20.48 | |||||
| 37 | W11499659 | Handle, Door (stainless) (Replaces: W10680045) |
|
$ 163.87 | |||||
| 38 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 39 | W11683242 | Assembly, Led Module (Replaces: W10843339) |
|
Immediately | $ 300.56 | ||||
| 40 | W11170612 | Harness, Side Adapter (Replaces: W10512203) |
|
Immediately | $ 81.86 | ||||
| 41 | WPW10769076 | Interface, User (stainless) (Replaces: W10769076) |
|
Immediately | $ 477.97 | ||||
| 42 | W11462816 | Assembly, Produce Preserver (Replaces: W10826105) |
|
Immediately | $ 15.44 | ||||
| 43 | W10847369 | Support, Front (Replaces: W10684313) |
|
$ 101.71 | |||||
| 44 | W11294550 | Assembly, Pantry Center Adapter (Replaces: W10847588) |
|
$ 112.80 | |||||
| 45 | W11291138 | Switch, Rocker (Replaces: 12466104) |
|
Immediately | $ 33.00 | ||||
| 10A | W11294519 | Adapter, Pantry (right Hand) (Replaces: W10718057) |
|
$ 174.75 | |||||
| 27A | W11242542 | Glide, Pantry (also Order Items 34 And 35) (right Hand) (Replaces: W10735385) |
|
$ 265.68 | |||||
| 7A | W10815679 | Door, Pantry (includes Item 8) Right Hand (stainless) (Replaces: W10738903) |
|
$ 861.95 |
