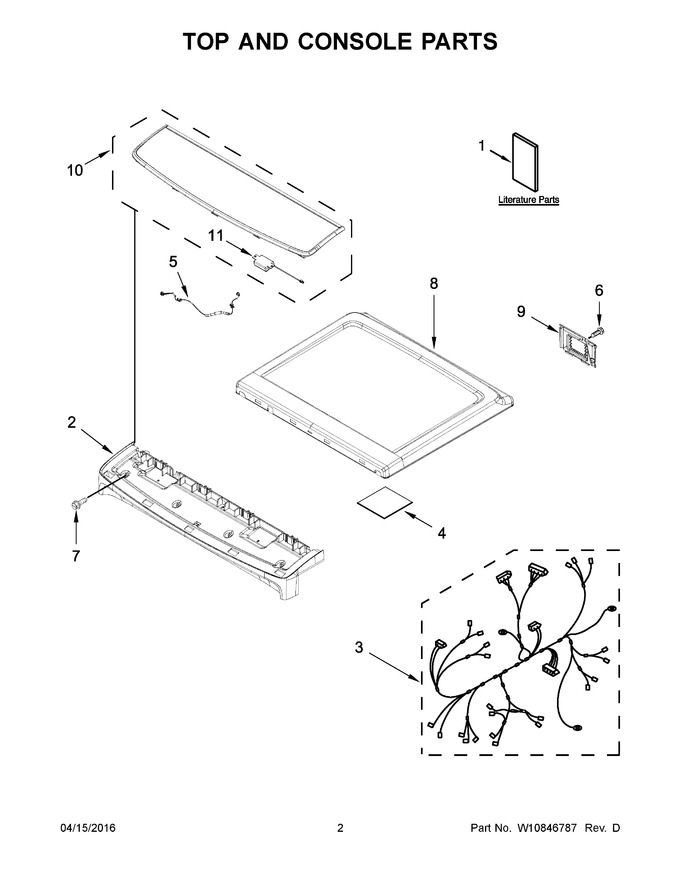

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10757741		Installation Instructions		Appelez-nous	-
2	W10686839		Console Shell Assembly (white)		Appelez-nous	-
3	W10744301		Harness, Main		Appelez-nous	-
4	W11668653		Panel, Dampening   (Replaces: W10836097)				$ 27.86
5	W10680750		Harness, User Interface		Appelez-nous	-
6	WP3390631		Screw   (Replaces: 3390631)				$ 7.43
7	W11693756		Screw   (Replaces: 359625)			Immediately	$ 13.28
8	W10702879		Top (white)		Appelez-nous	-
9	WPW10316167		Cover, Terminal Block   (Replaces: W10316167)				$ 93.64
10	W10695133		Fascia Assembly, Console		Appelez-nous	-
11	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
1A	W10757742		Use And Care Guide		Appelez-nous	-
1B	W10757747		Tech Sheet		Appelez-nous	-
1C	W10860741		Quickstart Guide		Appelez-nous	-
2A	W10686841		Console Shell Assembly (chrome Shadow)		Appelez-nous	-
8A	W10702881		Top (chrome Shadow)		Appelez-nous	-
