SELECT A DIAGRAM

01 - Cover Sheet

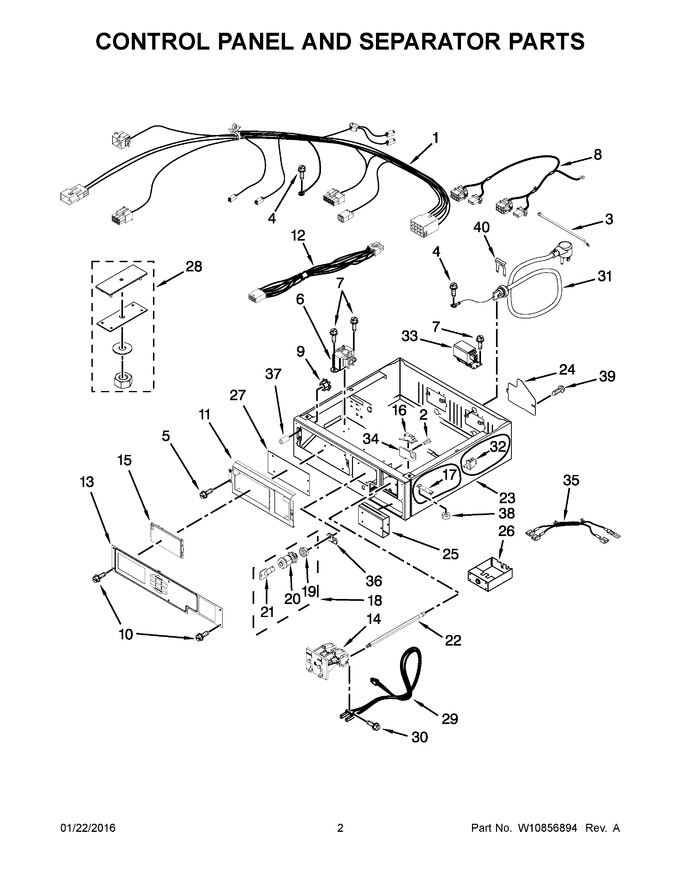

02 - Control Panel And Separator Parts


03 - Lower Cabinet And Front Panel Parts


04 - Upper Cabinet And Front Panel Parts


05 - Upper And Lower Bulkhead Parts


06 - Burner Assembly


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10807484		Harness, Collar		Appelez-nous	-
2	3400408		Screw		Appelez-nous	-
3	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 6.32
4	W10850756		Screw   (Replaces: W10773242)				$ 7.38
5	W10756178		Screw   (Replaces: W10140652)				$ 5.66
6	WPW10133285		Transformer 120vac To 22.5vac   (Replaces: W10133285)				$ 193.23
7	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
8	W10807493		Jumper, Lower To Collar		Appelez-nous	-
9	WPW10139046		Nut   (Replaces: W10139046)				$ 8.31
10	WPW10131119		Screw   (Replaces: W10386302)				$ 6.57
11	W10657185		Plate, Control Mounting		Appelez-nous	-
12	W10111027		Jumper, Transformer				$ 43.29
13	W11678123		Facia Console   (Replaces: W10684165)		Appelez-nous	-
14	W11643135		Assembly, Dual Coin Drop   (Replaces: W10198395)				$ 537.68
15	WPW10133268		Cover, Display   (Replaces: W10133268)				$ 66.54
16	WPW10447152		Switch, Service Access   (Replaces: W10447152)				$ 38.93
17	W10159907		Assembly, Mounting Strap Weld		Appelez-nous	-
18	WPW10133264		Assembly, Lock Access Door   (Replaces: W10133264)				$ 131.37
19	WPW10133264		Nut, Hex   (Replaces: W10177242)				$ 131.37
20	W11395752		Nut, Hex   (Replaces: W10139762)				$ 12.32
21	WPW10140858		Key, Access Door   (Replaces: W10140858)			Immediately	$ 19.89
22	WPW10137319		Bolt, Hex Bar   (Replaces: W10137319)				$ 76.83
23	W10862445		Collar		Appelez-nous	-
24	W11539855		Cover, Terminal Block   (Replaces: 3396795)			Immediately	$ 566.78
25	W11204020		Assembly, Vault Body   (Replaces: W10133258)				$ 379.55
26	W11204019		Box, Coin   (Replaces: W10133248)				$ 147.47
27	W11398779		Control Board   (Replaces: W10678217)				$ 545.77
28	W11416034		Kit-coin Box, Security (to Be Serviced As A Kit)   (Replaces: W10169579)				$ 119.07
29	WPW10247389		Coin Optic Sensor Assembly (white)   (Replaces: W10247389)			Immediately	$ 109.53
30	WP3395530		Screw   (Replaces: W10142655)				$ 7.71
31	WPW10581952		Cord, Power   (Replaces: W10239314)				$ 111.32
32	WPW10131838		Switch, Vault Service Door   (Replaces: W10131838)				$ 22.60
33	WPW10367632		Filter, Rfi   (Replaces: W10306592)				$ 115.50
34	W10160652		Bracket-switch		Appelez-nous	-
35	W10188051		Jumper, Line Filter		Appelez-nous	-
36	W11165684		Cam, Locking   (Replaces: W10133266)				$ 8.61
37	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
38	WPW10080190		Nut, Hex (left Hand Thread)   (Replaces: W10001120)			Immediately	$ 9.01
39	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.43
40	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 6.99
29A	W10247388		Coin Optic Sensor Assembly (black)		Appelez-nous	-
NI	N/P		Coin Mech. Parts May Be Ordered From Whpl Or Vendor 1-800-523-1510		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
