SELECT A DIAGRAM

01 - Cover Sheet

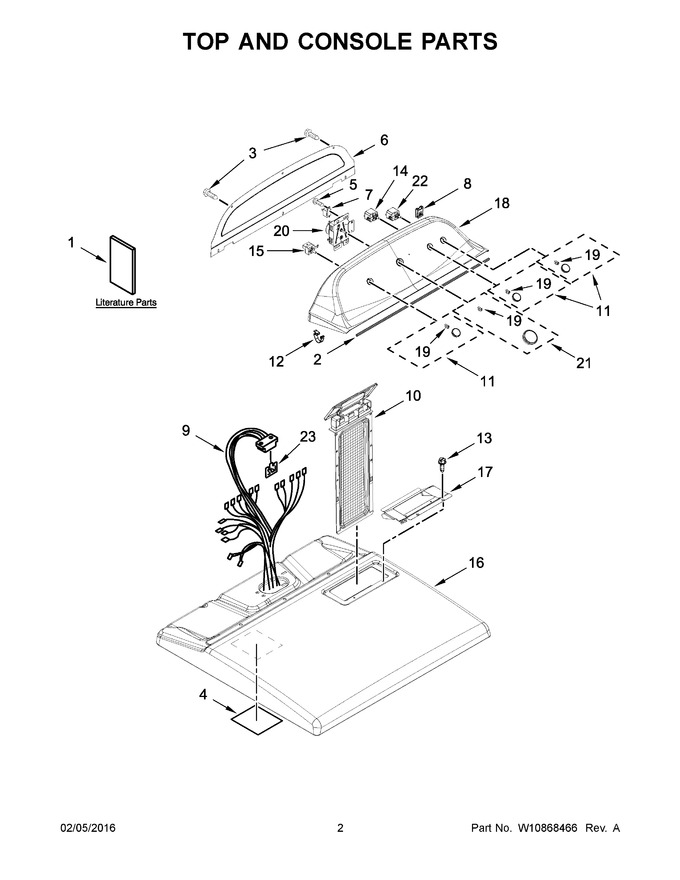

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10791287		Installation Instructions		Appelez-nous	-
2	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
4	W10123956		Panel, Dampening		Appelez-nous	-
5	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
6	W10756582		Panel, Rear		Appelez-nous	-
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
8	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
9	W10875142		Harness, Wiring   (Replaces: W10780468)		Appelez-nous	-
10	W11778254		Assembly, Lint Screen   (Replaces: W10508973)			Immediately	$ 54.63
11	W10875173		Assembly, Knob (chrome)   (Replaces: W10766132)		Appelez-nous	-
12	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	WPW10446920		Switch, Push To Start   (Replaces: W10446920)			Immediately	$ 88.11
15	W10562713		Switch, Rotary (temperature)		Appelez-nous	-
16	W11222514		Top (white)   (Replaces: W10613389)			Immediately	$ 271.37
17	W10662472		Collar, Lint Chute				$ 77.87
18	W10875171		Assembly, Console (white)   (Replaces: W10791109)		Appelez-nous	-
19	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
20	W11399035		Assembly, Timer   (Replaces: W10685025)				$ 364.34
21	W10875178		Assembly, Timer Knob (chrome)   (Replaces: W10777242)		Appelez-nous	-
22	W10648614		Switch, Rotary (temperature)				$ 74.14
23	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 329.93
1A	W10791286		Use And Care Guide		Appelez-nous	-
1B	W10185993		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
