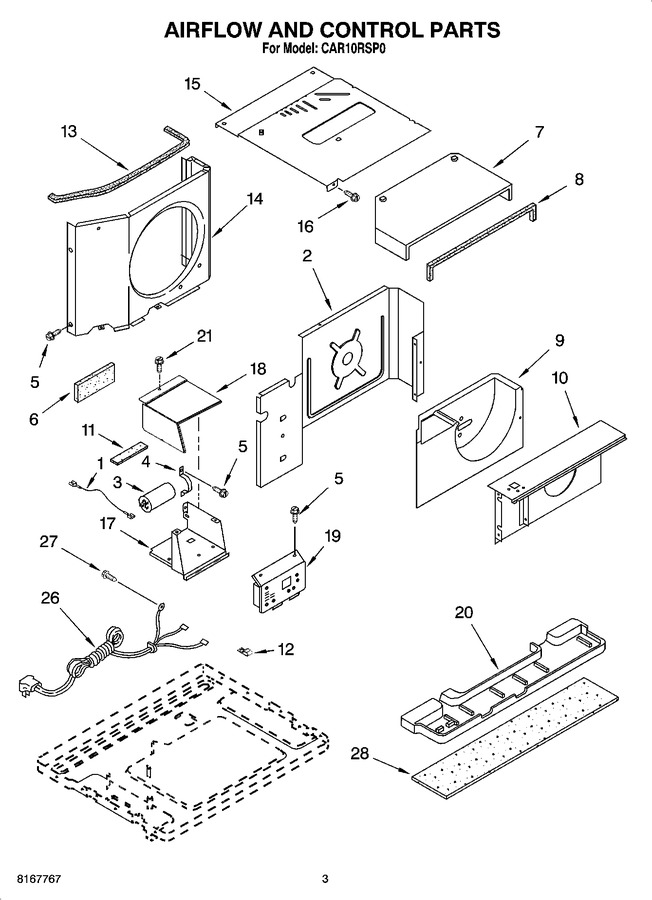

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1186569		Wire, Jumper		Appelez-nous	-
2	8031104		Wall, Dividing		Appelez-nous	-
3	1186506		Capacitor, Running		Appelez-nous	-
4	WP1160674		Bracket, Running Capacitor   (Replaces: 1185676)				$ 143.20
5	1159222		Screw, 8-18 X 19/64		Appelez-nous	-
6	1187084		Seal, Anti-rub		Appelez-nous	-
7	8031570		Hood, Air Housing		Appelez-nous	-
8	WP854334		Seal, Hood   (Replaces: 1180698)				$ 12.55
9	8031586		Housing, Air		Appelez-nous	-
10	8031109		Shroud, Evaporator		Appelez-nous	-
11	1187047		Seal, Control Box		Appelez-nous	-
12	549193		Clamp				$ 12.65
13	8031312		Seal, Condenser Shroud		Appelez-nous	-
14	8031110		Shroud, Condenser		Appelez-nous	-
15	1186766		Cover, Unit		Appelez-nous	-
16	WP3196557		Screw   (Replaces: 1168744)			Immediately	$ 7.16
17	1184600		Box, Control		Appelez-nous	-
18	1186666		Cover, Control Box		Appelez-nous	-
19	1186192		Control, Electronic		Appelez-nous	-
20	8031111		Pan, Drain		Appelez-nous	-
21	1161561		Screw		Appelez-nous	-
26	1186917		Cable, Appliance		Appelez-nous	-
27	1159222		Screw, 8-18 X 19/64		Appelez-nous	-
28	8031480		Insulation, Drain Pan		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
