01 - Cover Sheet
02 - Cabinet Parts

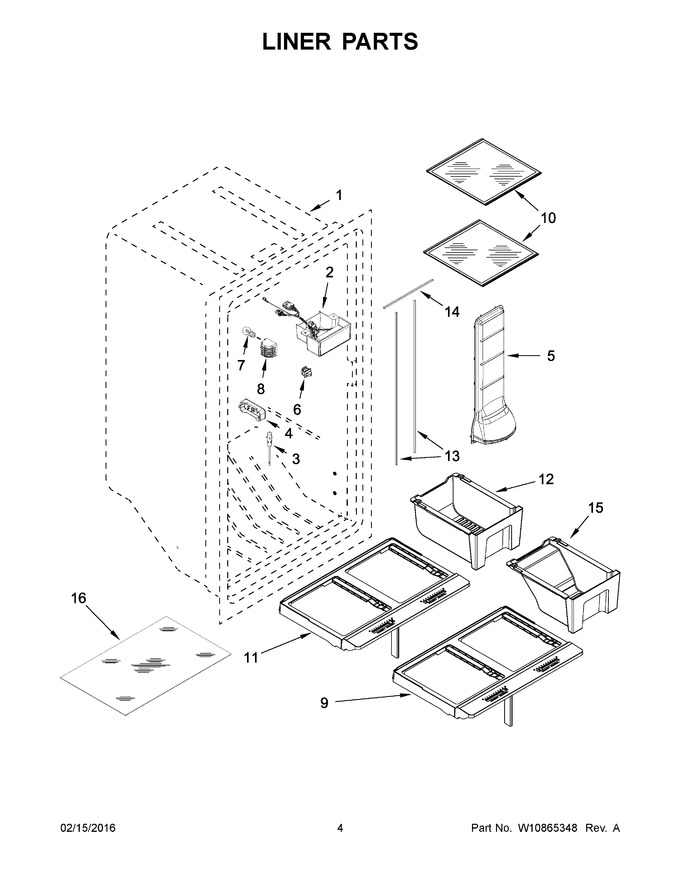

03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11382530 | Control Assembly (Replaces: W10716809) |
|
$ 363.20 | |||||
| 3 | WPW10384183 | Thermistor, Refrigerator Compartment (Replaces: W10384183) |
|
Immediately | $ 106.62 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 28.11 | |||||
| 5 | W10574272 | Air Tower |
|
Immediately | $ 120.82 | ||||
| 6 | W10755325 | Switch, Light |
|
Immediately | $ 37.05 | ||||
| 7 | W11216993 | Lamp, Led (Replaces: W10820003) |
|
Immediately | $ 47.21 | ||||
| 8 | W10569269 | Lens, Control Box |
|
$ 77.84 | |||||
| 9 | W10581573 | Crisper Cover, Top |
|
$ 264.57 | |||||
| 10 | W11430589 | Shelf, Deep (Replaces: W10702763) |
|
$ 128.82 | |||||
| 11 | W10591310 | Crisper Cover, Bottom |
|
$ 88.95 | |||||
| 12 | W10654386 | Crisper Pan, Top |
|
$ 143.49 | |||||
| 13 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574368) |
|
$ 7.88 | |||||
| 14 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 7.88 | |||||
| 15 | W10654387 | Crisper Pan, Bottom |
|
$ 143.13 | |||||
| 16 | W11428833 | Glass, Crisper (Replaces: W10581574) |
|
Immediately | $ 206.64 |
