01 - Cover Sheet

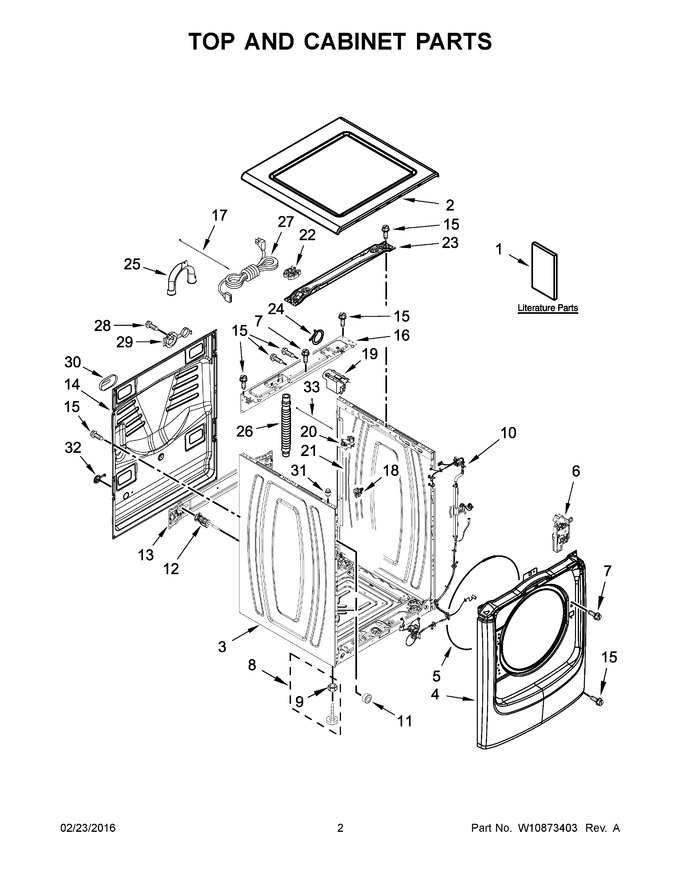

02 - Top And Cabinet Parts
03 - Door Parts
04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10849733 | Use And Care Guide |
|
- | |||||
| 2 | WPW10208373 | Top (white) (Replaces: W10208373) |
|
$ 302.83 | |||||
| 3 | W11166595 | Cabinet (white) (Replaces: W10441110) |
|
$ 434.27 | |||||
| 4 | WPW10650837 | Panel, Front (white) (Replaces: W10650837) |
|
$ 345.08 | |||||
| 5 | W11266654 | Retainer, Bellow (to Front Panel) (Replaces: W10237503) |
|
Immediately | $ 24.25 | ||||
| 6 | WPW10443885 | Lock, Door (Replaces: W10443885) |
|
Immediately | $ 128.82 | ||||
| 7 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 10.93 | |||||
| 8 | W10888529 | Leveling Leg Assembly (Replaces: W10073890) |
|
Immediately | $ 11.96 | ||||
| 9 | WP3359452 | Nut, Hex (Replaces: 3359452) |
|
Immediately | $ 6.80 | ||||
| 10 | W10746378 | Harness, Wiring (lower Main) (Replaces: W10572166) |
|
$ 165.11 | |||||
| 11 | W10323182 | Spacer, Front Panel (Replaces: W10615477) |
|
- | |||||
| 12 | W10763470 | Bolt, Shipping (set Of 4) (Replaces: W10271590) |
|
$ 89.96 | |||||
| 13 | W10237498 | Brace, Transport |
|
$ 68.84 | |||||
| 14 | W11199206 | Panel, Rear (Replaces: W10386102) |
|
$ 345.54 | |||||
| 15 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 7.59 | ||||
| 16 | WPW10467483 | Brace, Rear (Replaces: W10467483) |
|
$ 35.70 | |||||
| 17 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 18 | WPW10181028 | Clip, Pressure Switch Hose (Replaces: W10181028) |
|
$ 17.63 | |||||
| 19 | WPW10367632 | Filter, Interference (Replaces: W10367632) |
|
$ 115.50 | |||||
| 20 | WPW10448876 | Sensor, Pressure (Replaces: W10448876) |
|
Immediately | $ 60.11 | ||||
| 21 | W11044559 | Hose, Pressure Switch (Replaces: W10525781) |
|
Immediately | $ 30.63 | ||||
| 22 | W11846996 | Retainer, Spring (Replaces: W10245452) |
|
$ 9.06 | |||||
| 23 | W10467484 | Brace, Top |
|
$ 40.48 | |||||
| 24 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 25 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 75.16 | |||||
| 26 | W11281268 | Hose, Drain (external) (Replaces: W10267638) |
|
Immediately | $ 19.93 | ||||
| 27 | W11035353 | Power Cord (Replaces: W10632346) |
|
Immediately | $ 117.95 | ||||
| 28 | WP3351614 | Screw (Replaces: 3351614) |
|
Immediately | $ 6.57 | ||||
| 29 | W10854051 | Cover, Power Cord-transport (Replaces: W10275820) |
|
$ 20.25 | |||||
| 30 | WP8540268 | Cover, Transport (Replaces: 8540268) |
|
$ 6.57 | |||||
| 31 | W10208380 | Screw And Bushing Assembly |
|
$ 65.23 | |||||
| 32 | W10304004 | Cover, Power Cord |
|
- | |||||
| 33 | WPW10339879 | Cable Tie (Replaces: W10267532) |
|
$ 7.47 | |||||
| 1A | W10602465 | Tech Sheet |
|
- | |||||
| 1B | W10709304 | Installation Instructions |
|
- | |||||
| 1C | W10849737 | Energy Guide |
|
- | |||||
| 2A | WPW10460693 | Top (chrome Shadow) (Replaces: W10460693) |
|
$ 332.72 | |||||
| 3A | W11166600 | Cabinet (chrome Shadow) (Replaces: W10441105) |
|
$ 347.22 | |||||
| 4A | W10846340 | Panel, Front (chrome Shadow) (Replaces: W10650838) |
|
$ 350.68 |
