| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10800783 |
|
Door, Refrigerator (Replaces: W10761879) |
|
|
|
$ 1,487.93 |
|
|
| 2 |
W10127710 |
|
Plate, Handle Door |
|
|
Immediately |
$ 23.35 |
|
|
| 3 |
W11673500 |
 |
Assembly, Hinge (top) (Replaces: W10485980) |
|
|
Immediately |
$ 117.33 |
|
|
| 4 |
W11673500 |
|
Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
|
Immediately |
$ 117.33 |
|
|
| 5 |
W11474472 |
 |
Screw (Replaces: W10162602) |
|
|
Immediately |
$ 7.77 |
|
|
| 6 |
2302878 |
 |
Assembly, Hinge (bottom) |
|
|
Immediately |
$ 81.91 |
|
|
| 7 |
W11348580 |
 |
Rail, Lid (Replaces: 2222797) |
|
|
Immediately |
$ 162.99 |
|
|
| 8 |
W11348580 |
|
Gasket, Utility Bin (Replaces: 2222983) |
|
|
Immediately |
$ 162.99 |
|
|
| 9 |
W11625077 |
|
Gasket, Door (grey) (Replaces: W10760886) |
|
|
|
$ 347.32 |
|
|
| 10 |
W11797608 |
|
Skin, Door (stainless) (Replaces: W10859717) |
|
|
|
$ 1,312.06 |
|
|
| 11 |
W10783284 |
|
Door, Handle (stainless) (Replaces: W10541592) |
|
|
|
$ 195.04 |
|
|
| 12 |
W10758113 |
|
Spacer, Handle Side Door |
|
Appelez-nous
|
- |
|
|
|
| 13 |
W10759522 |
 |
Screw (stainless) (Replaces: 488568) |
|
|
|
$ 7.42 |
|
|
| 14 |
W10851443 |
 |
Screw (black) (Replaces: 8281252) |
|
|
Immediately |
$ 7.32 |
|
|
| 15 |
W10761897 |
|
Spacer, Door Skin (top) |
|
Appelez-nous
|
- |
|
|
|
| 16 |
WP308544 |
 |
Screw (Replaces: 308544) |
|
|
Immediately |
$ 7.47 |
|
|
| 17 |
W10756209 |
|
Spacer, Hinge Side Door |
|
Appelez-nous
|
- |
|
|
|
| 18 |
W10761937 |
|
Spacer, Door Skin (bottom) |
|
Appelez-nous
|
- |
|
|
|
| 19 |
W10323748 |
|
Bin, Gallon Door |
|
|
|
$ 109.60 |
|
|
| 20 |
W10769395 |
|
End Cap (left Hand) |
|
|
|
$ 35.30 |
|
|
| 21 |
W11348580 |
|
Bin, Utility Center (Replaces: W10323037) |
|
|
Immediately |
$ 162.99 |
|
|
| 22 |
W11348580 |
|
Door, Utility Bin (Replaces: 2257617) |
|
|
Immediately |
$ 162.99 |
|
|
| 23 |
W11752086 |
|
Bin, Shallow Door (Replaces: W10323600) |
|
|
|
$ 61.37 |
|
|
| 24 |
2005433 |
|
Spacer, Door Skin (top) |
|
|
|
$ 21.00 |
|
|
| 20A |
W10768112 |
|
End Cap (right Hand) |
|
|
|
$ 41.01 |
|
|

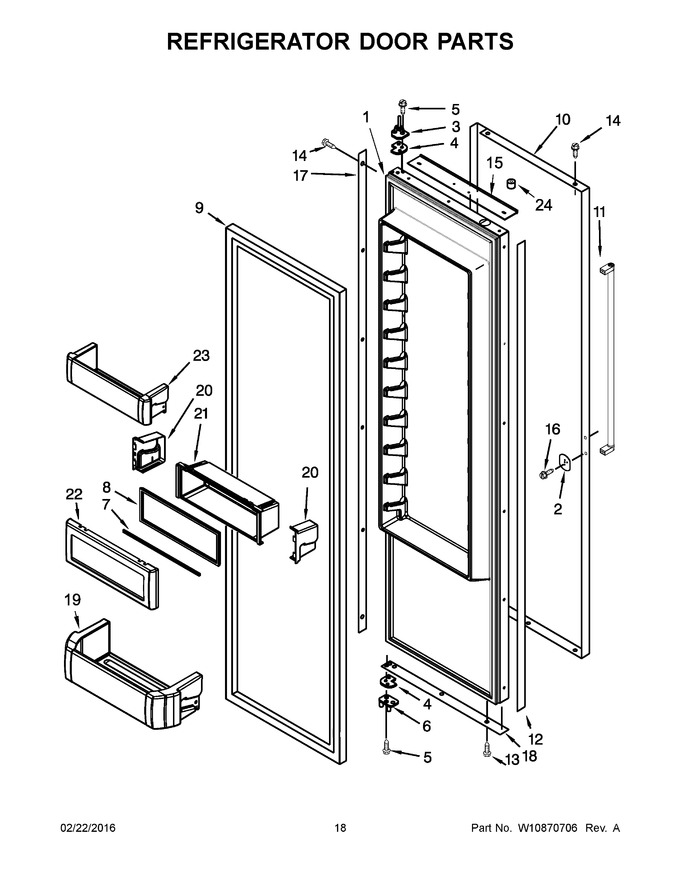

View Diagram in Separate Window
Print Part List
