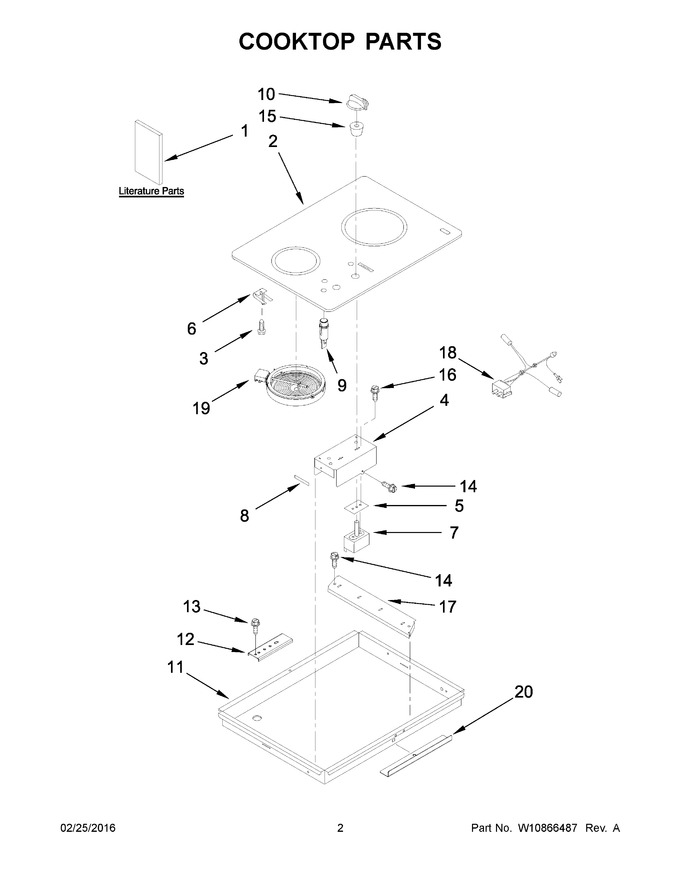

02 - Cooktop Parts
03 - Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286066 | Instructions, Installation |
|
- | |||||
| 2 | W10875085 | Cooktop, Glass (black) (Replaces: W10566742) |
|
$ 489.82 | |||||
| 3 | WP486754 | Screw (Replaces: 246119) |
|
$ 7.21 | |||||
| 4 | W10414006 | Bracket, Mounting |
|
$ 72.99 | |||||
| 5 | 3183956 | Seal, Switch Cover |
|
$ 43.89 | |||||
| 6 | 9759094 | Spring, Locator |
|
$ 6.65 | |||||
| 7 | WP3191049 | Switch, Infinite (front) (Replaces: 3191049) |
|
$ 157.76 | |||||
| 8 | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.85 | |||||
| 9 | 3193012 | Light, Indicator |
|
$ 104.13 | |||||
| 10 | WP9750372FF | Knob, Control (black) (Replaces: 9750372FF) |
|
Immediately | $ 19.80 | ||||
| 11 | 8286988 | Box, Burner |
|
- | |||||
| 12 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 83.57 | |||||
| 13 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.80 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 8285469 | Grommet (black) |
|
$ 47.25 | |||||
| 16 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.57 | ||||
| 17 | 3192721 | Rail, Element Support |
|
- | |||||
| 18 | 3192612 | Lamp, Hot Surface Indicator |
|
- | |||||
| 19 | W11171119 | Element (1200w) (front) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 20 | 4455364 | Bracket, Support |
|
$ 86.47 | |||||
| 19A | WP8273993 | Element (1800w) (rear) (Replaces: 8273993) |
|
Immediately | $ 258.96 | ||||
| 1A | 3192609 | Wiring Diagram |
|
- | |||||
| 1B | W10162162 | Use & Care Guide |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | 8304571 | Instructions, Undercounter |
|
- | |||||
| 7A | WP3191050 | Switch, Infinite (rear) (Replaces: 3191050) |
|
Immediately | $ 157.21 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 140.81 | ||||
| NI | W11171891 | Harness, Main (Replaces: W10631476) |
|
$ 207.31 | |||||
| NI | WP98997 | Clip (Replaces: 98997) |
|
$ 10.48 | |||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 6.80 | |||||
| NI | W10742186 | Assembly, Conduit |
|
- |
