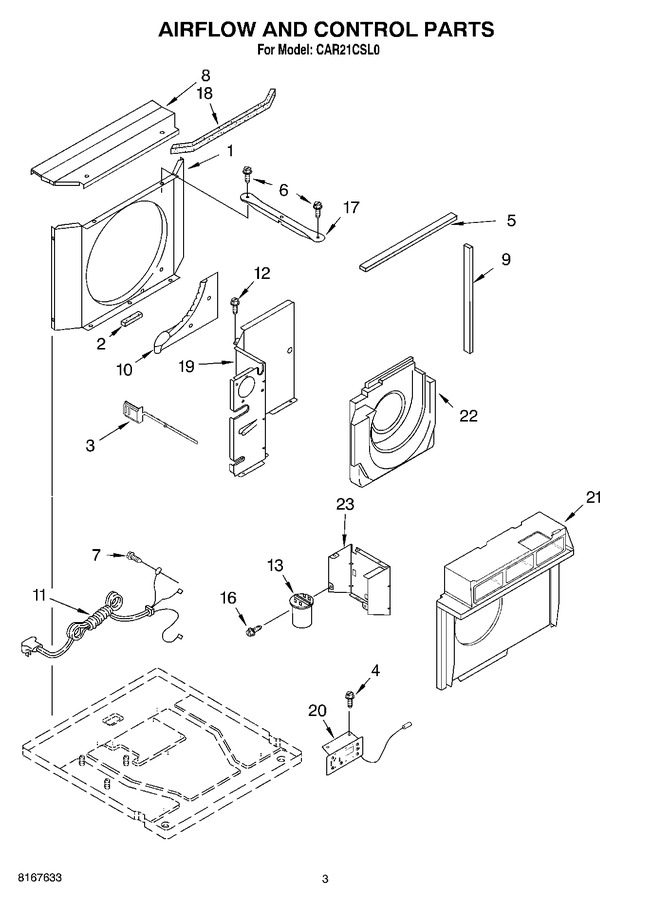

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1157403		Shroud, Condenser		Appelez-nous	-
2	1163332		Seal, Cap		Appelez-nous	-
3	1185506		Door, Exhaust		Appelez-nous	-
4	1159222		Screw (2)		Appelez-nous	-
5	1185513		Seal (top)		Appelez-nous	-
6	WP308685		Screw No.10 X 1/2   (Replaces: 488720)			Immediately	$ 7.08
7	WP489069		Screw No.8-1/2   (Replaces: 488480)			Immediately	$ 7.56
8	1157407		Top, Condenser		Appelez-nous	-
9	1185911		Seal (side)		Appelez-nous	-
10	1160684		Cup, Condensate		Appelez-nous	-
11	1185772		Cord, Appliance		Appelez-nous	-
12	488624		Screw, 8-15 X .375		Appelez-nous	-
13	1162606		Capacitor		Appelez-nous	-
16	WP489069		Screw, 8-18 X .375   (Replaces: 1157158)			Immediately	$ 7.56
17	1166169		Support, Unit (2)		Appelez-nous	-
18	1158732		Seal, Shroud		Appelez-nous	-
19	1185524		Dividing Wall		Appelez-nous	-
20	1186193		Control, Electronic		Appelez-nous	-
21	1185508		Shroud Assembly, Evaporator		Appelez-nous	-
22	1185507		Housing, Air		Appelez-nous	-
23	1185529		Control Box		Appelez-nous	-
