SELECT A DIAGRAM
New Model Search:

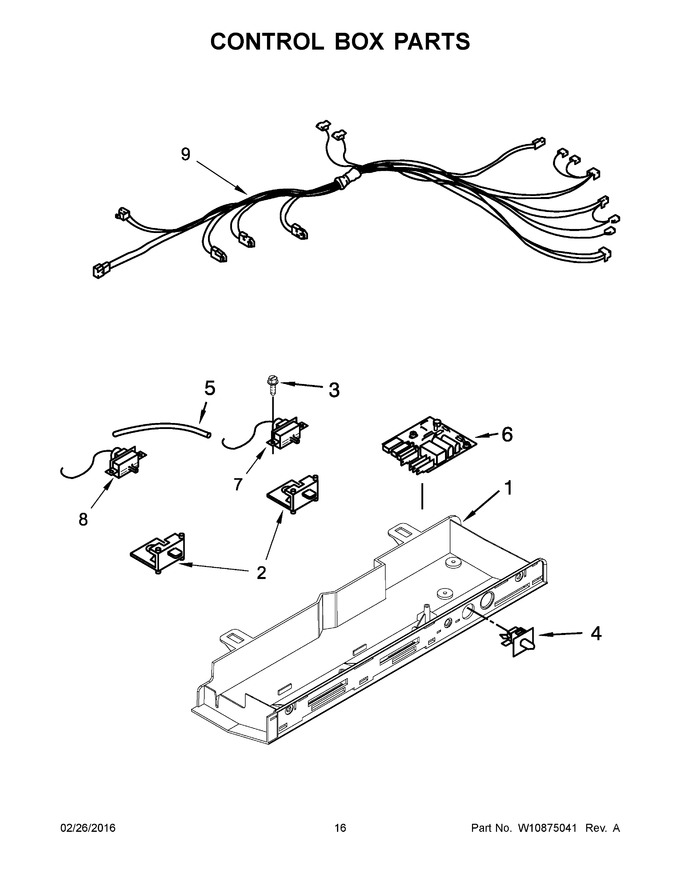

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10590039 | Control Box |
|
- | |||||
| 2 | 2161466 | Slide, Thermostat |
|
$ 20.05 | |||||
| 3 | 2006254 | Screw (Replaces: 489214) |
|
$ 12.41 | |||||
| 4 | WP2149705 | Switch, Plunger (Replaces: 2149705) |
|
Immediately | $ 41.09 | ||||
| 5 | WP2196003 | Tube, Thermostat Barrier (Replaces: 2182150) |
|
$ 7.52 | |||||
| 6 | 4388932 | Control, Adaptive Defrost (Replaces: 2303824) |
|
Immediately | $ 252.40 | ||||
| 7 | WPW10320574 | Thermostat (Replaces: W10320574) |
|
$ 250.77 | |||||
| 8 | WP2321289 | Thermostat (freezer) (Replaces: 2321289) |
|
$ 217.53 | |||||
| 9 | W10578492 | Harness, Control Box |
|
- |
