Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10526071 Instructions, Installation Appelez-nous -
2 W10655125 Set, Grates (black) Special Order $ 278.77

3 WPW10324251 Set, Burner Cap (black)   (Replaces: W10324251) Special Order $ 164.55

4 WPW10406878 Head, Burner (17.5k) (left Front)   (Replaces: W10406878) Special Order $ 96.73

5 W10204721 Cooktop (black) Appelez-nous -
6 WPW10650403 Knob (stainless)   (Replaces: W10650403) Special Order $ 154.23

7 W10664101 Panel, Manifold (black) Appelez-nous -
8 WP98008545 Screw (black)   (Replaces: 7101P633-60) Special Order $ 16.74

9 W10518258 Bracket, Cooktop Support Appelez-nous -
10 W11189172 Glide, Main Top   (Replaces: 8016P022-60) In-Stock Immediately $ 15.85

1A W10748897 Guide, Use & Care Appelez-nous -
1B W10647745 Sheet, Tech Appelez-nous -
1C 9762761 Tips, Safe Cooking (english) Appelez-nous -
1D W10065852 Tips, Safe Cooking (french) Appelez-nous -
4A WPW10406243 Head, Burner (6k) (left Rear & Center)   (Replaces: W10406243) In-Stock Immediately $ 35.17

4B WPW10406797 Head, Burner (12k) (right Front & Right Rear)   (Replaces: W10406797) Special Order $ 83.62

5A W10336320 Cooktop (white)   (Replaces: W10204722) Special Order $ 381.93

7A W10664100 Panel, Manifold (white) Appelez-nous -
7B W11022684 Panel, Manifold (stainless)   (Replaces: W10664102) Special Order $ 303.53

NI N/P Following Parts Not Illustrated Appelez-nous -
NI W10745687 Harness, Main Appelez-nous -
NI W11172531 Harness, Sensor & Locks   (Replaces: W10745683) Special Order $ 107.28

NI W11157775 Harness, Eol (mrc)   (Replaces: W10409840) Special Order $ 208.52

NI W10408059 Harness, Burner Special Order $ 174.10

NI WP4159193 Screw, Ground   (Replaces: 7101P027-60) Special Order $ 4.56

NI 8019P026-60 Clip, Wire Appelez-nous -
NI W10841090 Clamp, Wire   (Replaces: 7111P017-60) Appelez-nous -

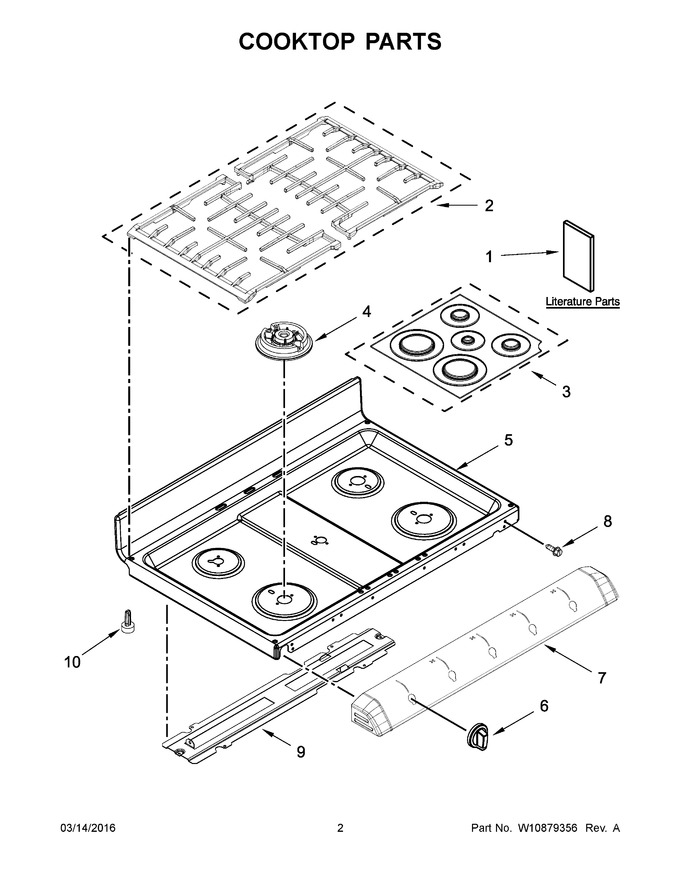

    View Diagram in Separate Window     Print Icon   Print Part List
