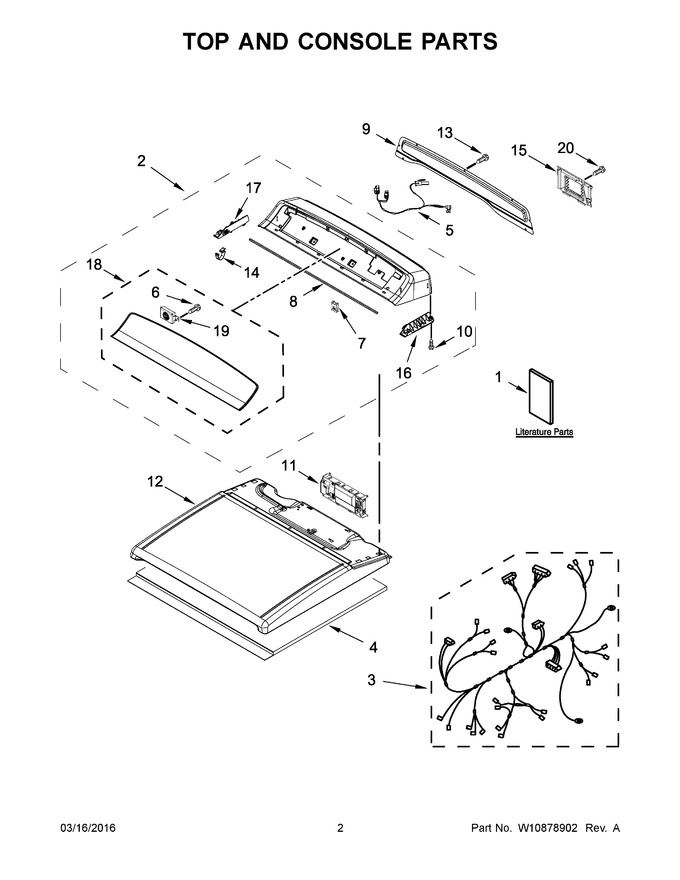

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10779530		Installation Instructions		Appelez-nous	-
2	W10847565		Console Assembly (complete) (chrome Shadow)   (Replaces: W10682654)				$ 681.86
3	W10777444		Wiring Harness		Appelez-nous	-
4	W10123956		Panel, Dampening		Appelez-nous	-
5	W10593673		Harness, User Interface				$ 34.71
6	W10728156		Screw		Appelez-nous	-
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.36
11	WPW10739350		Control, Electronic   (Replaces: W10739350)				$ 267.67
12	W11051477		Top (chrome Shadow)   (Replaces: W10681117)				$ 322.97
13	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
15	W10819767		Cover, Terminal Block   (Replaces: 8317339)		Appelez-nous	-
16	W10631629		Console Mount (right)		Appelez-nous	-
17	W10631630		Console Mount (left)				$ 138.27
18	W10507946		Fascia, Console				$ 353.26
19	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
20	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
1A	W10779528		Guide, Use And Care		Appelez-nous	-
1B	W10777449		Tech Sheet		Appelez-nous	-
1C	W10781582		Quickstart Guide		Appelez-nous	-
1D	W10777446		Wiring Diagram		Appelez-nous	-
