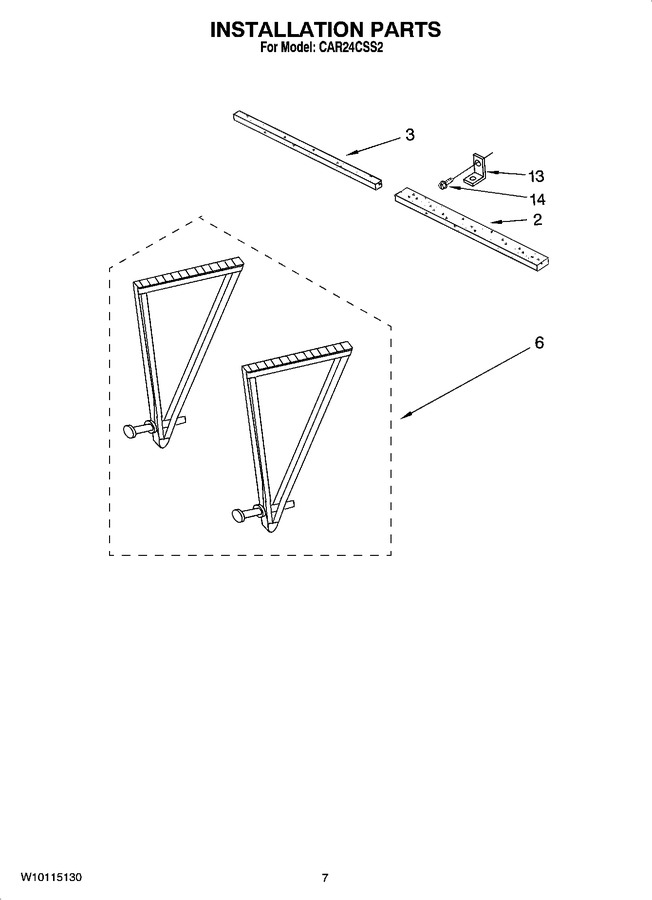

05 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 8209931 | Seal-strip, Wide |
|
- | |||||
| 3 | 8209932 | Seal-strip, Narrow |
|
- | |||||
| 6 | 8215098 | Support, Cabinet |
|
- | |||||
| 13 | 8209930 | Bracket |
|
- | |||||
| 14 | 487371 | Screw (window Lock Bracket) |
|
- |
