SELECT A DIAGRAM

01 - Unit Parts


02 - Airflow And Control Parts


03 - Cabinet Parts


04 - Optional Parts (not Included)


05 - Installation Parts

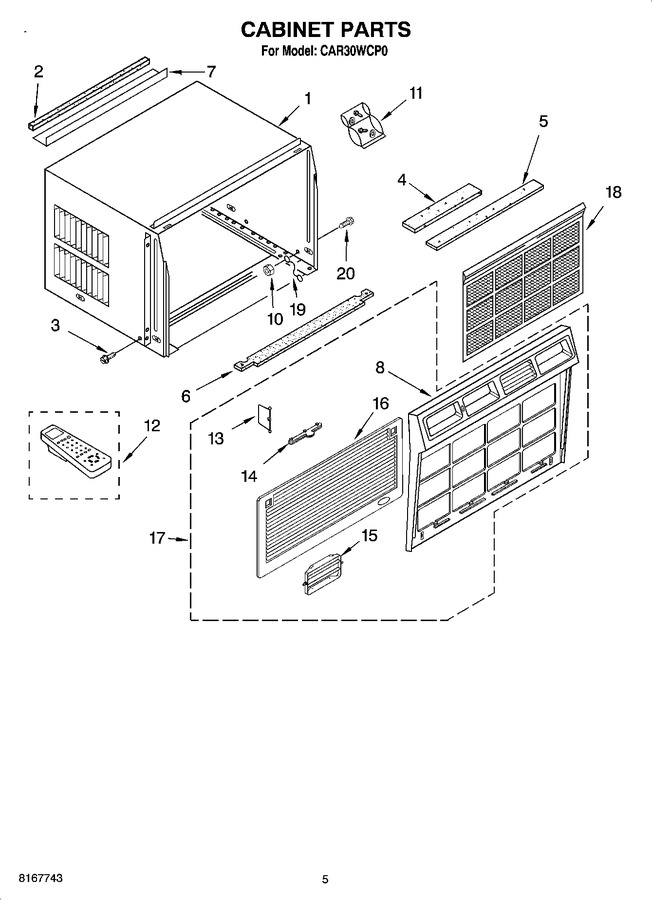

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1185518		Cabinet		Appelez-nous	-
2	469877		Gasket, Meeting Rail		Appelez-nous	-
3	1159222		Screw		Appelez-nous	-
4	1181735		Seal, Front Small		Appelez-nous	-
5	1187359		Seal, Front Large		Appelez-nous	-
6	1160768		Seal		Appelez-nous	-
7	1168490		Angle, Top Mounting		Appelez-nous	-
8	1185650		Frame, Front		Appelez-nous	-
10	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
11	1186155		Bag, Accessory		Appelez-nous	-
12	1186157		Control, Remote				$ 56.44
13	1185541		Louver, Verticle		Appelez-nous	-
14	8011106		Link, Verticle Louver (2)		Appelez-nous	-
15	1185540		Cartridge		Appelez-nous	-
16	1185662		Door, Filter		Appelez-nous	-
17	1185660		Front, Complete		Appelez-nous	-
18	1186979		Filter		Appelez-nous	-
19	1186627		Wire, Ground		Appelez-nous	-
20	WP488234		Screw,8-32x1/4   (Replaces: 488234)				$ 6.37

    View Diagram in Separate Window       Print Part List
