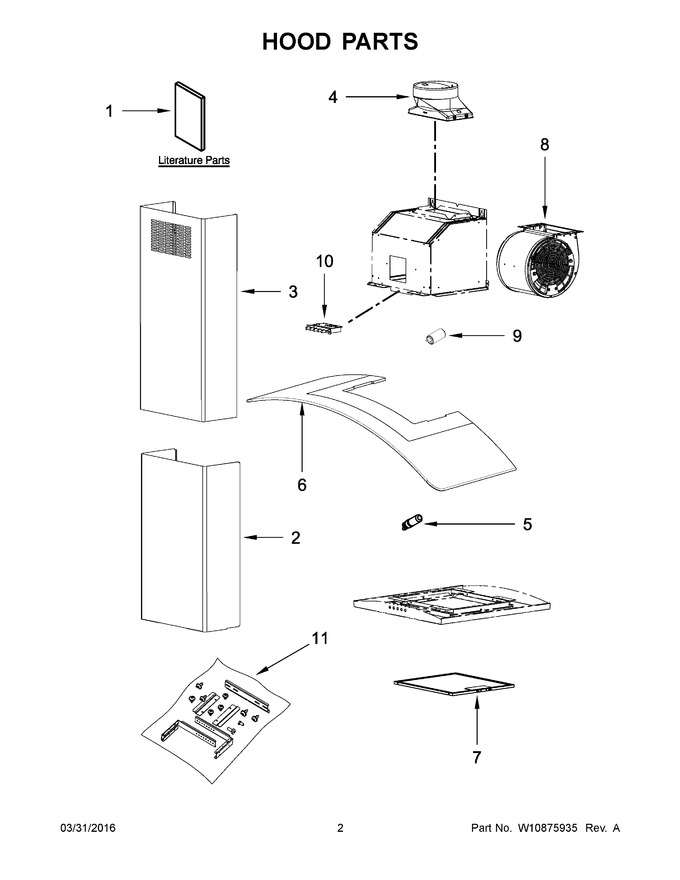

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10526059 | Use And Care Guide |
|
- | |||||
| 2 | W11590865 | Chimney, Upper (Replaces: W10313840) |
|
$ 350.33 | |||||
| 3 | W11590865 | Chimney, Lower (Replaces: W10313839) |
|
$ 350.33 | |||||
| 4 | W10847841 | Damper, Hood (plastic) (Replaces: W10592040) |
|
$ 140.43 | |||||
| 5 | WP8190806 | Bulb, Light 40 Watts (Replaces: 8190806) |
|
$ 70.76 | |||||
| 6 | WPW10313843 | Glass (30") (Replaces: W10313843) |
|
Immediately | $ 304.98 | ||||
| 7 | W10169961A | Filter, Grease (Replaces: W10870878) |
|
Immediately | $ 37.65 | ||||
| 8 | W10875059 | Assembly, Fan (Replaces: W10870880) |
|
$ 525.29 | |||||
| 9 | W11328673 | Capacitor (Replaces: W10735734) |
|
Immediately | $ 59.00 | ||||
| 10 | W10851632 | Control, Electronic |
|
$ 167.25 | |||||
| 11 | W10883786 | Hardware, Installation |
|
- | |||||
| 6A | WPW10313844 | Glass (36") (Replaces: W10313844) |
|
$ 318.10 | |||||
| NI | W11430939 | Accessories, Kit, Recirculation (for Non-vented Installations Only) (Replaces: W10294733) |
|
$ 137.92 | |||||
| NI | W10412939 | Accessories, Kit, Charcoal Filter (for Non-vented Installations Only) |
|
Immediately | $ 66.98 | ||||
| NI | W10294735 | Accessories, Kit, Chimney Extension |
|
$ 824.95 | |||||
| NI | W10446915 | Accessories, Kit, 6" Makeup Air |
|
$ 316.52 |
