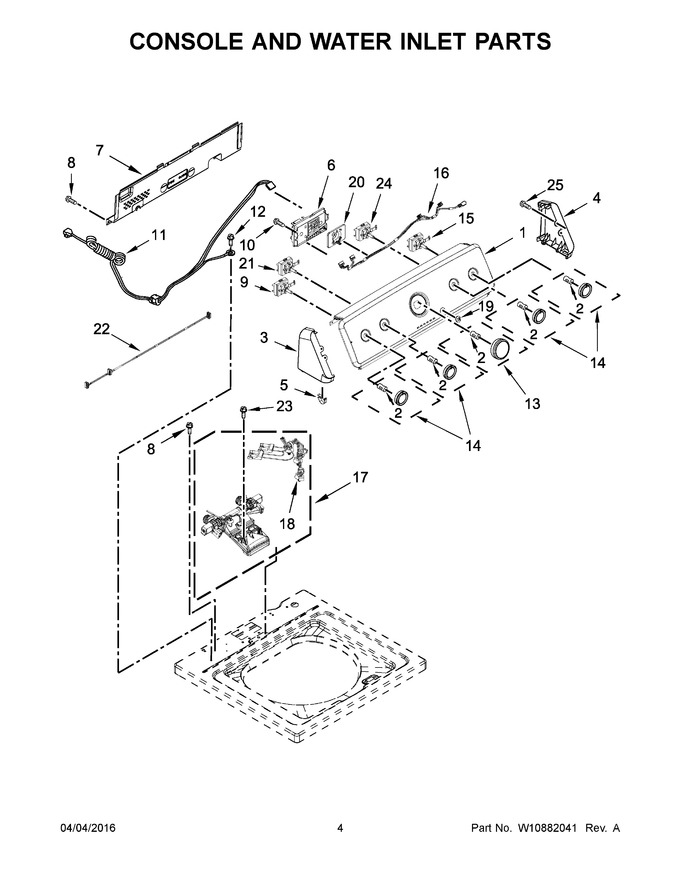

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10909736 | Panel, Console (Replaces: W10877641) |
|
$ 560.03 | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 3 | WPW10193824 | End Cap (l.h.) (white) (Replaces: W10193824) |
|
$ 66.95 | |||||
| 4 | WPW10193821 | End Cap (r.h.) (white) (Replaces: W10193821) |
|
$ 67.25 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 6 | W11116594 | Control Unit Assembly, Machine And Motor (Replaces: W10863406) |
|
Immediately | $ 450.07 | ||||
| 7 | W10641362 | Panel, Console Rear Cover |
|
$ 162.76 | |||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 9 | WPW10285517 | Switch, Rotary Encoder (3 Position) (Replaces: W10285517) |
|
$ 122.27 | |||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 11 | W10877409 | Cord, Power (Replaces: W10737739) |
|
$ 117.00 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 13 | W11837899 | Knob, Timer (grey) (Replaces: W10558463) |
|
Immediately | $ 16.95 | ||||
| 14 | W11837893 | Knob, Control (grey) (Replaces: W10562155) |
|
$ 16.95 | |||||
| 15 | WPW10285511 | Switch, Rotary Encoder (2 Position) (Replaces: W10285511) |
|
Immediately | $ 163.89 | ||||
| 16 | W10694685 | Harness, Upper |
|
$ 171.07 | |||||
| 17 | W11038689 | Inlet Assembly, Water (Replaces: W10776841) |
|
Immediately | $ 127.65 | ||||
| 18 | W10678671 | Harness, Valve |
|
$ 166.83 | |||||
| 19 | W11164083 | Push Button, Start (Replaces: W10584360) |
|
$ 67.38 | |||||
| 20 | W10593638 | Grommet, Push To Start |
|
$ 83.27 | |||||
| 21 | WPW10285518 | Switch, Rotary Encoder (5 Position) (Replaces: W10285518) |
|
Immediately | $ 142.31 | ||||
| 22 | W10694669 | Harness, Jumper |
|
$ 76.59 | |||||
| 23 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 6.80 | ||||
| 24 | WPW10285512 | Switch, Rotary Encoder (4 Position) (Replaces: W10285512) |
|
Immediately | $ 171.42 | ||||
| 25 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 13.28 |
