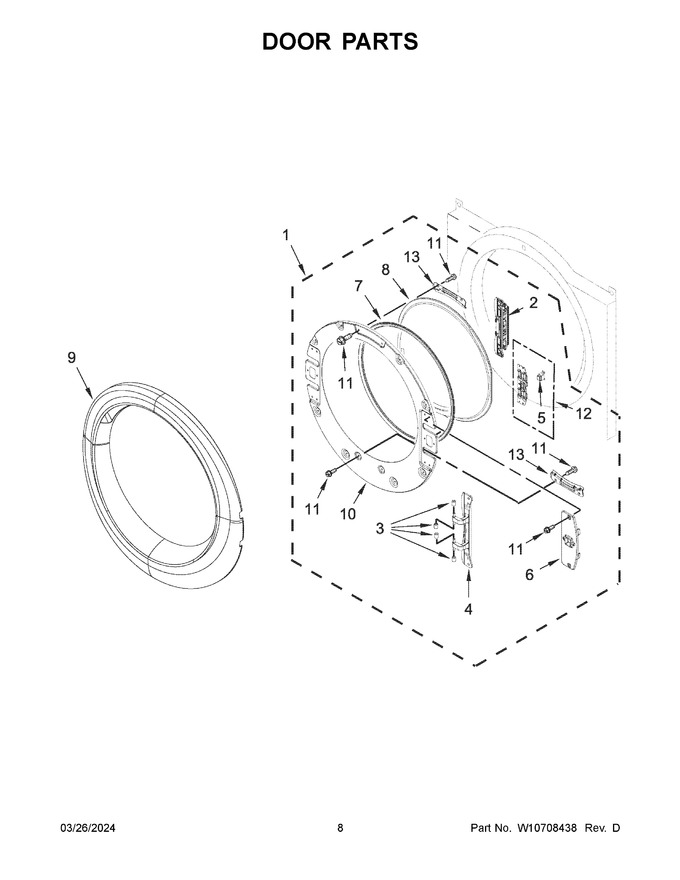

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10811035 | Assembly, Inner Door (white) |
|
$ 125.43 | |||||
| 2 | W11051465 | Assembly, Door Hinge (Replaces: W10208414) |
|
Immediately | $ 100.03 | ||||
| 3 | WPW10208398 | Cap, Hinge (Replaces: W10208398) |
|
Immediately | $ 19.32 | ||||
| 4 | WPW10208415 | Hinge, Base (Replaces: W10208415) |
|
Immediately | $ 119.99 | ||||
| 5 | W11240283 | Assembly, Spring Catch (Replaces: W10208401) |
|
Immediately | $ 25.24 | ||||
| 6 | W10772469 | Cover, Door Catch |
|
$ 76.83 | |||||
| 7 | W11310035 | Seal, Glass (Replaces: W10329710) |
|
Immediately | $ 84.38 | ||||
| 8 | W10823368 | Glass, Door |
|
$ 283.24 | |||||
| 9 | W10772479 | Door Assembly, Outer (Replaces: W10424945) |
|
$ 290.07 | |||||
| 10 | W10424957 | Door, Inner (white) |
|
$ 121.97 | |||||
| 11 | W11661566 | Screw (Replaces: W10288126) |
|
$ 13.26 | |||||
| 12 | WPW10208254 | Assembly, Door Catch (Replaces: W10208254) |
|
$ 76.81 | |||||
| 13 | W10208252 | Bracket, Glass |
|
- |
