SELECT A DIAGRAM

01 - Cover Sheet

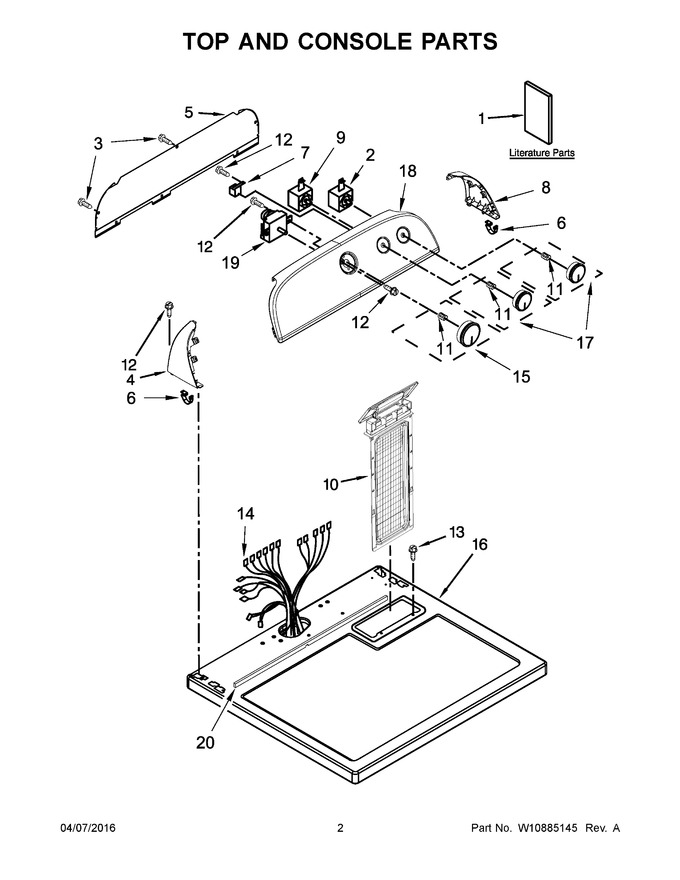

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10562352		Use And Care Guide		Appelez-nous	-
2	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 77.04
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	WPW10520782		End Cap (left) (white)   (Replaces: W10520782)				$ 58.22
5	W10556829		Panel, Rear (console)				$ 257.24
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
8	WPW10520780		End Cap (right) (white)   (Replaces: W10520780)				$ 57.91
9	W11050715		Switch, Temperature   (Replaces: W10661453)			Immediately	$ 10.43
10	W11778253		Lint Screen (white)   (Replaces: W10717210)			Immediately	$ 49.17
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
14	W11734873		Harness, Wiring   (Replaces: W10704069)			Immediately	$ 227.89
15	W11501455		Assembly, Timer Knob (white/metallic)   (Replaces: W10770866)				$ 41.20
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
17	W11176265		Assembly, Timer Knob (white/metallic)   (Replaces: W10770858)				$ 47.16
18	W10860906		Assembly, Panel & Bracket (white)   (Replaces: W10692607)				$ 250.16
19	WPW10185982		Assembly, Timer (60 Hz.)   (Replaces: W10185982)			Immediately	$ 170.80
20	W10316616		Seal, Foam				$ 25.01
1A	W10562360		Installation Instructions		Appelez-nous	-
1B	W10185986		Wiring Diagram		Appelez-nous	-
1C	W10781873		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
