SELECT A DIAGRAM

01 - Cover Sheet

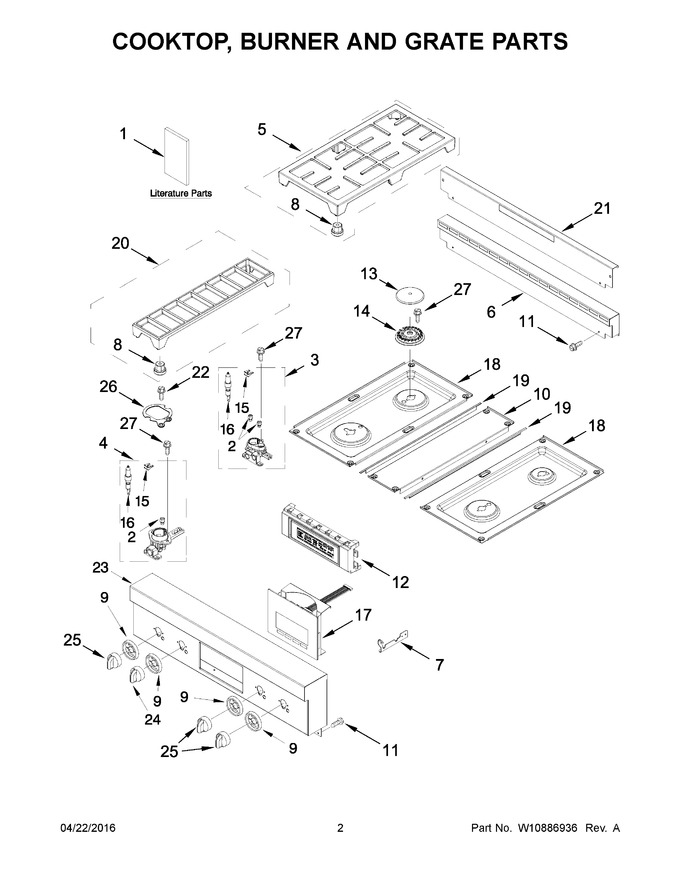

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


04 - Chassis Parts


05 - Oven Parts


06 - Top Venting


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
2	W10340425		Orifice (high) (left Front, High)		Appelez-nous	-
3	W10813979		Assembly, Orifice Holder (left Front)		Appelez-nous	-
4	W10813992		Assembly, Orifice Holder (left Rear & Right Front)		Appelez-nous	-
5	W11344501		Assembly, Grate (black)   (Replaces: W10276551)			Immediately	$ 196.45
6	W10323247		Trim, Island				$ 355.56
7	W10130760		Bracket, Moving Console (left)				$ 68.35
8	9759322		Pad, Grate		Appelez-nous	-
9	W10276494		Bezel, Front				$ 72.38
10	W10189105		Filler, Cooktop		Appelez-nous	-
11	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 13.25
12	W10464535		Assembly, Keypad				$ 1,125.19
13	WPW10256034		Cap, Burner (black (left Front))   (Replaces: W10256034)				$ 124.37
14	W11106799		Spreader, Flame (left Front)   (Replaces: W10495853)			Immediately	$ 87.49
15	W10256046		Spring, Electrode (left Front, Left Rear, Right Front)				$ 10.40
16	W10833887		Electrode, Burner (left Front, Left Rear, Right Front)   (Replaces: W10256047)			Immediately	$ 45.59
17	WPW10145531		Assembly, Power Supply   (Replaces: W10145531)			Immediately	$ 280.13
18	W10352968		Cooktop (black (right))				$ 303.53
19	W10271524		T-strip				$ 191.11
20	W11241675		Grate, Filler   (Replaces: W10276495)				$ 175.28
21	W10323248		Insert, Island Trim				$ 241.20
22	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.80
23	W10789952		Panel, Control				$ 573.45
24	W10145568		Knob, Dual (stainless (left Front))				$ 47.63
25	W10145454		Knob, Single (stainless (all Except Left Front))				$ 42.25
26	8286930		Gasket, Orifice				$ 86.16
27	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.80
13A	WPW10256032		Cap, Burner (black (left Rear & Right Front))   (Replaces: W10256032)			Immediately	$ 79.54
13B	WPW10364463		Cap, Burner (black (right Rear))   (Replaces: W10364463)			Immediately	$ 50.27
14A	WPW10256027		Spreader, Flame (left Rear & Right Front)   (Replaces: W10256027)			Immediately	$ 90.92
14B	WPW10282515		Spreader, Flame (right Rear)   (Replaces: W10282515)			Immediately	$ 134.88
15A	8286863		Spring, Electrode (right Rear)				$ 69.23
16A	W10854967		Electrode, Burner (right Rear)   (Replaces: 8286725)			Immediately	$ 43.54
18A	W10352969		Cooktop (black (left))				$ 302.18
1A	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1B	W10821591		Instructions, Installation		Appelez-nous	-
1C	W10837388		Guide, Use & Care		Appelez-nous	-
1D	W10403308		Sheet, Tech (english)		Appelez-nous	-
1E	W10403309		Sheet, Tech (french)		Appelez-nous	-
2A	W10371246		Orifice (low) (left Front, Low)		Appelez-nous	-
2B	W10371247		Orifice (11k) (left Rear & Right Front)		Appelez-nous	-
2C	W10282664		Orifice (3k) (right Rear)		Appelez-nous	-
4A	W10813995		Assembly, Orifice Holder (right Rear)		Appelez-nous	-
7A	W10130759		Bracket, Moving Console (right)				$ 68.35
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10116168		Harness, Main			Immediately	$ 256.15
NI	W10780278		Harness, Door Lock			Immediately	$ 86.28
NI	W10344051		Harness, Communication				$ 119.99
NI	W10145988		Harness, Switch				$ 151.70
NI	W10363279		Harness, Ignition				$ 75.35
NI	W10624584		Cord, Power				$ 170.61
NI	4450800		Screw, Grounding				$ 12.12
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 53.89
NI	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	W11675299		Tie, Cable   (Replaces: W10368807)				$ 12.18
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	W10856625		Reducer, Stem   (Replaces: W10340850)				$ 170.31
