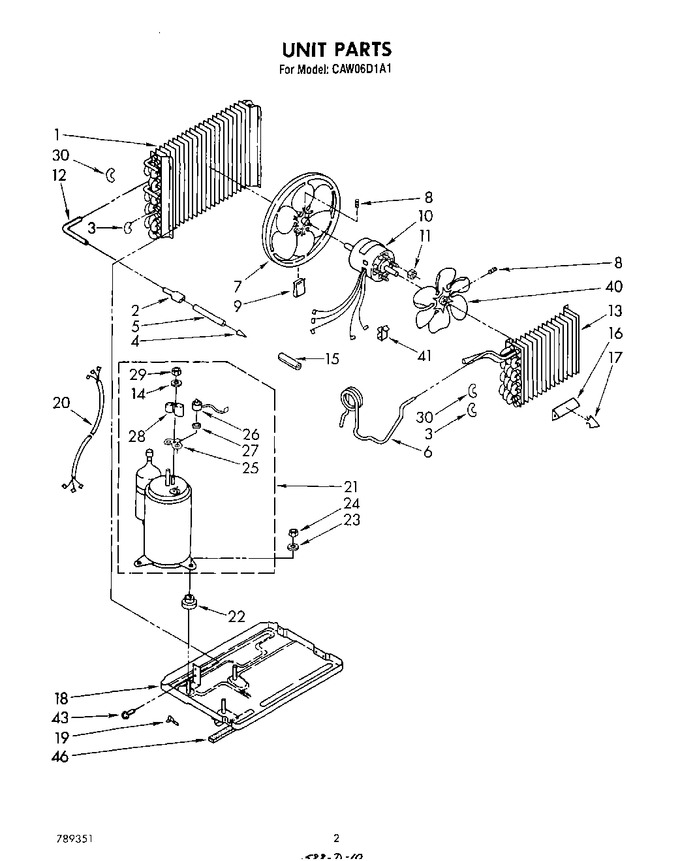

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 951224 | Condenser |
|
- | |||||
| 2 | 947364 | Tube, Flow Divider |
|
- | |||||
| 3 | 855199 | Bend, Return Condenser (15) Evaporator (13) |
|
- | |||||
| 4 | 49599 | Strainer |
|
- | |||||
| 5 | 484230 | Tube & Strainer (includes Illus. 4) |
|
- | |||||
| 6 | 951786 | Tube, Restrictor (length 26.0``) |
|
- | |||||
| 7 | 995387 | Blade, Fan (condenser) |
|
- | |||||
| 8 | 595085 | Setscrew, 5/16 X 1/4 |
|
- | |||||
| 9 | 485334 | Clip, Balancing |
|
- | |||||
| 10 | 951781 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex 8-32 (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | 950814 | Tube, 90~ Connect (1) |
|
- | |||||
| 13 | 951782 | Evaporator |
|
- | |||||
| 14 | 950037 | Gasket, Nut |
|
- | |||||
| 15 | 950253 | Dampener, Split |
|
- | |||||
| 16 | 996773 | Anticipator, Temperature |
|
- | |||||
| 17 | 475577 | Clip, Anticipator |
|
- | |||||
| 18 | 950013 | Base |
|
- | |||||
| 19 | 855930 | Clamp, Restrictor Tube |
|
- | |||||
| 20 | 484136 | Harness, Wiring |
|
- | |||||
| 21 | 876808 | Compressor |
|
- | |||||
| 22 | 950212 | Grommet (3) |
|
- | |||||
| 23 | 489108 | Washer (3) |
|
- | |||||
| 24 | 858122 | Locknut (3) |
|
- | |||||
| 25 | WP950035 | Gasket, Terminal Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 26 | WP1161170 | Overload (Replaces: 951779) |
|
$ 84.72 | |||||
| 27 | 950032 | Spring, Overload |
|
- | |||||
| 28 | WP950036 | Cover, Terminal (Replaces: 950213) |
|
$ 9.83 | |||||
| 29 | WP950027 | Nut, Hex (Replaces: 950027) |
|
$ 5.20 | |||||
| 30 | 854624 | Bend, Return Condenser (2) Evaporator (3) |
|
- | |||||
| 40 | 997889 | Fan, Blade Evaporator |
|
- | |||||
| 41 | 852451 | Clamp, Wiring |
|
- | |||||
| 43 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 43 | 488481 | Screw, Repair |
|
- | |||||
| 46 | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| 46 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| 46 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| 46 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 46 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 46 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 46 | 993191 | Seal, Base (r.s.) |
|
- | |||||
| 46 | 484310 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 46 | 10943 | Oil, Turbine 1 Fl. Oz. |
|
- | |||||
| 46 | 505168 | Tape, No Drip (sweating Tube) |
|
- |
