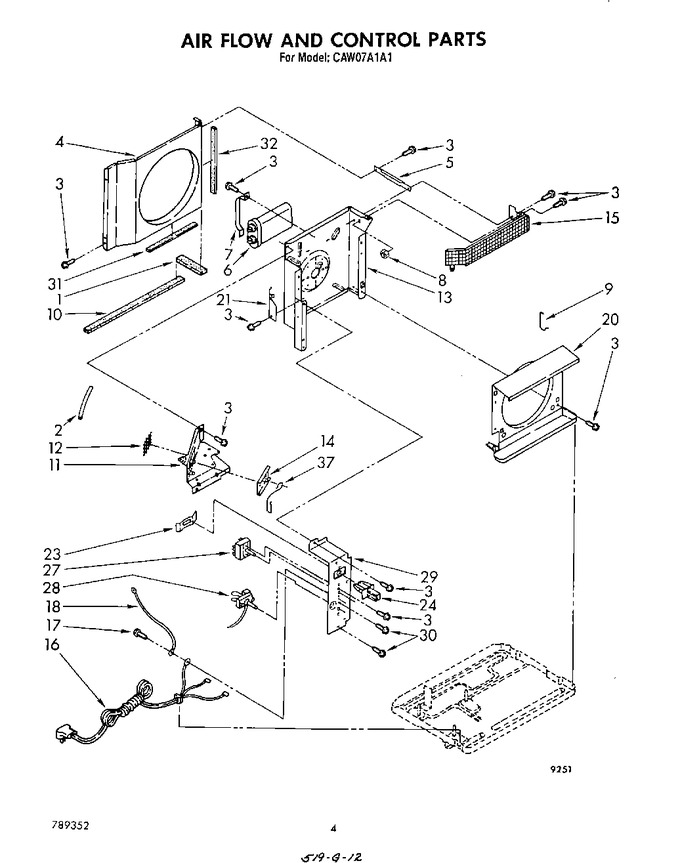

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 646297 | Seal, Condensate |
|
- | |||||
| 2 | 212643 | Sealer, Tube (Replaces: 859934) |
|
Immediately | $ 86.78 | ||||
| 3 | 488481 | Screw, Repair |
|
- | |||||
| 3 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 4 | 646297 | Shroud, Condenser |
|
- | |||||
| 5 | 649879 | Support, Unit |
|
- | |||||
| 6 | 952078 | Capacitor, Running |
|
- | |||||
| 7 | 856105 | Bracket, Capacitor |
|
- | |||||
| 8 | 486288 | Nut, Speed No.8a |
|
- | |||||
| 9 | 477442 | Clip, Shroud |
|
- | |||||
| 10 | 855493 | Seal, Strip |
|
- | |||||
| 11 | 646130 | Extension, Dividing Wall (requires Insulation Part No. 469938) |
|
- | |||||
| 12 | 856929 | Screen, Exhaust Door |
|
- | |||||
| 13 | 859822 | Wall, Dividing Assembly (requires Insulation Part No. 469938) |
|
- | |||||
| 14 | 646134 | Door, Exhaust |
|
- | |||||
| 15 | 996685 | Guard, Evaporator Impeller |
|
- | |||||
| 16 | 646306 | Cord, Appliance |
|
- | |||||
| 17 | WPW10141604 | Screw, St 8-32 X 3/8 (Replaces: 487871) |
|
$ 7.97 | |||||
| 18 | 856094 | Wire, Ground |
|
- | |||||
| 20 | 646123 | Shroud, Evaporator |
|
- | |||||
| 21 | 859955 | Plate, Dividing Wall |
|
- | |||||
| 23 | 853365 | Retainer, Detent Spring |
|
- | |||||
| 24 | 953066 | Actuator, Exhaust Door |
|
- | |||||
| 27 | 950283 | Switch, Rotary |
|
- | |||||
| 28 | 949411 | Control, Temperature |
|
- | |||||
| 29 | 993398 | Panel, Control |
|
- | |||||
| 30 | 488734 | Screw, 6-32 X .175 |
|
- | |||||
| 31 | 859931 | Seal, Condenser |
|
- | |||||
| 32 | 857923 | Seal, Condenser (r.s.) |
|
- | |||||
| 37 | 10943 | Oil, Turbine 1 Fl. Oz. |
|
- | |||||
| 37 | 649939 | Insulation, Cabinet (5/8`` X 25-11/16`` X 13``) |
|
- | |||||
| 37 | WP279368 | Cement, Attach Insulation) (Replaces: 797403) |
|
Immediately | $ 104.81 | ||||
| 37 | 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
|
- | |||||
| 37 | 47261 | Wire, Black (25 Ft.) |
|
- | |||||
| 37 | 47262 | Wire, Red, (25 Ft.) |
|
- | |||||
| 37 | 47263 | Wire, White (25 Ft.) |
|
- | |||||
| 37 | 950255 | Arm, Exhaust Door |
|
- | |||||
| 37 | 505168 | No Drip Tape (sweating Tubes) |
|
- | |||||
| 37 | 212643 | Sealer For Cabinet & Windows (gum Type) (Replaces: 470168) |
|
Immediately | $ 86.78 | ||||
| 37 | 469938 | Insulation, Fiberglass (1/4`` X 24`` X 48``) |
|
- |
