SELECT A DIAGRAM
01 - Section

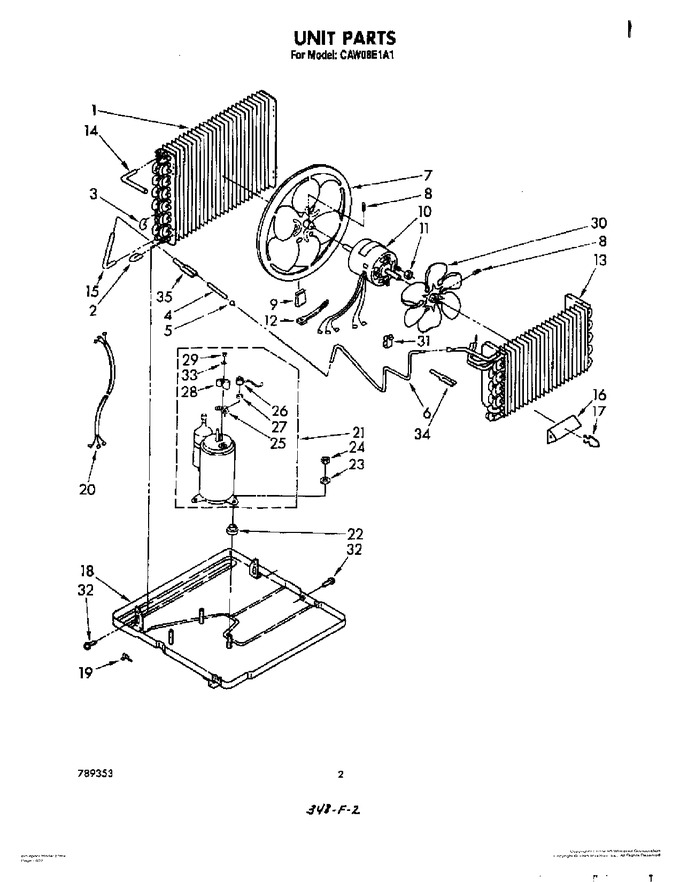

02 - Unit Parts
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 950933 | Condenser |
|
- | |||||
| 2 | 854624 | Bend, Return (7) |
|
- | |||||
| 3 | 855199 | Bend, Return (16) |
|
- | |||||
| 4 | 49599 | Strainer |
|
- | |||||
| 5 | 484230 | Tube & Strainer (includes Illus. 4) |
|
- | |||||
| 6 | 951587 | Tube, Restrictor (length 31.50``) |
|
- | |||||
| 7 | 997904 | Blade, Fan (condenser) |
|
- | |||||
| 8 | 595085 | Setscrew, 5/16 X 1/4 |
|
- | |||||
| 9 | 485334 | Clip, Balancing |
|
- | |||||
| 10 | 951575 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 7.47 | |||||
| 13 | 951586 | Evaporator |
|
- | |||||
| 14 | 858187 | Tube, 90~ Connect |
|
- | |||||
| 15 | 950814 | Tube, 90~ Connect |
|
- | |||||
| 16 | 996773 | Anticipator, Temperature |
|
- | |||||
| 17 | 475577 | Clip, Anticipator |
|
- | |||||
| 18 | 951570 | Base |
|
- | |||||
| 19 | 855930 | Clamp, Restrictor Tube |
|
- | |||||
| 20 | 484136 | Harness, Wiring (compressor Service) |
|
- | |||||
| 21 | 4317916 | Compressor (Replaces: 876923) |
|
- | |||||
| 22 | 950212 | Grommet (3) |
|
- | |||||
| 23 | 489108 | Washer (3) |
|
- | |||||
| 24 | 858122 | Locknut (3) |
|
- | |||||
| 25 | WP950035 | Gasket, Terminal Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 26 | WP1161170 | Overload (Replaces: 951494) |
|
$ 84.72 | |||||
| 27 | 950032 | Spring, Overload |
|
- | |||||
| 28 | WP950036 | Cover, Terminal (Replaces: 950213) |
|
$ 9.83 | |||||
| 29 | WP950027 | Nut, Terminal Cover (Replaces: 950027) |
|
$ 5.20 | |||||
| 30 | 947533 | Blade, Fan (evaporator) |
|
- | |||||
| 31 | 852451 | Clamp, Cable |
|
- | |||||
| 32 | 488481 | Screw, Repair |
|
- | |||||
| 32 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 33 | 950037 | Gasket, Nut |
|
- | |||||
| 34 | 951585 | Tube, Flow Divider |
|
- | |||||
| 35 | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| 35 | 10943 | Oil, Turbine 1 Fl. Oz. |
|
- | |||||
| 35 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| 35 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| 35 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 35 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 35 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 35 | 947364 | Tube, Flow Divider |
|
- | |||||
| 35 | 505168 | No Drip Tape (for Sweating Tubes) |
|
- | |||||
| 35 | 484310 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- |
