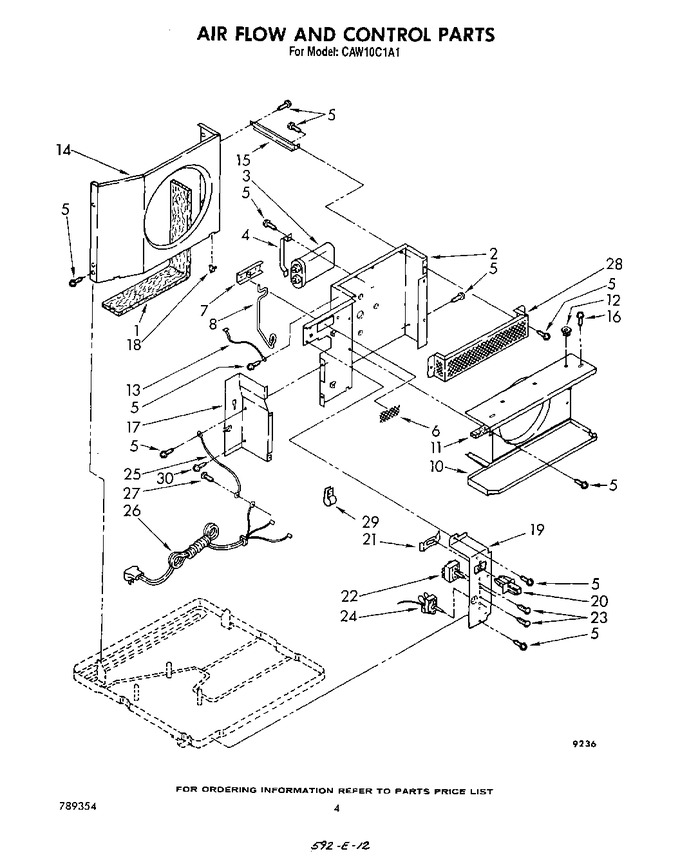

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP854334 | Seal, Condenser Bottom (Replaces: 859600) |
|
$ 12.55 | |||||
| 2 | 951968 | Wall, Dividing (requires Insulation Part No. 469938) |
|
- | |||||
| 3 | 950931 | Capacitor, Running |
|
- | |||||
| 4 | 475844 | Bracket, Running Capacitor |
|
- | |||||
| 5 | WP489069 | Screw, Sm No.8 X 1/2a (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 6 | 856929 | Screen, Exhaust Door |
|
- | |||||
| 7 | 644209 | Door, Exhaust |
|
- | |||||
| 8 | 856042 | Arm, Exhaust Door |
|
- | |||||
| 10 | 948219 | Shroud, Evaporator (includes Illus. 11) |
|
- | |||||
| 11 | 948220 | Insulation, Evaporator Cover |
|
- | |||||
| 12 | 487808 | Fastener, Snap |
|
- | |||||
| 13 | 857568 | Wire, Capacitor Ground |
|
- | |||||
| 14 | 856037 | Shroud, Condenser |
|
- | |||||
| 15 | 858663 | Support, Unit (2) |
|
- | |||||
| 16 | WP488729 | Screw, Sems Sm No.8 X 1/2a (2) (Replaces: 487910) |
|
Immediately | $ 7.45 | ||||
| 17 | 994560 | Extension, Dividing Wall |
|
- | |||||
| 18 | 644401 | Clip, Retainer |
|
- | |||||
| 19 | 996966 | Panel, Control |
|
- | |||||
| 20 | 947468 | Actuator, Exhaust Door |
|
- | |||||
| 21 | 858765 | Retainer, Detent Spring |
|
- | |||||
| 22 | 950283 | Switch, Rotary |
|
- | |||||
| 23 | 488734 | Screw, Machine 6-32 X .175 (4) |
|
- | |||||
| 24 | 949431 | Control, Tempetature |
|
- | |||||
| 25 | 856094 | Wire, Ground |
|
- | |||||
| 26 | 646306 | Cable, Appliance |
|
- | |||||
| 27 | WPW10141604 | Screw, St 8-32 X 3/8 (Replaces: 487871) |
|
$ 7.97 | |||||
| 28 | 856912 | Guard, Evaporator Impeller |
|
- | |||||
| 29 | 948279 | Clip, Wiring |
|
- | |||||
| 30 | 469938 | Insulation, Fiberglass (1/4`` X 24`` X 48``) |
|
- | |||||
| 30 | 488624 | Screw, S.m. No.8 X 3/8a |
|
- | |||||
| 30 | 649939 | Insulation, Cabinet (5/8`` X 13`` X 25-11/16``) |
|
- | |||||
| 30 | 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
|
- | |||||
| 30 | 47261 | Wire, Black (25 Ft.) |
|
- | |||||
| 30 | 47262 | Wire, Red, (25 Ft.) |
|
- | |||||
| 30 | 47263 | Wire, White (25 Ft.) |
|
- | |||||
| 30 | 212643 | Sealer, Gum Type (cabinet & Windows) (Replaces: 470168) |
|
Immediately | $ 86.78 | ||||
| 30 | WP279368 | Cement, Attach Insulation) (Replaces: 797403) |
|
Immediately | $ 104.81 | ||||
| LIT953083 | Guide, Energy |
|
- | ||||||
| LIT789354 | List, Repair Parts |
|
- | ||||||
| LIT953076 | Guide, Use And Care |
|
- | ||||||
| LIT952616 | Sheet, Service Tech (service Information) |
|
- |
