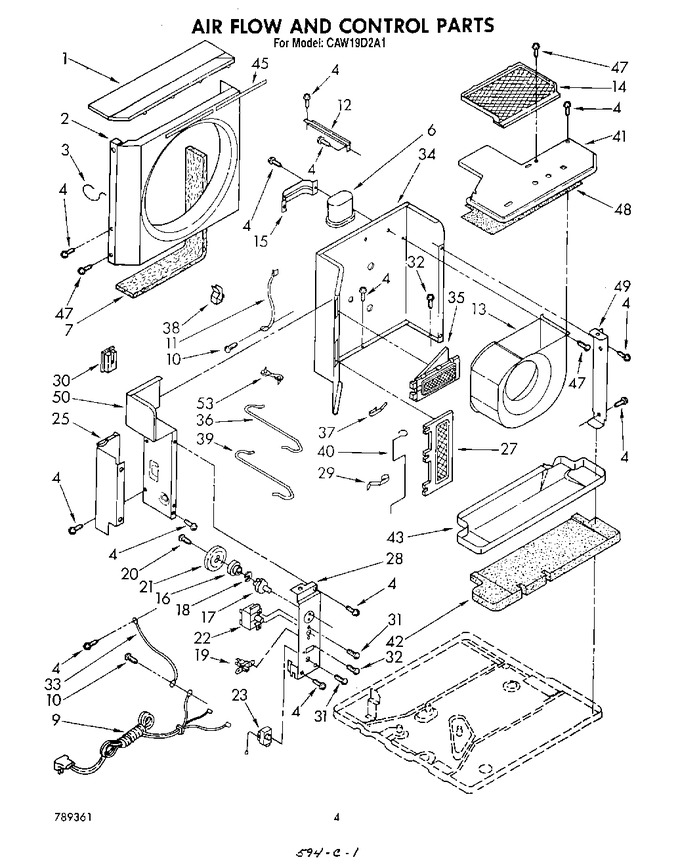

SELECT A DIAGRAM

02 - Unit


03 - Air Flow And Control , Lit/optional


04 - Cabinet


05 - Accessory


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	997264		Cover, Condenser Shroud		Appelez-nous	-
2	953028		Shroud, Condensor		Appelez-nous	-
3	477442		Clip, Shroud (2)		Appelez-nous	-
4	WP489069		Screw, Sm No.8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.56
4	WP308685		Screw (repair) Sm No.10 X 3/8   (Replaces: 488861)			Immediately	$ 7.08
6	952086		Capacitor, Running		Appelez-nous	-
7	948600		Seal, Condenser Fin		Appelez-nous	-
9	648411		Cable, Appliance		Appelez-nous	-
10	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 7.97
11	998177		Wire, Ground		Appelez-nous	-
12	858663		Unit, Support		Appelez-nous	-
13	997220		Housing, Blower Wheel		Appelez-nous	-
14	856506		Guard, Evaporator Impeller		Appelez-nous	-
15	852992		Bracket, Capacitor		Appelez-nous	-
16	647879		Bushing		Appelez-nous	-
17	852669		Shaft, Control		Appelez-nous	-
18	00647881		Spring, Washer   (Replaces: 647881)				$ 366.51
19	950529		Switch, Sliding		Appelez-nous	-
20	WP98165		Screw, 7-18 X 5/8   (Replaces: 489130)				$ 7.71
21	647882		Cam		Appelez-nous	-
22	950522		Switch, Rotary		Appelez-nous	-
23	951072		Control, Temperature		Appelez-nous	-
25	997278		Cover, Control Access		Appelez-nous	-
27	997222		Door Assembly, Fresh Air		Appelez-nous	-
28	950545		Panel, Control		Appelez-nous	-
29	998178		Spring		Appelez-nous	-
30	948519		Seal, Tube		Appelez-nous	-
31	488734		Screw, 6-32 X .175		Appelez-nous	-
32	488624		Screw, Sm No.8 X 3/8		Appelez-nous	-
33	997388		Ground Wire		Appelez-nous	-
34	953030		Wall, Dividing (requires Insulation No. 469938)		Appelez-nous	-
35	997221		Door, Exhaust		Appelez-nous	-
36	859370		Wire, Control (fresh Air)		Appelez-nous	-
37	859369		Spring, Exhaust Door		Appelez-nous	-
38	947072		Clamp, Cable (2)		Appelez-nous	-
39	647883		Wire, Control Exhaust		Appelez-nous	-
40	997223		Actuator, Door		Appelez-nous	-
41	997269		Cover, Evaporator		Appelez-nous	-
42	997237		Insulation, Pan		Appelez-nous	-
43	997238		Pan, Condensate		Appelez-nous	-
45	997266		Seal, Side Condenser		Appelez-nous	-
45	WP854334		Rear   (Replaces: 997267)				$ 12.55
47	WP488729		Screw, Sm No.8 X 1/2a   (Replaces: 487910)			Immediately	$ 7.45
48	948234		Insulation, Evaporator Cover		Appelez-nous	-
49	997239		Adapter, Evaporator Header Plate		Appelez-nous	-
50	997330		Extension Divider Wall		Appelez-nous	-
53	484069		Cover, Winter				$ 62.49
53	47263		Wire, White (25 Ft.)		Appelez-nous	-
53	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
53	813610		Cord, Retainer (winter, Cover)				$ 5.71
53	648791		Clamp, Cable		Appelez-nous	-
53	212643		Sealer, Gum (cabinet & Windows)   (Replaces: 470168)			Immediately	$ 86.78
53	854937		Insulation, Cabinet (rigth Side)		Appelez-nous	-
53	854938		Insulation, Cabinet (left Side)		Appelez-nous	-
53	855438		Insulation, Cabinet (top)		Appelez-nous	-
53	997236		Insulation, Base		Appelez-nous	-
53	WP279368		Adhesive, To Attach Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 104.81
53	47261		Wire, Black (25 Ft.)		Appelez-nous	-
53	47262		Wire, Red, (25 Ft.)		Appelez-nous	-
