SELECT A DIAGRAM

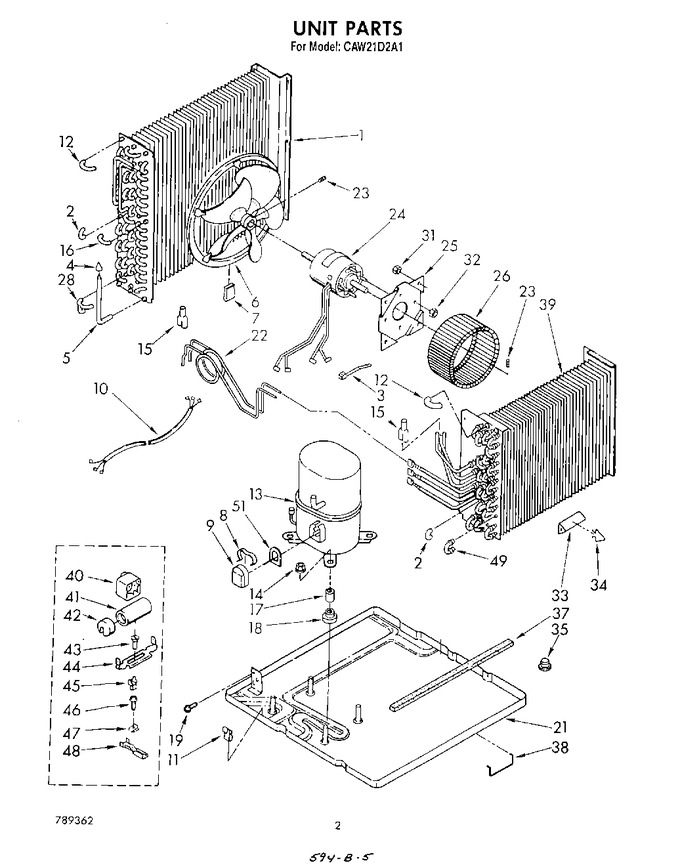

02 - Unit


03 - Air Flow And Control , Lit/optional


04 - Cabinet


05 - Accessory Kit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	948874		Condenser		Appelez-nous	-
2	855199		Bend, Return Condenser (21) Evaporator (22)		Appelez-nous	-
3	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
4	49599		Strainer, Tube		Appelez-nous	-
5	484230		Tube, Outlet (includes Illus. 4)		Appelez-nous	-
6	997226		Blade, Fan		Appelez-nous	-
7	876034		Clip, Balancing		Appelez-nous	-
8	647391		Retainer, Cover		Appelez-nous	-
9	948515		Cover, Terminal		Appelez-nous	-
10	484136		Harness, Wiring		Appelez-nous	-
11	471088		Clamp, Tube (2)		Appelez-nous	-
12	854624		Bend, (return Condenser (3))		Appelez-nous	-
12	998682		Bend,		Appelez-nous	-
13	484441		Compressor		Appelez-nous	-
14	858121		Locknut (4)		Appelez-nous	-
15	466527		Tube, Flow Divider		Appelez-nous	-
16	997669		Bend, Return (12)		Appelez-nous	-
17	858116		Sleeve (4)		Appelez-nous	-
18	475041		Grommet (4)		Appelez-nous	-
19	WP488729		Screw, Sm No.8 X 1/2a   (Replaces: 487910)			Immediately	$ 7.45
21	997202		Base		Appelez-nous	-
22	998147		Tube Restrictor (3) (length 31.75``)		Appelez-nous	-
23	595085		Screw, Set 5/16-24x 1/4		Appelez-nous	-
24	952072		Motor, Fan		Appelez-nous	-
25	998024		Plate, Mounting		Appelez-nous	-
26	647618		Wheel, Blower		Appelez-nous	-
28	948810		Bend, Return (3-way)		Appelez-nous	-
31	858122		Locknut		Appelez-nous	-
32	WP488130		Nut, 8-32   (Replaces: 488130)				$ 6.59
33	996773		Anticipator		Appelez-nous	-
34	949564		Clip		Appelez-nous	-
35	948130		Bushing		Appelez-nous	-
37	853170		Seal		Appelez-nous	-
38	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
39	948499		Evaporator		Appelez-nous	-
40	484363		Xrelay		Appelez-nous	-
41	587164		Xcapacitor		Appelez-nous	-
42	484340		Xcap, Capacitor		Appelez-nous	-
43	487880		Xscrew, Sm No.10 X 5/8 (2)		Appelez-nous	-
44	41629		Xbracket, Capacitor				$ 0.81
45	90564		Multiplier, Terminal		Appelez-nous	-
46	WP965173		Xscrew, 8 X 3/8   (Replaces: 487869)			Immediately	$ 10.68
47	488660		Xnut, Speed   (Replaces: 486197)		Appelez-nous	-
48	45571		Xclip, Terminal (8)		Appelez-nous	-
49	998211		Bend, Return (4)		Appelez-nous	-
51	484220		Valve, Access (start Assist Kit)		Appelez-nous	-
51	978029		Valve, Access ((5/8``) Tube)				$ 93.85
51	978030		Valve, Access ((3/4``) Tube)				$ 123.53
51	484381		Valve, Access (start Kit, Compressor)		Appelez-nous	-
51	WP978025		Valve, Access ((1/4``) Tube)   (Replaces: 978025)			Immediately	$ 99.46
51	947029		Gasket, Terminal Cover		Appelez-nous	-
51	505168		No Drip Tape		Appelez-nous	-
51	10943		Oil, Turbine 1 Fl. Oz.		Appelez-nous	-
51	484310		Epoxy, Aluminum Repair		Appelez-nous	-
51	978026		Valve, Access ((5/16``) Tube)			Immediately	$ 121.04
51	SF5538		Valve, Access ((3/8``) Tube)   (Replaces: 978027)				$ 16.79
51	978028		Valve, Access ((1/2``) Tube)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
