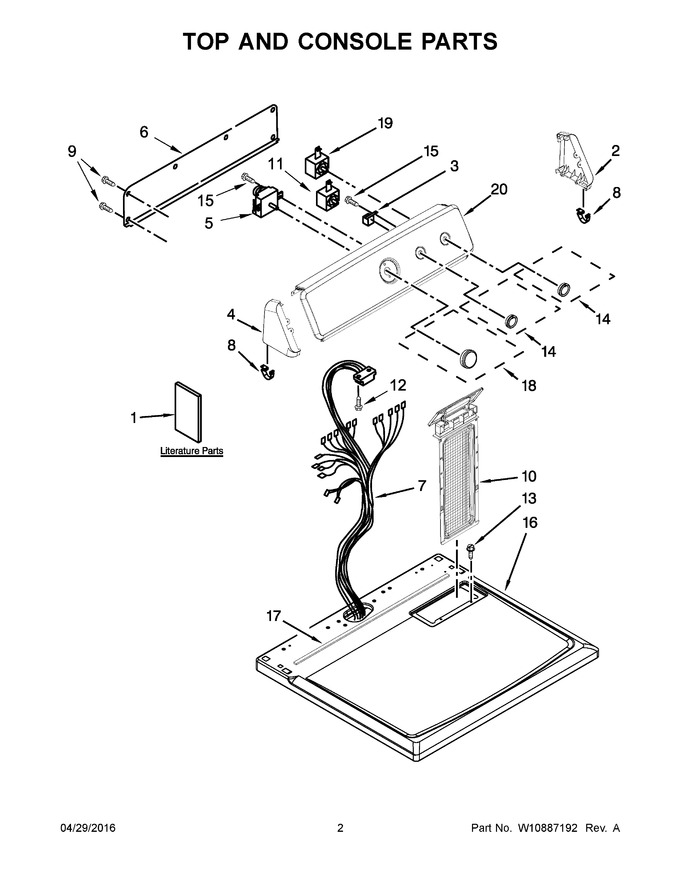

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10562354		Use And Care Guide		Appelez-nous	-
2	WPW10193821		Endcap Assembly, Right Hand (white)   (Replaces: W10193821)				$ 67.25
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
4	WPW10193824		Endcap Assembly, Left Hand (white)   (Replaces: W10193824)				$ 66.95
5	WPW10185981		Assembly, Timer (60 Hz.)   (Replaces: W10185981)			Immediately	$ 311.48
6	W10103406		Panel, Rear (console)				$ 121.78
7	W10865748		Wiring Harness, Main		Appelez-nous	-
8	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
10	W11778253		Lint Screen (white)   (Replaces: W10717210)			Immediately	$ 49.17
11	WP3399639		Switch, Temperature   (Replaces: 3399639)			Immediately	$ 118.04
12	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
14	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 16.95
15	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
17	W10316616		Seal, Foam				$ 25.01
18	W11837899		Assembly, Timer Knob (grey)   (Replaces: W10558463)			Immediately	$ 16.95
19	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 77.04
20	W11027432		Console (white)   (Replaces: W10692611)		Appelez-nous	-
1A	W10562360		Installation Instructions		Appelez-nous	-
1B	W10876312		Wiring Diagram		Appelez-nous	-
