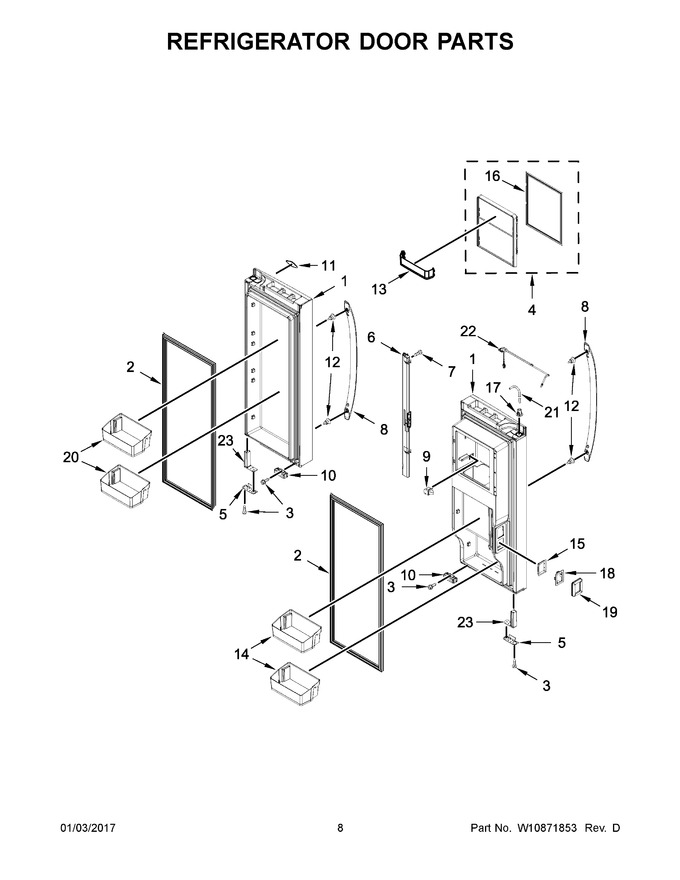

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10770112 | Door, Refrigerator Left Hand (stainless) |
|
- | |||||
| 2 | W10688387 | Gasket, Door (grey) |
|
$ 291.70 | |||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.18 | |||||
| 4 | W11594925 | Assembly, Ice Door (Replaces: W10702031) |
|
$ 152.10 | |||||
| 5 | W11243377 | Bracket, Door Stop (Replaces: W10763415) |
|
Immediately | $ 68.50 | ||||
| 6 | W10720827 | Mullion, Door (grey) |
|
$ 258.90 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 8 | W10899551 | Handle, Door (stainless) (Replaces: W10713676) |
|
Immediately | $ 169.94 | ||||
| 9 | W11123943 | Switch, Rocker Arm (Replaces: W10656772) |
|
$ 32.99 | |||||
| 10 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 21.02 | ||||
| 11 | WPW10393265 | Nameplate (grey) (Replaces: W10393265) |
|
Immediately | $ 70.71 | ||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 13 | W11188797 | Trivet, Ice Compartment Door (Replaces: W10697307) |
|
$ 95.18 | |||||
| 14 | W11162079 | Bin, Door (gallon) (Replaces: W10697276) |
|
$ 157.17 | |||||
| 15 | W10720065 | Retainer, Door Duct |
|
$ 47.67 | |||||
| 16 | W11625084 | Gasket, Ice Door (Replaces: W10853439) |
|
$ 61.86 | |||||
| 17 | W10562834 | Clip, Tube (Replaces: W10245516) |
|
$ 14.09 | |||||
| 18 | W10720069 | Gasket, Snap-in Cooling |
|
$ 90.90 | |||||
| 19 | W10720073 | Gasket, Cooling Duct |
|
$ 48.90 | |||||
| 20 | W11161884 | Bin, Door (gallon) (Replaces: W10684351) |
|
$ 149.54 | |||||
| 21 | W10883963 | Tube, Dispenser Water |
|
- | |||||
| 22 | W11223012 | Assembly, Fill Tube (icemaker) (Replaces: W10699895) |
|
$ 117.24 | |||||
| 23 | W11179355 | Closer, Door (left Hand) (Replaces: W10872968) |
|
$ 23.45 | |||||
| 14A | W11199486 | Bin, Door (gallon, Half) (Replaces: W10697284) |
|
$ 115.73 | |||||
| 1A | W10799332 | Door, Refrigerator Right Hand (stainless) |
|
- | |||||
| 20A | W11213874 | Bin, Door (gallon, Half) (Replaces: W10697272) |
|
$ 158.97 | |||||
| 23A | W11189598 | Closer, Door (right Hand) (Replaces: W10872969) |
|
$ 23.45 |
